-- Made of strong stainless steel for great durability and hygiene. -- This model of egg washer is a combination of 3 single-row egg washers with a capacity of 30,000 eggs/hour. -- It can satisfy any egg cleaning and drying requirements well. -- Includes the egg accumulating, candling, orientating, sanitizing, washing, drying functions all in one, it also has the optional automatic egg loader, egg printer and manual collection conveyor (UV included) function. -- Eggs are automatically loaded onto the roller of egg accumulator via the Zenyer 615 automatic egg loader, 30 eggs at a time.
-- The eggs are then transported to the 6-row candling section. You can check for any cracked, dirty or otherwise unqualified eggs through the LED light by sight and manually take them out. There is also a candling cover and mirror for better candling results. -- After the candling booth, the orientatorwill direct 6 lines of eggs into 3 single lines and transport them to the 3 single-row egg washers.
-- The proportional doser sprays sanitizer or detergent (customer provides chemicals) onto eggs automatically for food security purpose. -- The eggs will be cleaned by brushes and warm water(a water heater isn't included in the price, consult one of our representatives if needed). -- Water on the eggs will be swept off by the brushes, meanwhile the eggs themselves are dried by the drying system. The drying result can reach up to 99% depending on the environment humidity. -- Ideally, connect with the Zenyer 109 egg graderto assemble a Zenyer 304A egg processing linewith a capacity of 30,000 eggs/hour.
Egg washer
Model
ZYX-JS3-3-(P)
Product code
204A
Capacity
30,000 eggs/hour
Power*
32.75 KW
Voltage*
380-415V, 3-phase, 50HZ
Dimension(L* W* H)
12.8*4.4*2 M
Net weight*
2170 kg
Gross weight*
3100 kg
Function
Egg accumulating, candling, orientating sanitizing, washing, drying and optional automatic egg loader, egg printer and manual collection conveyor (UV included)
* Power, net weight and gross weight are calculated according to the floor plan below.
ZENYER 204A egg washer with 615 auto loader Floor plan The 615 auto loader paired with the 204A egg washer Automatic loading and orientating Candling Proportional doser for sanitizingEgg washing with brushes and warm water Remarkable Drying system UV sterilization (optional) The Zenyer 615 Auto egg loader (optional) Manual collection conveyor (optional) Zenyer 401H egg printer (optional)

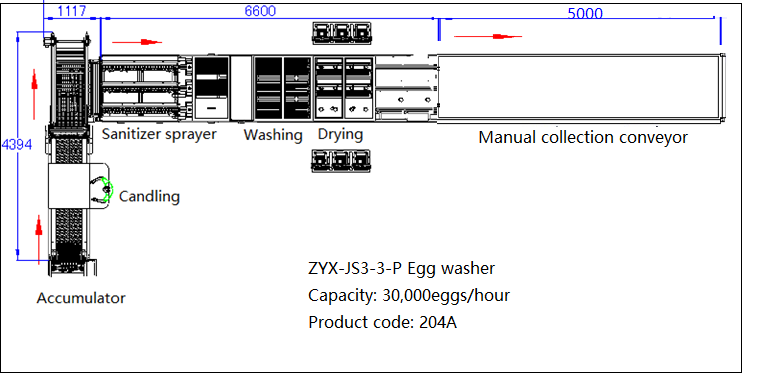

Floor plan
The 615 auto loader paired with the 204A egg washer
Automatic loading and orientating
Candling
Proportional doser for sanitizing
Egg washing with brushes and warm water
Remarkable Drying system
UV sterilization (optional)
The Zenyer 615 Auto egg loader (optional)

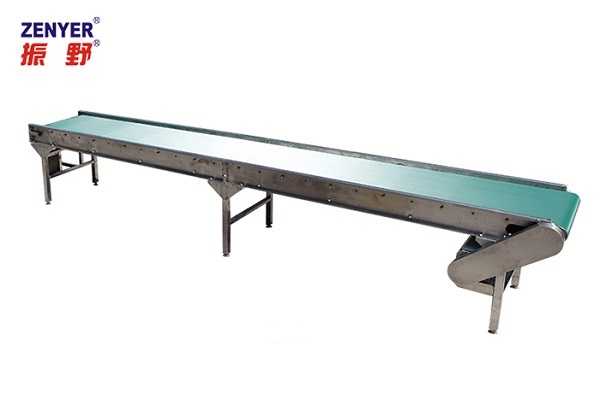

Manual collection conveyor (optional)
Zenyer 401H egg printer (optional)
