Function： Accumulating, candling, grading and automatic packing
Details
Features:
-- Made of strong stainless steel for great durability and hygiene.
-- Includes egg accumulating, candling, orientation, grading & counting, auto packing and manual packing functions all in one machine with a capacity of 30,000 eggs/hour.
-- Feature a color touchscreen and PLC control system with self-diagnosis function.
-- Eggs are transported to the candling section. You can check for any cracked, dirty or otherwise unqualified eggs through LED lights by sight, and remove them manually. There is also a candling cover and mirror for better candling results. -- The optional UV sterilization sanitizes the egg shell for maximum food security. -- Orientation makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-- Eggs are weighed electronically and graded into 4~7 sizes with an accuracy of within ±1g.
-- It has a counting function, you can check how many eggs of each grade and total output have been processed.
-- There are 4 auto-packers shown on the floor plan, you can choose to add more auto packers according to your situation.
-- Empty cartons/trays needs to be loaded onto the empty tray conveyor manually, the conveyor will transport the cartons/trays to where the eggs will drop from.
-- The auto packer supports 10, 12, 15, 18, and 30 egg cartons/trays. -- Aside from the sizes of eggs that are managed by auto packing, the other grades of eggs will drop off onto the off-grade table, the table can be split into 2~3 sections to accommodate 2~3 egg sizes if needed. -- Ideally, pair with the Zenyer 615 automatic egg loader for egg loading, making egg loading easier and more efficient as eggs will be loaded onto the roller of egg grader automatically. -- Can connect with the Zenyer 204A egg washer to assemble a Zenyer 304A egg washing grading line with a capacity of 30,000 eggs/hour.
Name
Egg grader
Product code
109
Model
ZYF-HDS6-4Z
Capacity
30,000 eggs/hour
Material
Stainless steel
Accuracy
±1g
Grade
5~6
Power*
6.65 KW
Voltage
220~240V, single phase, 50HZ
Or
380-415V,3-phase,50HZ
Dimension (L*W*H)
7.7*8.3*2 M
Net weight*
3060 KG
Gross weight*
4280 KG
Function
Egg accumulating, candling & orientation, grading & counting and auto-packing, and optional UV sterilization, egg printer, automatic egg loader and visual AI egg detector
* Power, net weight and gross weight are calculated according to the floor plan below.
Zenyer 109 egg grader (4 auto packers)- Rear view Zenyer 109 egg grader (4 auto packers)- Front view Floor plan (4 auto packers) - Right hand side Floor plan (4 auto packers) - Left hand side Zenyer 615 auto loader compatible with the 109 egg grader Floor plan (Zenyer 615 auto loader compatible with the 109 egg grader) Accumulator Orientation UV sterilization (optional) 6-row candling Grading Manual empty tray loading Auto empty tray de-nesting (optional) Automatic packing Loaded egg tray collection Off-grade table Visual AI detector (optional) Egg printer (optional) The Zenyer 615 automatic egg loader (optional) Control panel

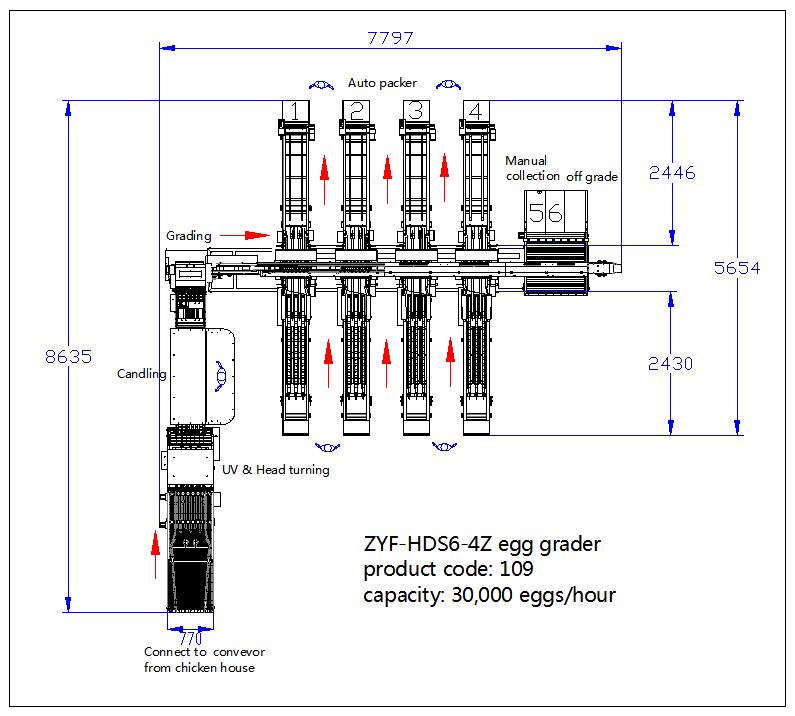

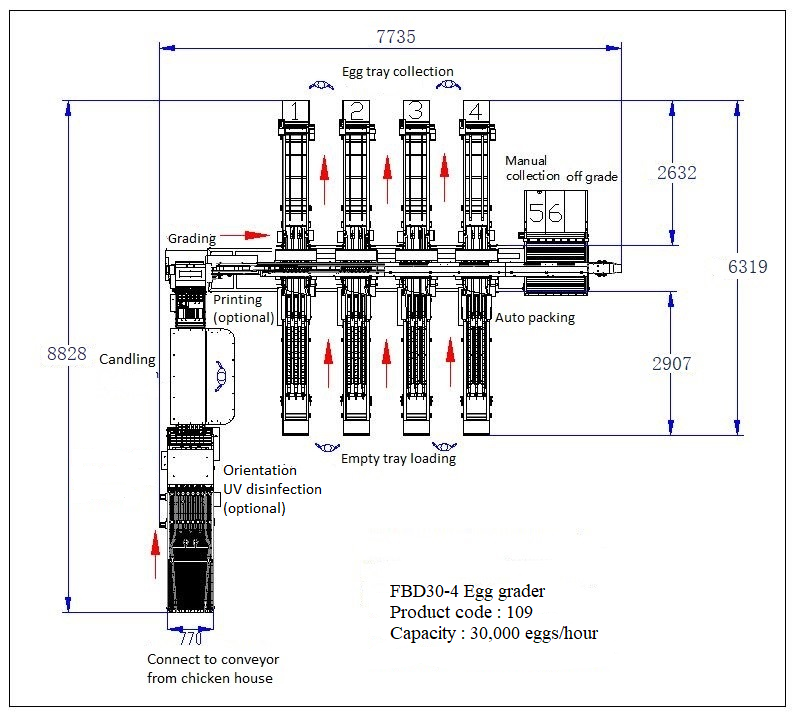

Floor plan (4 auto packers) - Right hand side

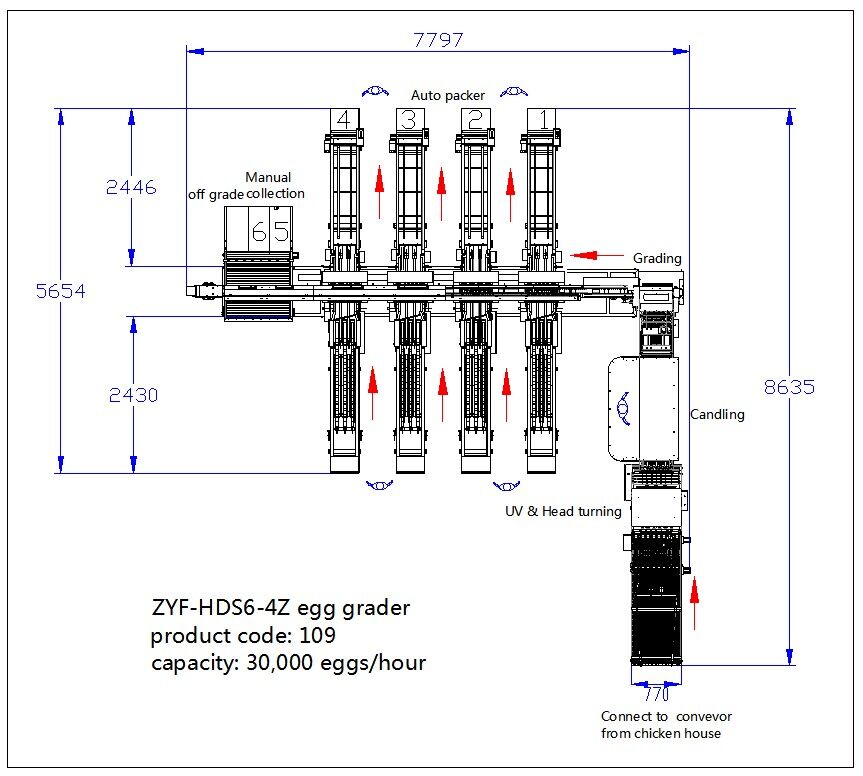

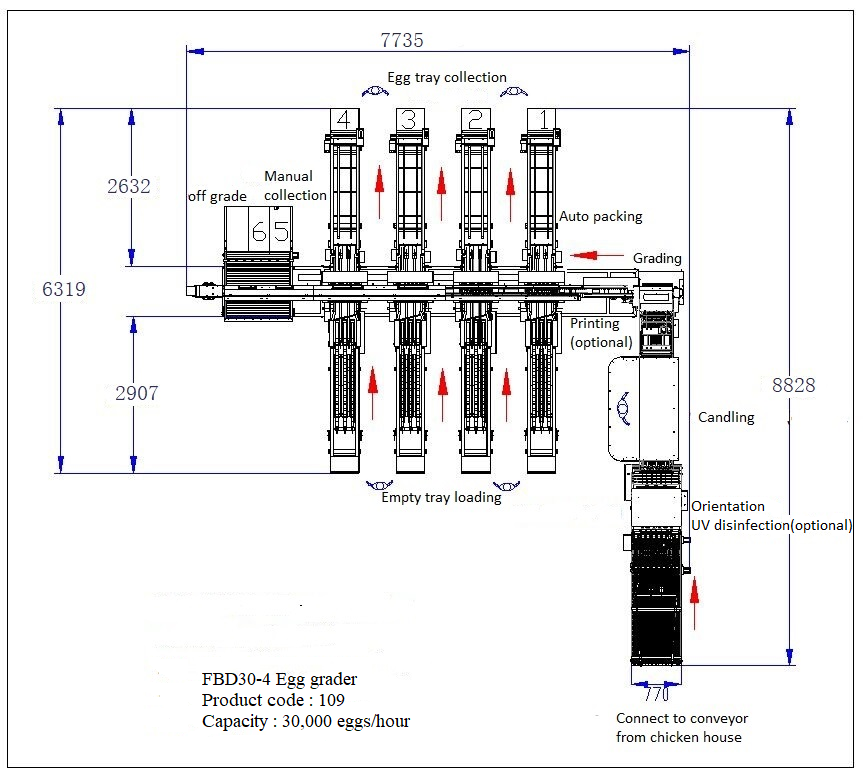

Floor plan (4 auto packers) - Left hand side
Zenyer 615 auto loader compatible with the 109 egg graderfloor plan.png)

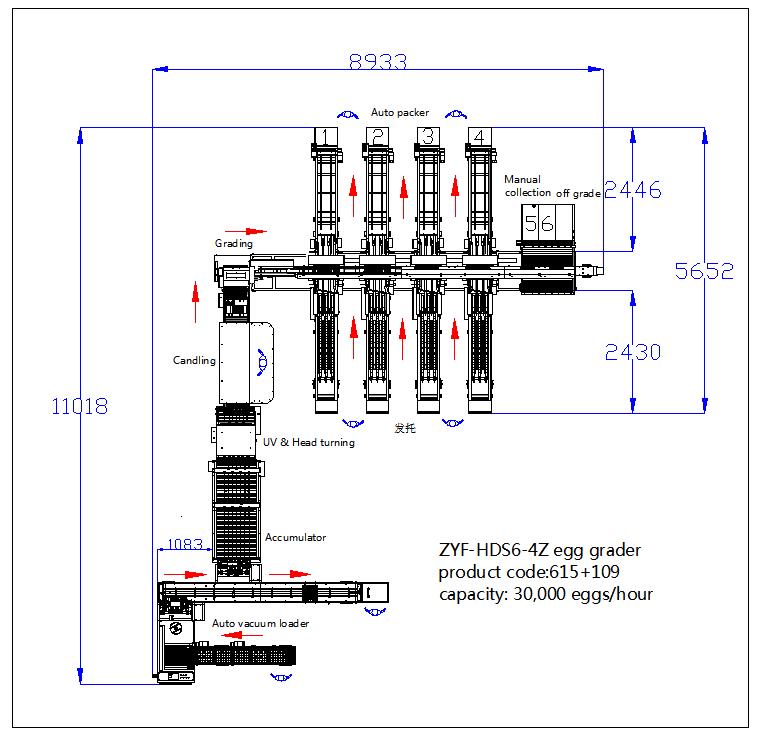

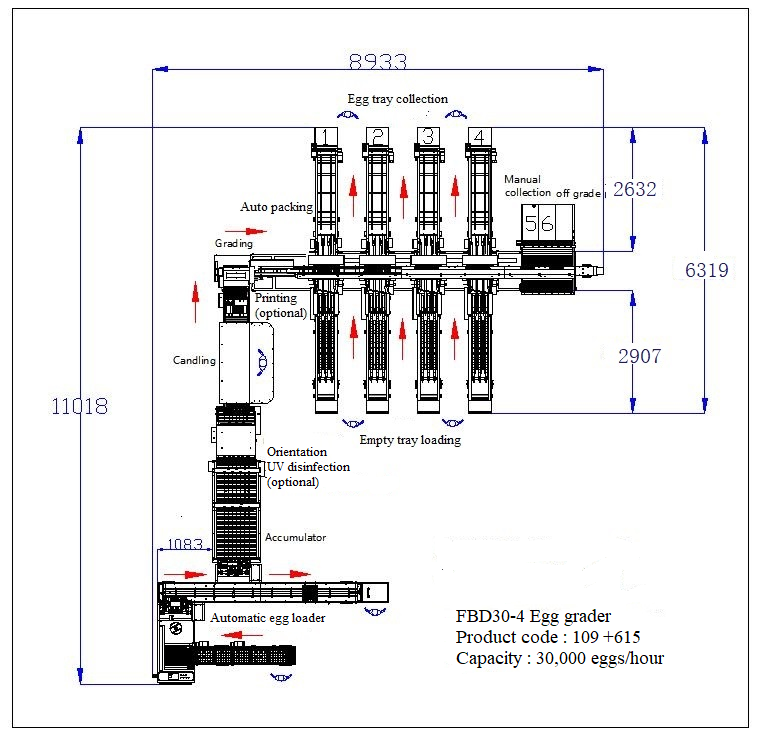

Floor plan (Zenyer 615 auto loader compatible with the 109 egg grader)
Accumulator
Orientation
UV sterilization (optional)
6-row candling
Grading

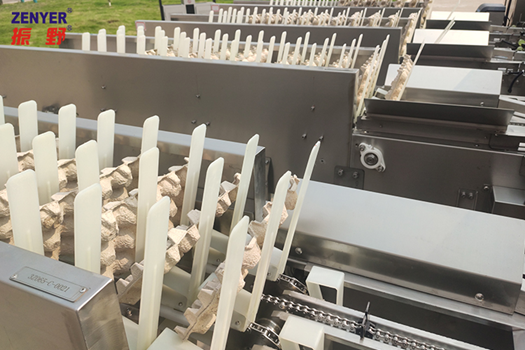

Manual empty tray loading

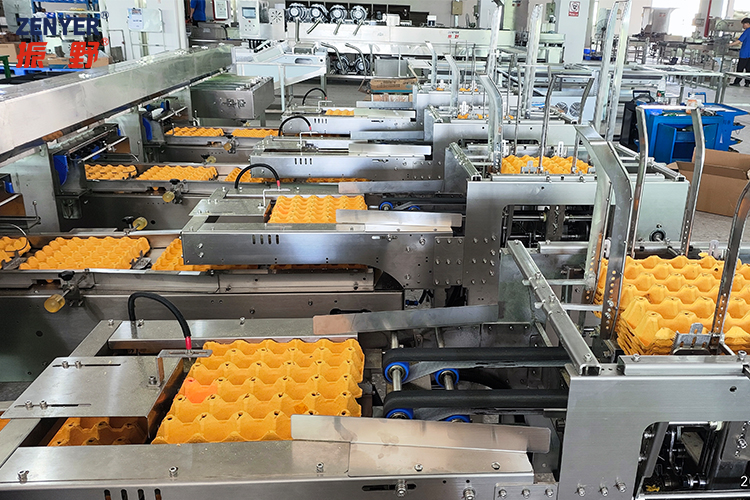

Auto empty tray de-nesting (optional)

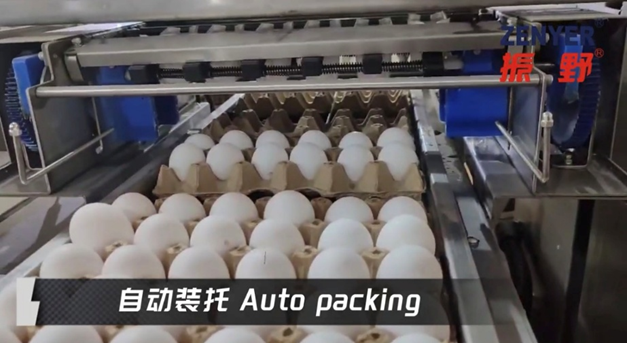

Automatic packing
Loaded egg tray collection
Off-grade table
Visual AI detector (optional)
Egg printer (optional)
The Zenyer 615 automatic egg loader (optional)
Control panel
