Tray Washer/Dryer

Name:ZYX-DT-2400 plastic egg tray washer(202T)

Product Code: 202T

Capacity: 2400 trays/hour

Function: Automatic tray de-nesting, sanitizing, washing & rinsing, drying and automatic tray nesting



Details



Features:

-- Made of strong stainless steel for great durability and hygiene.
-- This model of tray washer is a 2-operation channel combination, each channel has automatic egg tray de-stacking, sanitizing, washing & rinsing, drying and automatic egg tray stacking functions. Can reach up to a capacity of 2,400 egg trays/hour.

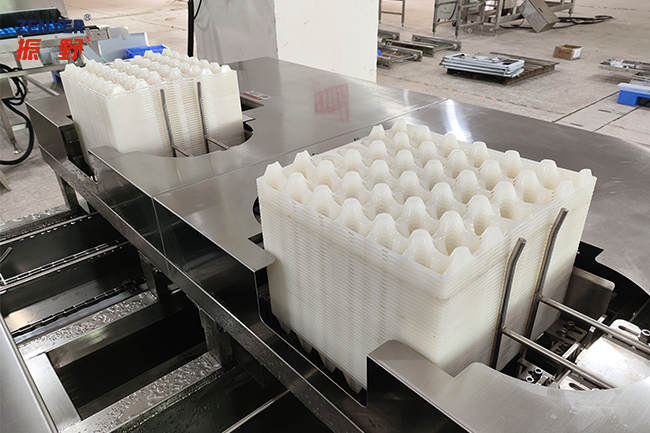

-- You can put a stack of plastic egg trays into the de-stacking device manually, the device will de-stack the trays automatically, and the main conveyor of the machine will send them to the next process.

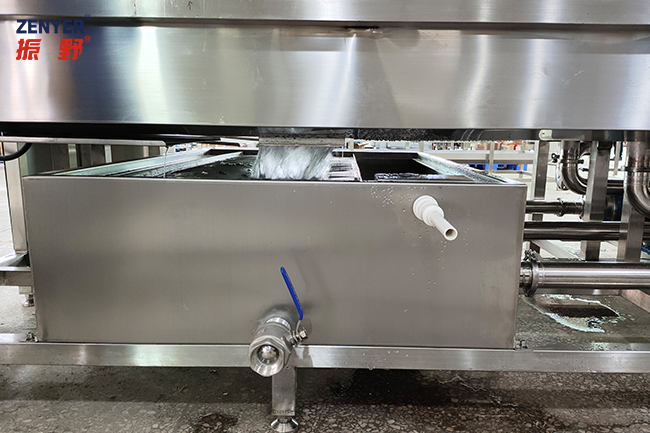

-- The machine has 2 water tanks, water tank 1 is for egg tray washing and sanitizing,  you can add sanitizer or disinfectant (follow the food authority requirements in your area) into the water tank to ensure the egg tray washing meet all rules and standards.
-- The water that is used to wash trays is recycled and used again, there's a filter above the tank that filter impurities to improve recycled water quality.

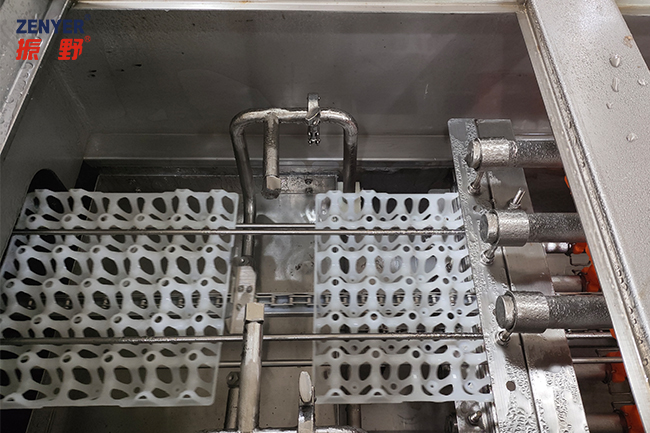

-- Plastic egg trays will be rinsed with city water (fresh water). The used water will flow down to water tank 2 and drain out through the drain pipe, it will not be recycled.

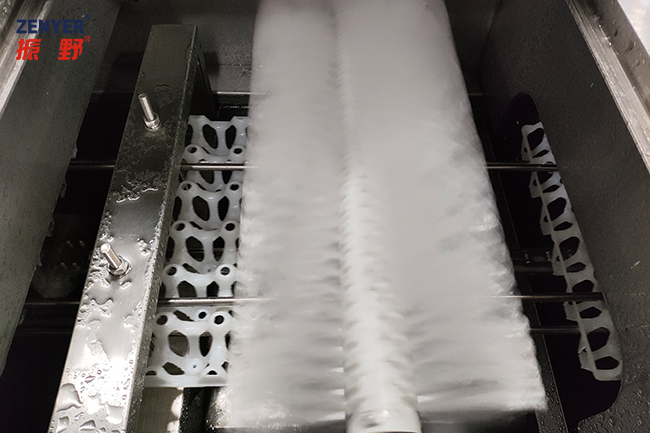

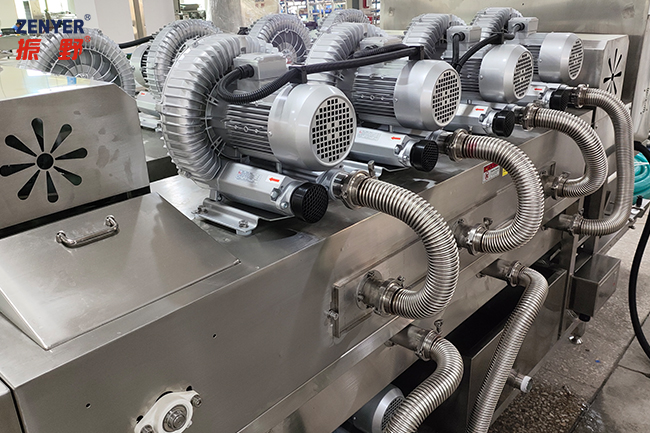

-- Water on the plastic egg trays will be swept off by brushes, while the remaining water on the tray will be blown off by the drying fan system. Each channel has 3
 drying fans that blow from below the trays, and 3 other drying fans that blow from on top of the trays. The machine has 12 drying fans in total. Each channle has a brush at the drying section to remove excess water from the top of the trays for better drying results and efficiency. Water from the drying section will fall into water tank 2.
-- The washed & dried plastic egg tray will be stacked automatically at the end of the machine, which greatly saves your time.

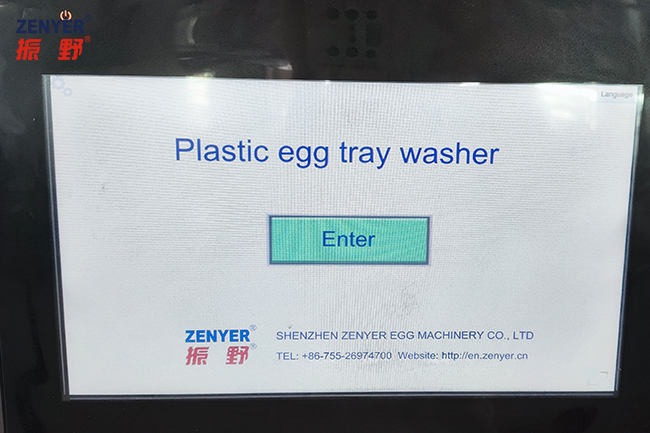

-- The machine has a control panel with a color touchscreen and physical buttons, all the functions can be controlled through the buttons on it.
Name Plastic egg tray washer
Product code 202T
Model ZYX-DT-2400
Capacity Up to 2400 trays/hour
Speed Adjustable
Power 33.4 KW(excluded air compressor)
Voltage 380-415V, 3-phase, 50HZ
Main material Stainless steel
People One
Dimension (L*W*H) 7.1*1.6*1.6 M
Net weight* 1000 KG
Gross weight* 1400 KG
Function Automatic tray de-stacking, sanitizing, washing & rinsing, drying and automatic tray stacking
* Net weight and gross weight are for your reference only.
Zenyer 202T plastic egg tray washer

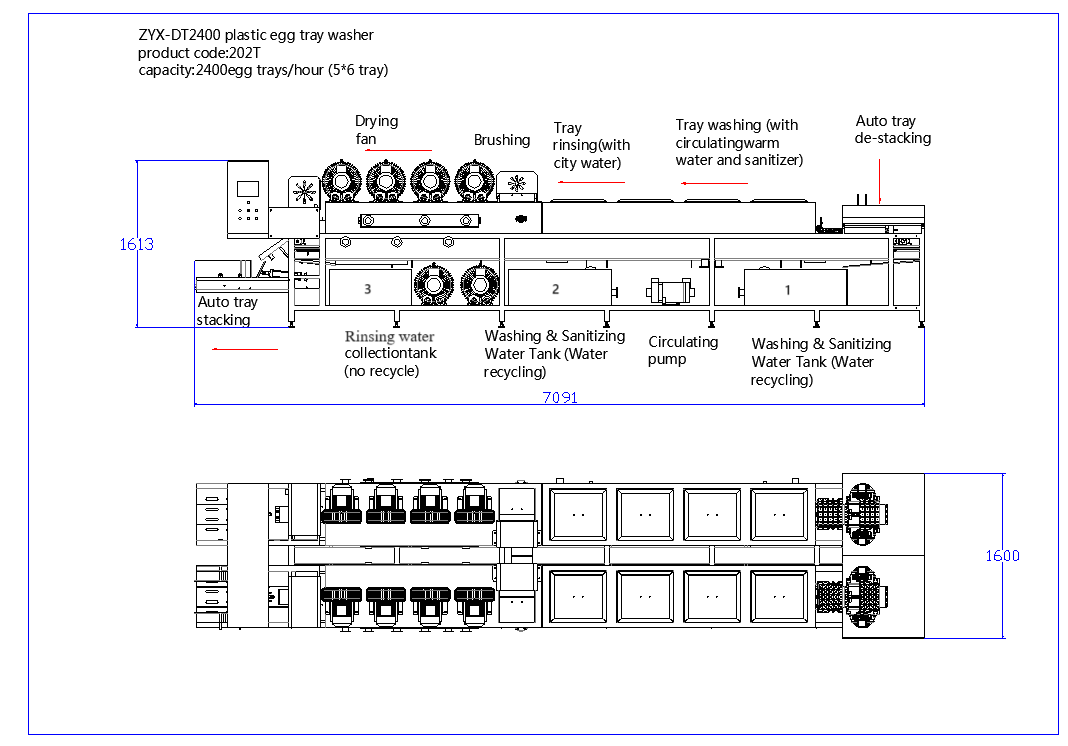

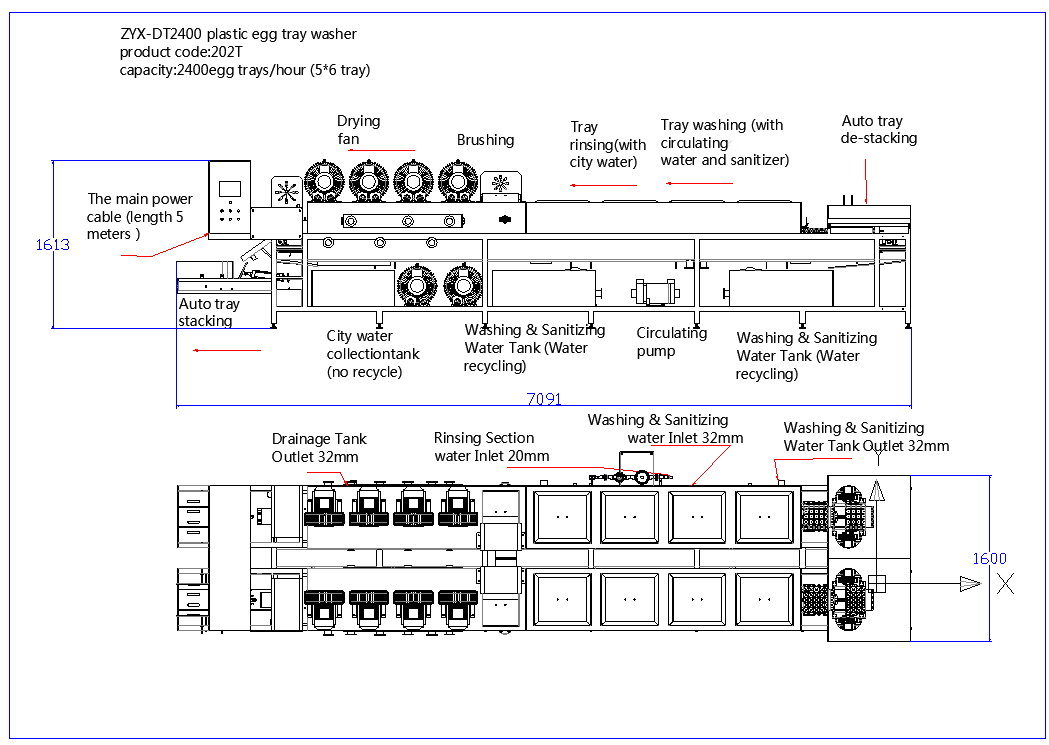

Floor plan

Automatic tray de-nesting

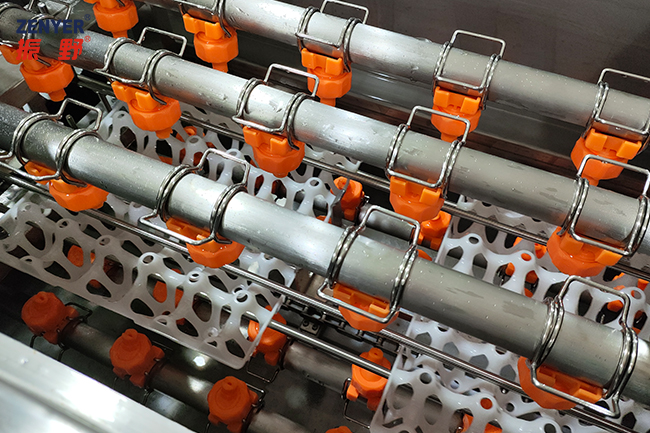

High pressure water for tray washingWater tank for Washing and SanitizingTray rinsing

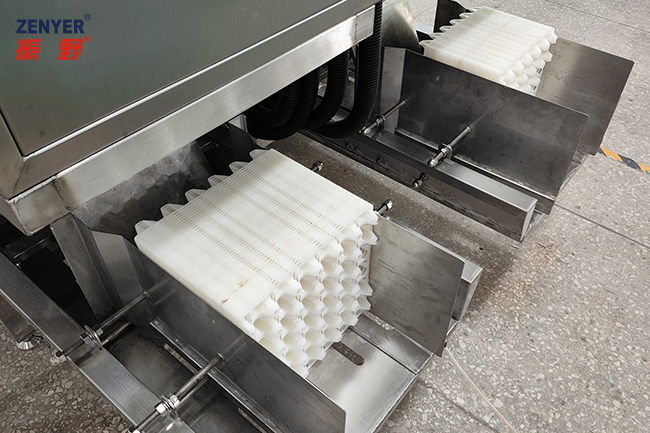

Brush and drying fans for tray dryingAutomatic tray nestingControl panel


Price of the Zenyer 202T plastic egg tray washer: $89,100.00

Price including GST



(Pre-order)





ZYX-DT-2400 plastic egg tray washer(202T) Brochure
