Name: ZYX-DT-1200 Plastic Tray Washer (201T)

Product Code: 201T

Capacity: 1200 trays/hour

Function: De-nesting, sanitizing, washing, rinsing, brushing, drying and nesting

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more

Details

ZENYER 201T Tray Washer – Features & Benefits

• Durable Stainless Steel Construction
  Built with strong stainless steel for excellent durability, hygiene, and compliance with food safety standards, making it ideal for commercial egg tray cleaning.

• Fully Automated Tray Washing Process
  Combines automatic tray denesting, sanitizing, washing & rinsing, brushing, drying, and tray nesting into one streamlined process with a maximum capacity of 1,200 egg trays per hour.

• Efficient Tray Handling

  • Simply place a stack of plastic egg trays into the automatic denester, which separates them one by one and sends them along the conveyor.

  • After washing and drying, the trays are automatically nested again at the end of the process, saving labor and time.

• Dual Water Tank System for Optimal Hygiene

  • Tank 1: Used for washing and sanitizing. Sanitizer or disinfectant can be added (in compliance with local food safety regulations). Includes a filter to remove impurities and maintain water quality for reuse.

  • Tank 2: Collects used rinse water from the final rinse stage and drying section. This water is not recycled, ensuring trays are rinsed with clean, fresh city water.

• Advanced Drying System

  • Five drying fans ensure excellent moisture removal: two fans blow from underneath, three from above.

  • A rotating brush in the drying section removes excess surface water for faster and more efficient drying.

  • Water collected from the drying stage flows into Tank 2 for drainage.

• User-Friendly Control Panel
  Features a color touchscreen and physical buttons, allowing operators to easily manage all machine functions with intuitive controls.

• Time-Saving, Labor-Reducing Solution
  The fully automated denesting and nesting functions significantly reduce manual handling, improving efficiency and throughput for any egg packing facility.

Zenyer 201T plastic egg tray washer

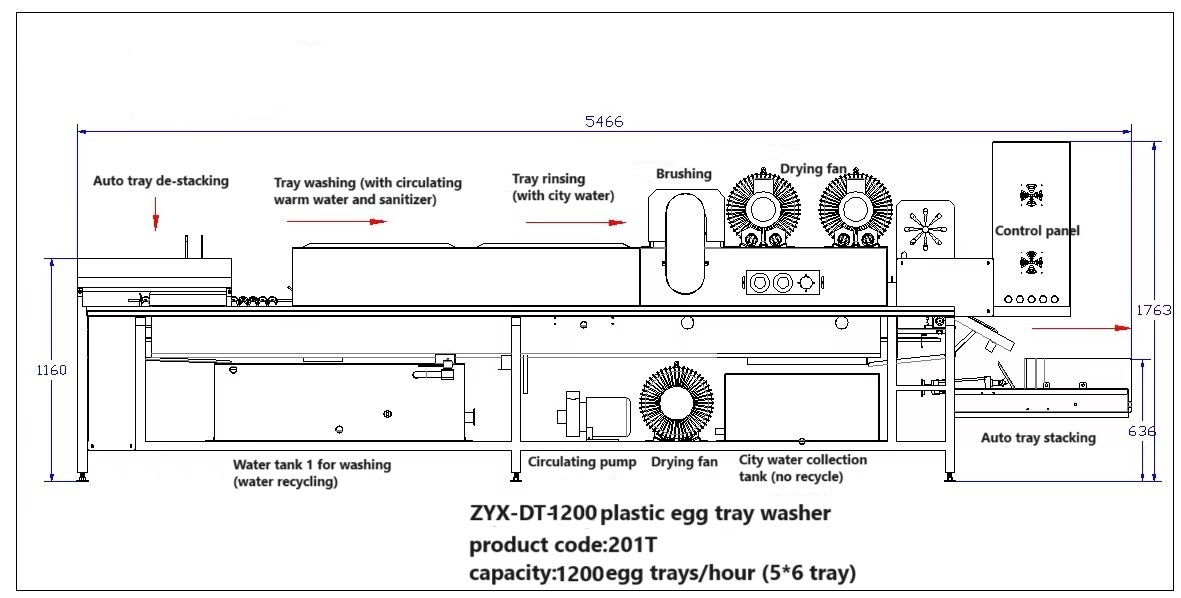

Floor plan

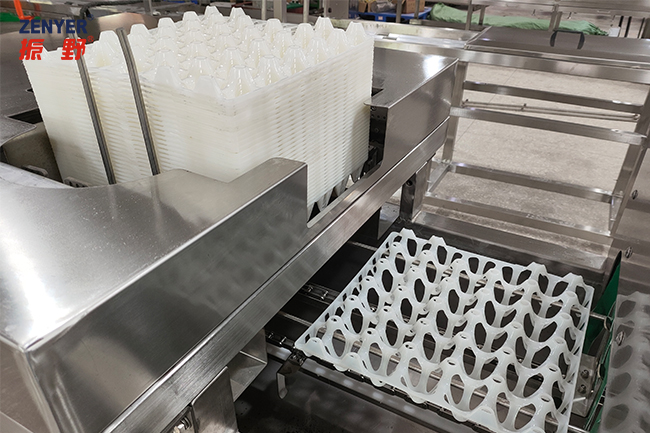

Automatic tray denesting

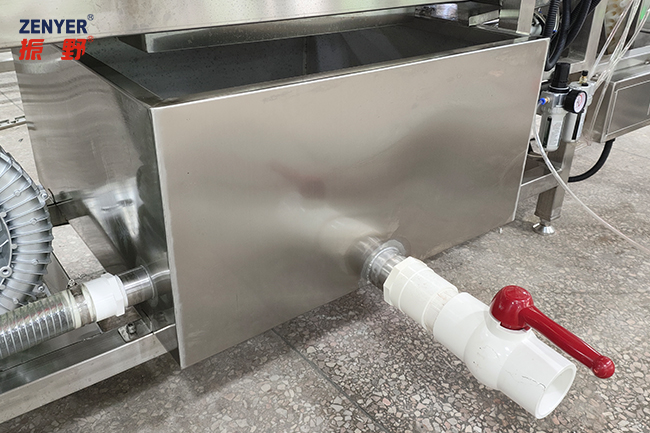

Water tank for Washing and Sanitizing

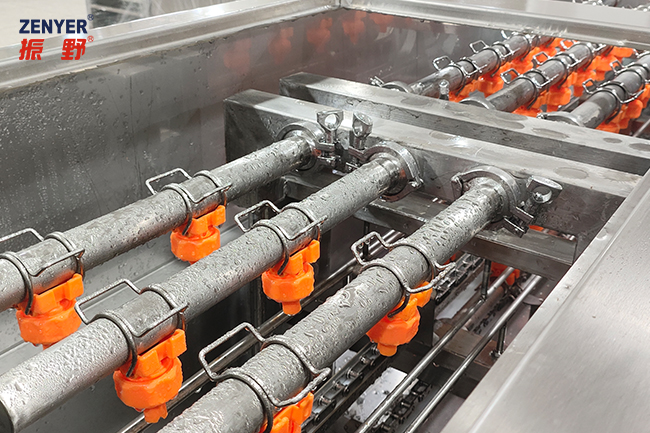

High pressure water for tray washing

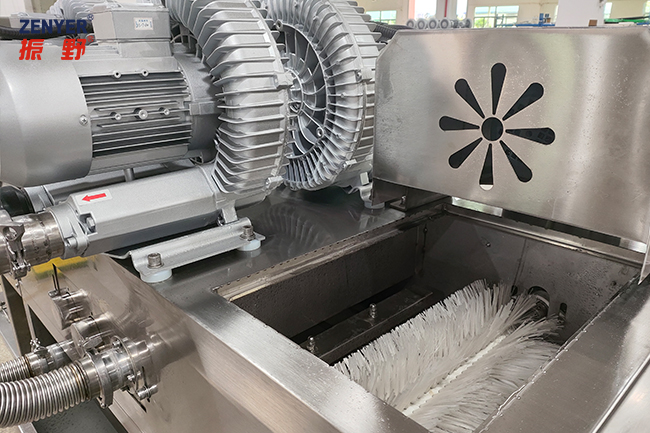

Brushing and drying

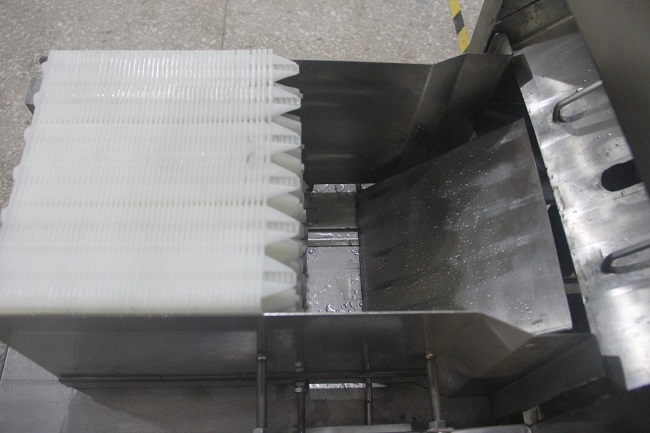

Automatic tray nesting

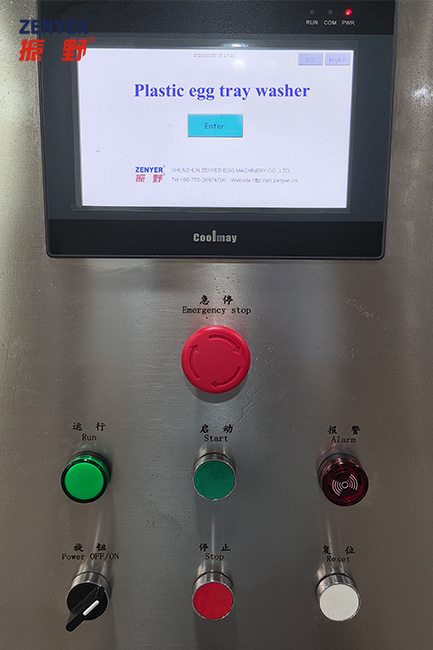

Control panel

Price of the Zenyer 201T plastic egg tray washer: $47,300.00

Optional:
-- Air compressor (3KW): Only $2,750.00
(supply the air needed to run the Tray Washer)

Price including GST
(Pre-order)

ZYX-DT-1200 Plastic Tray Washer (201T) Brochure
