Name：ZENYER FBD170 egg farm packer (714A)
Product Code： 714A
Capacity： 60,000 eggs/hour
Function： Egg accumulating, head turning, candling, automatic packing and counting
Details
Features:
-- Includes egg accumulating, head turning, candling, auto packing, counting and optional UV sterilization and dust brushing.
-- This model of machine is equipped with 2 automatic egg packers which pack eggs into 5*6 egg trays automatically
with a capacity of 60,000 eggs/hour.

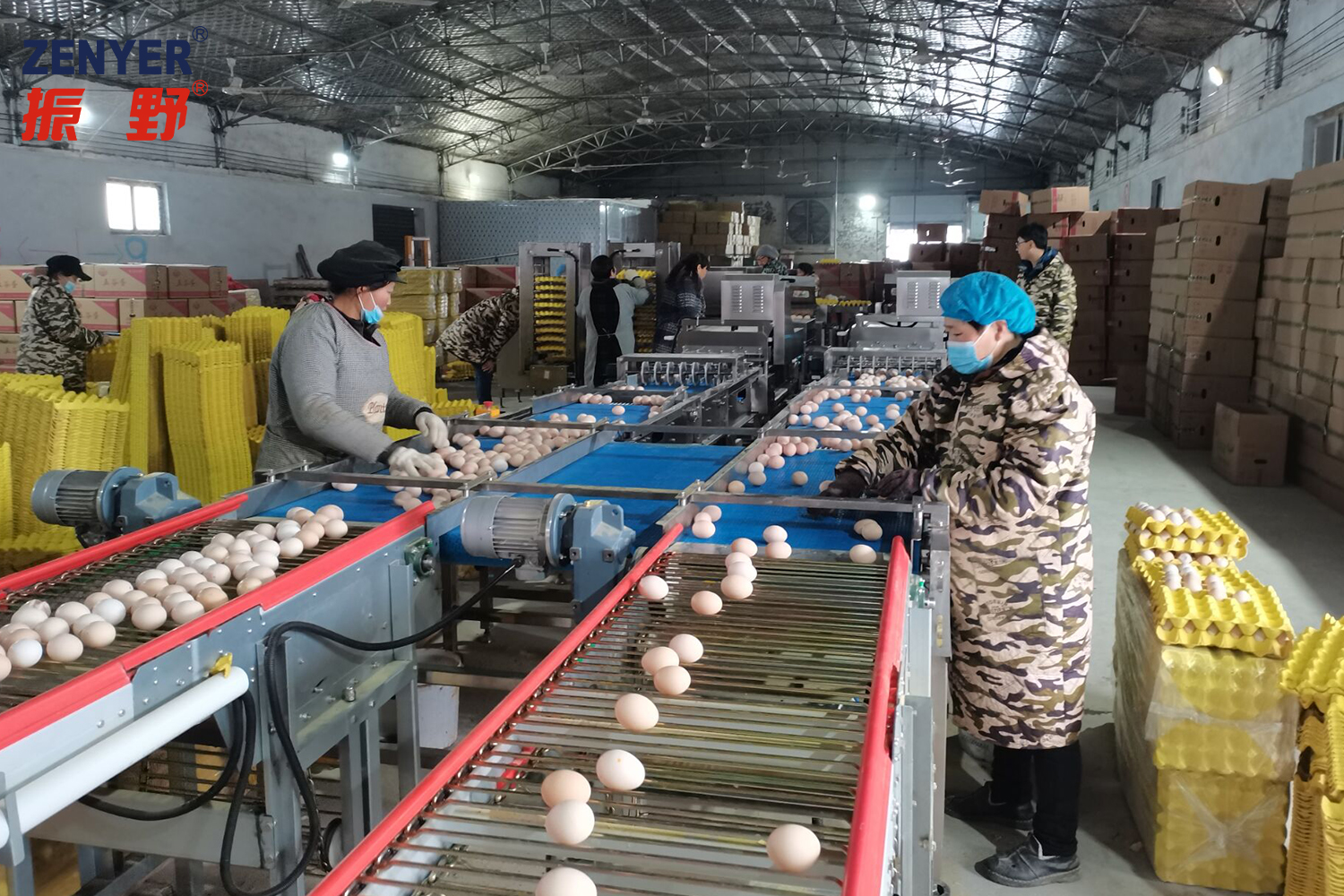

-- Designed to connect to the rod conveyor leading from chicken shed, the eggs from the chicken shed flow to the accumulator of the farm packer directly.

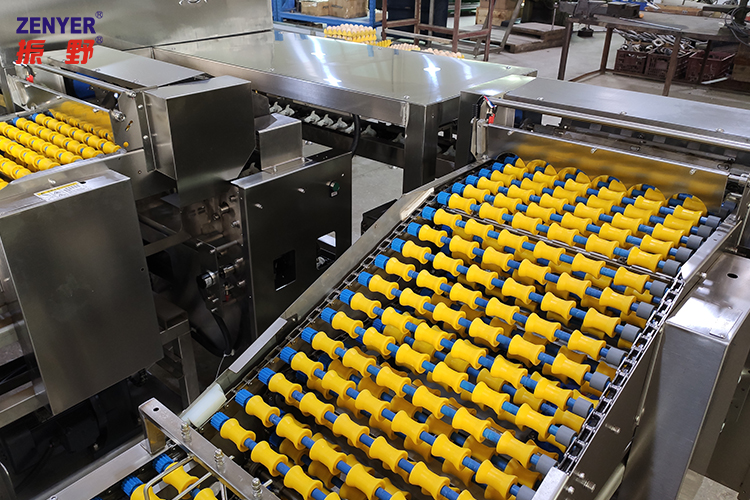

-- Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-- The optional UV sterilization and dust brushing can help ensure the eggs meet all rules and standard for maximum
food security.

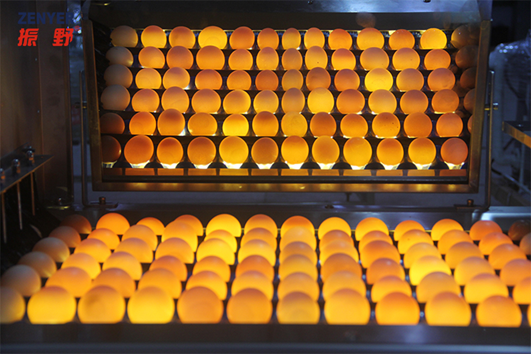

-- The candling section allows you to check for any leaking, dirty or cracked eggs through LED lights by sight
and remove them manually. There is also a candling cover and mirror for better candling results.
-- Empty trays needs to be loaded onto the empty tray conveyor manually, the conveyor will transport the cartons/trays
to where the eggs will drop from.
-- It has a counting function as well, you can check how many eggs have been packed.
-- It does NOT have a grading function.
| Model | FBD170 |
| Product code | 714A |
| Capacity | 60,000 eggs/hour |
| Main material | Stainless steel |
| Power | 5.04 KW |
| Voltage |
220~240V, single phase, 50HZ Or 380~415V, 3-phase,50HZ |
| People | 3~4 |
| Dimension（L*W*H） | 9.47*5.84*2 M |
| Function | Egg accumulating, head turning, candling, automatic packing (5*6 egg tray) and counting, optional UV sterilization and dust brushing |
Zenyer 714A farm packer

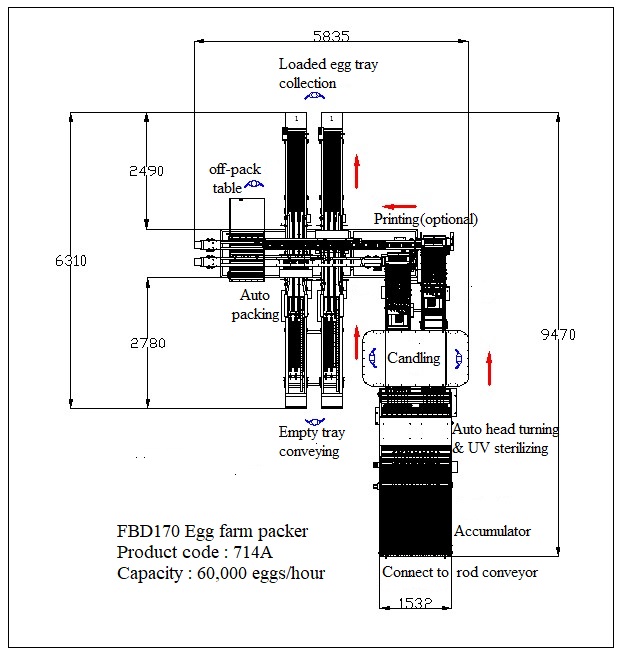

Floor plan
Connect to the rod conveyor

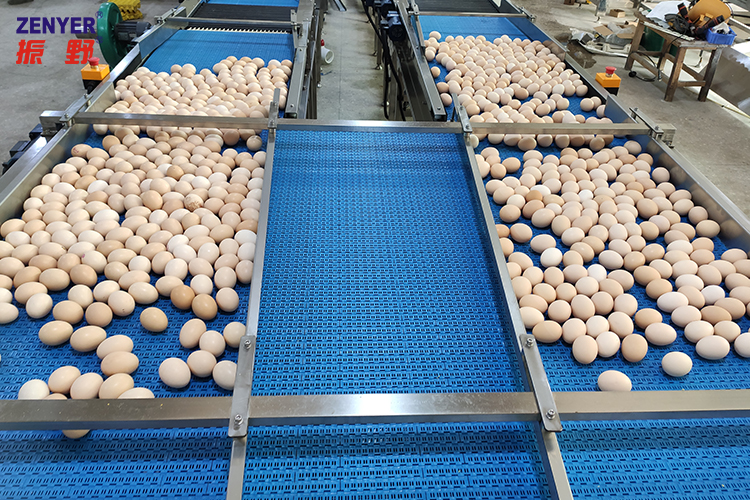

Accumulator
Head turning
UV sterilization (optional)

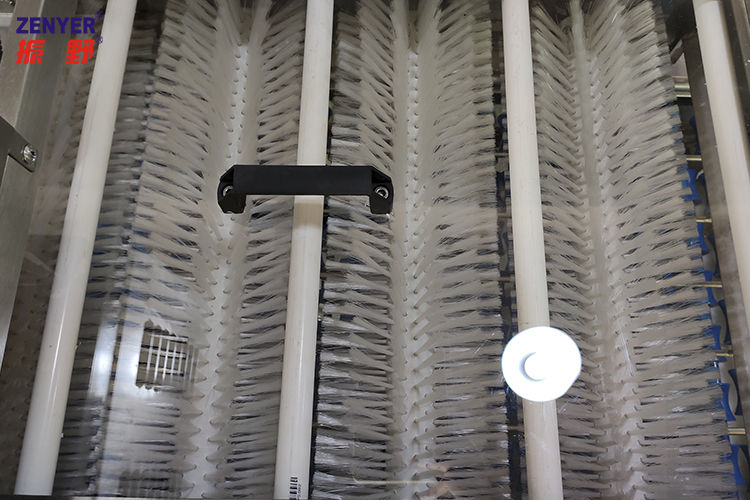

Dust brushing (optional)
Candling
Orientator (directs 6 lines of eggs into 1 line)
Empty tray loading

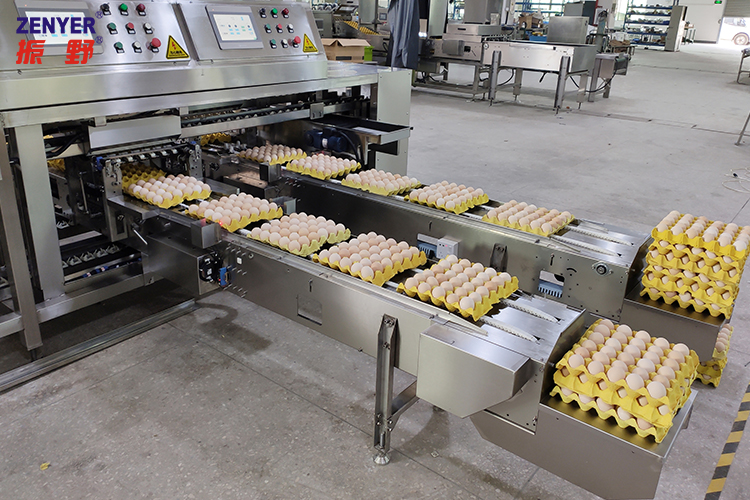

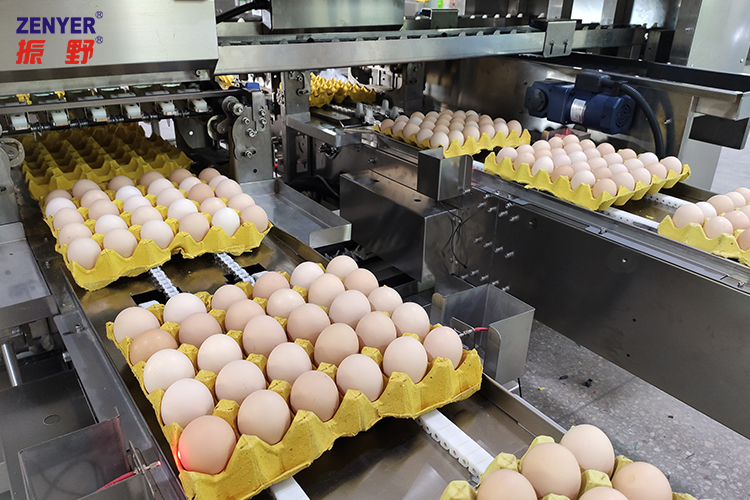

Automatic packing
Loaded egg tray collection
Off-pack table
Price of the ZENYER 714A egg farm packer: $137,500.00
Optional:
-- UV sterilization: Only $1,100.00
Price including GST
(Pre-order)
ZENYER FBD170 egg farm packer (714A) Brochure
