Name：ZENYER XBE30 egg farm packer (713AS)

Product Code： 713AS

Capacity： 30,000 eggs/hour

Function： Egg accumulating, de-nesting and auto packing

Details

Features:

-- Designed to connect to a rod conveyor leading from a chicken shed, the eggs from the chicken shed flow to the accumulator of the farm packer directly.

-- Includes egg accumulating, head turning, counting, de-nesting and automatic packing functions all in one.

-- Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.

-- Packs eggs into 5*6 trays automatically with a capacity of 30,000 eggs/hour.

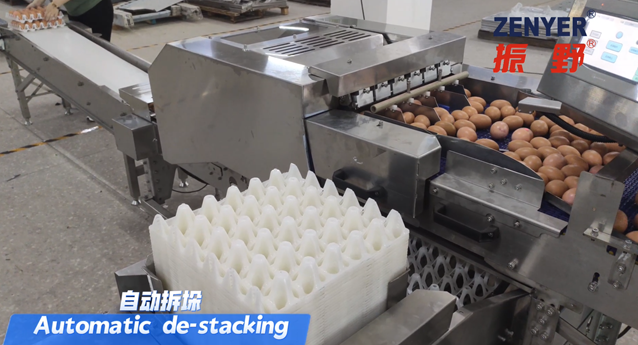

-- This model of farm packer equips a de-nester which can de-nest empty trays automatically and send them

to where the eggs will drop from.

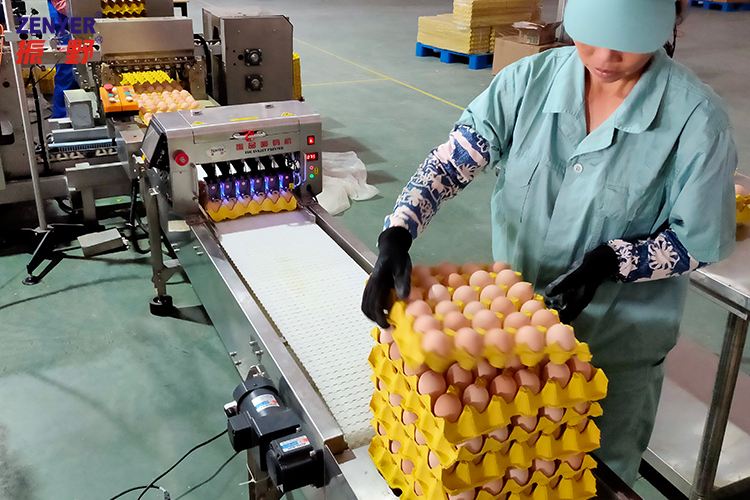

-- This system can include an optional robotic tray stacker. This feature automates the process of stacking egg trays

into uniform piles. Once stacked, the operator can easily collect these loaded stacks from the belt conveyor of the

robotic stacker.

-- The compact size of this machine makes it a great fit for small packing rooms.

Model	XBE30
Product code	713AS
Capacity	30,000 eggs/hour
Main material	Stainless steel
Power	1.23 KW
Voltage	220-240V, single-phase,50HZ
People	1
Dimension（L*W*H）	3410 * 1956 * 920 mm
Function	Egg accumulating, head turning, counting, de-nesting and auto packing (5*6 egg tray), and optional robotic tray stacker

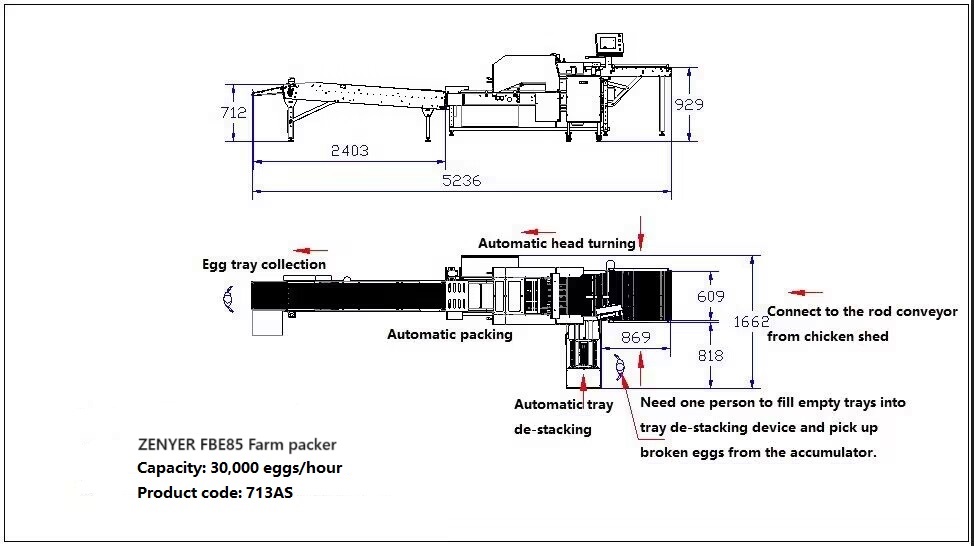

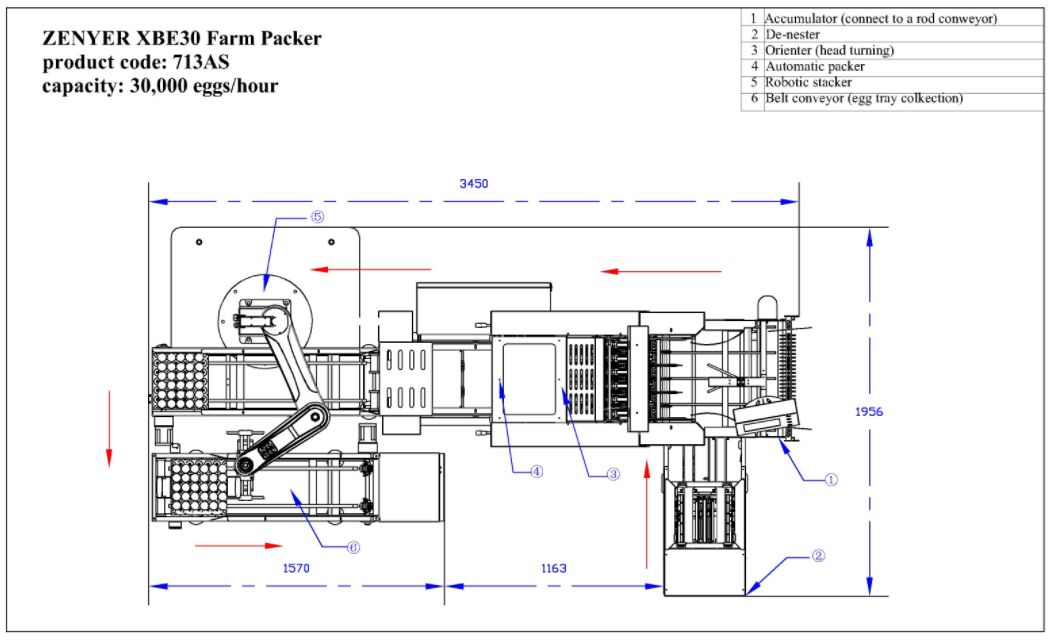

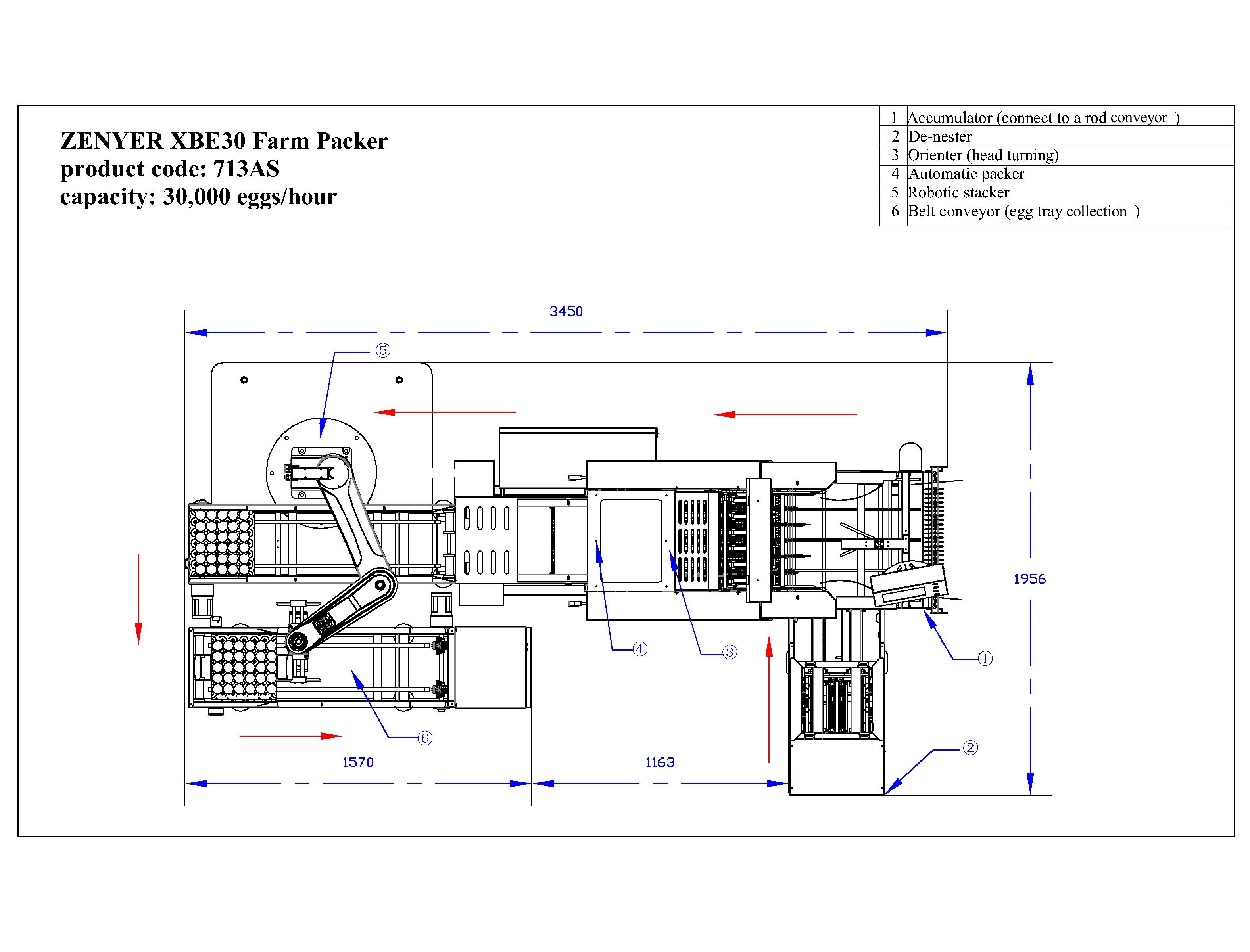

The ZENYER 713AS Farm packer floor plan (with an optional robotic stacker)

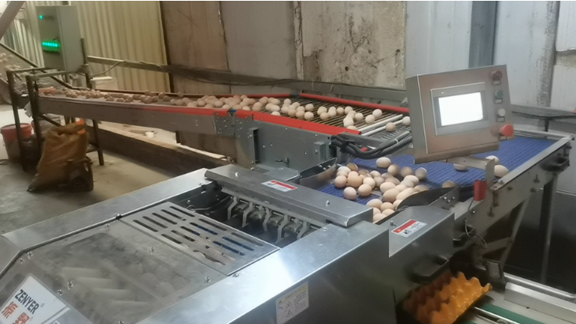

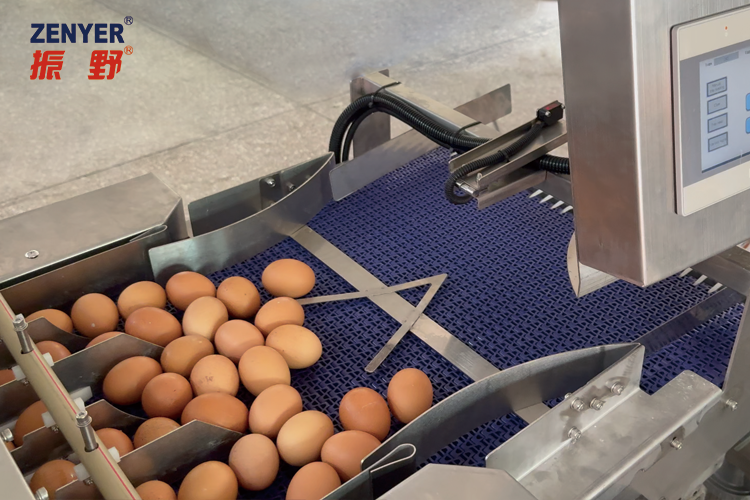

Accumulator (connect to the rod conveyor)

Accumulator

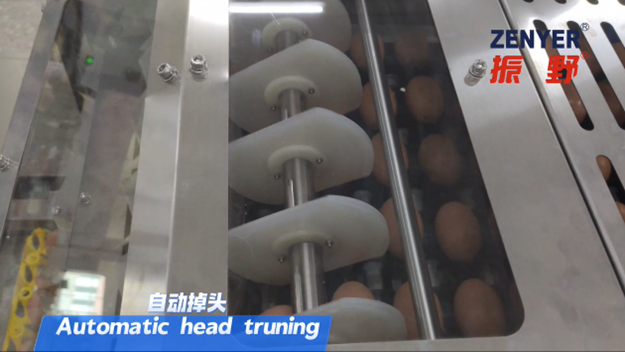

Orienter (head turning)

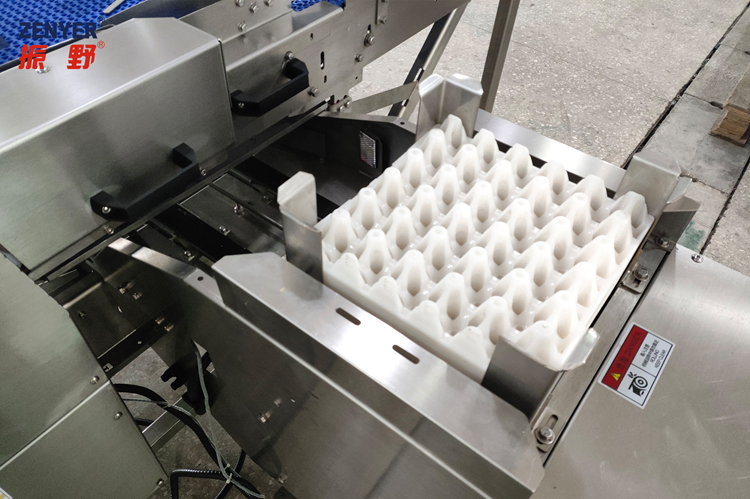

De-nester

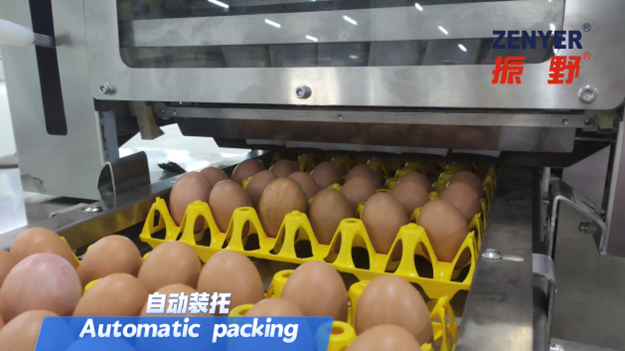

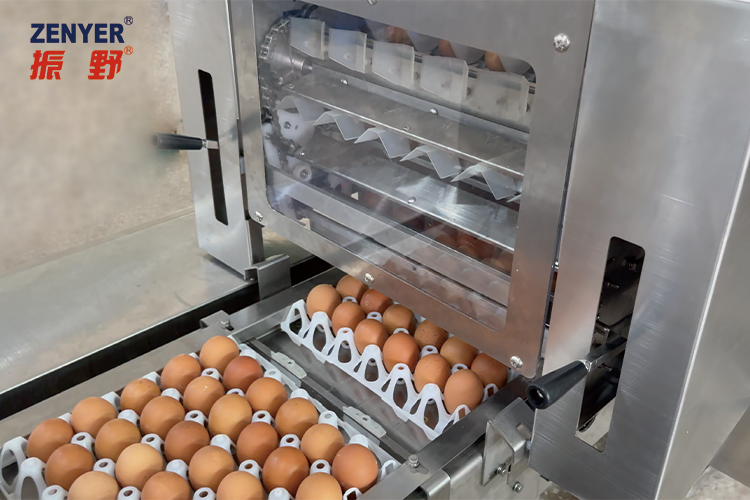

Automatic packer

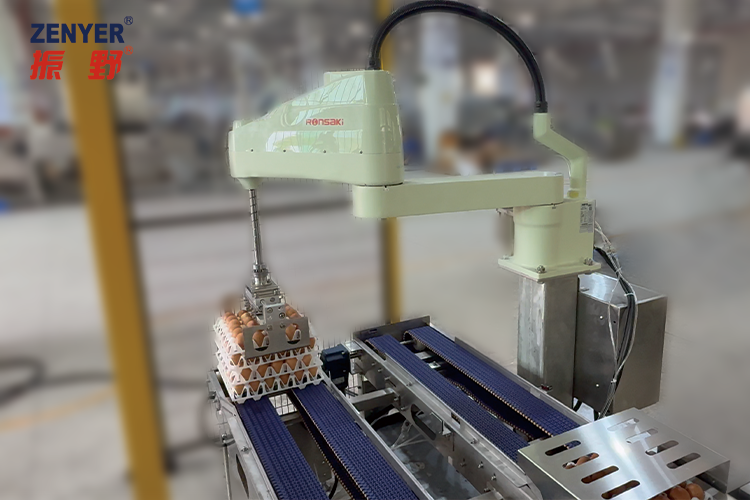

Robotic stacker- Lifting

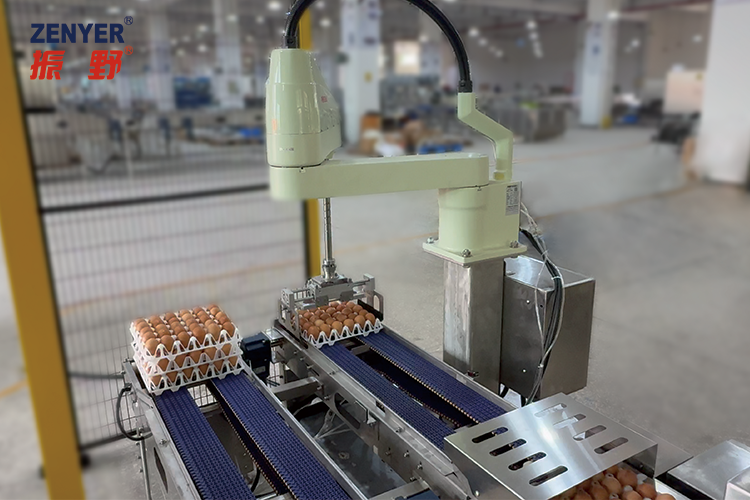

Robotic stacker- Stacking

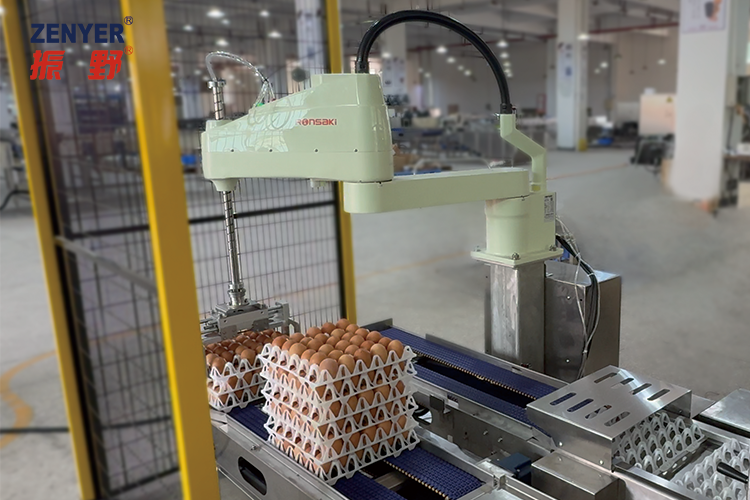

Robotic stacker- Belt conveying

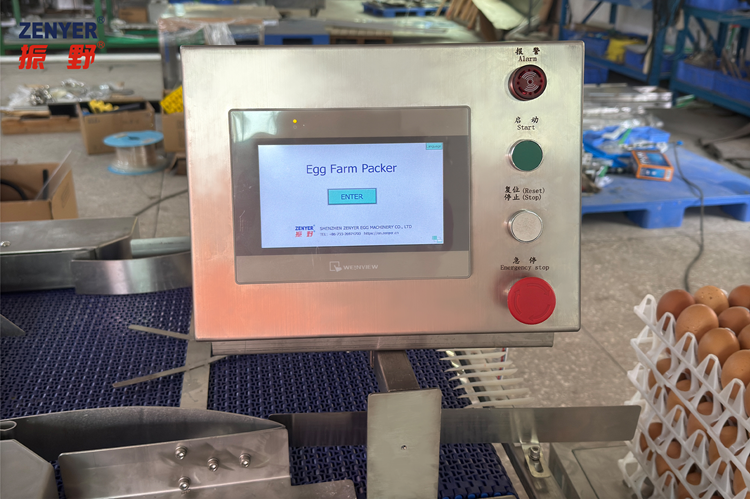

Control panel


Price of the ZENYER 713AS egg farm packer: Only $77,000.00

Price including GST

Optional:
-- Robotic tray stacker: Only $41,800.00


(Pre-order)

ZENYER XBE30 egg farm packer (713AS) Brochure
