Egg Washer

Name:ZYX-JS1-3-(P) Egg washer (202A)

Product Code: 202A

Capacity: 10,000 eggs/hour

Function: Sanitizing,washing,drying



Details


Features:

-- Made of strong stainless steel for great durability and hygiene.

--  It can satisfy any egg cleaning and drying requirements well.

-- Includes sanitizing, washing, drying functions and can also be equipped with an optional accumulator

(with candler), vacuum egg lifter, egg printer and manual collection conveyor (UV included). It has a capacity

 of 10,000 eggs/hour.

-- Eggs are loaded onto the Zenyer 605AS accumulator using the 602 vacuum egg lifterthen the accumulator will

direct 3 lines of eggs into 1 line and transport them to the single row egg washer.

-- 6-row light strips are added under the accumulator and you can pick out any cracked, dirty or otherwise unqualified

eggs through the Led lights by sight. There is also a candling cover and mirror to reinforce the candling results.

-- The proportional doser sprays sanitizer or detergent (customer provides chemicals) onto eggs automatically

for food security purpose.

-- The eggs will be cleaned by brushes with warm water  (a water heater isn't included in the price, consult our

representatives if needed).

-- Water on the eggs will be swept off by the brushes, and meanwhile the eggs themselves are dried by the drying

system. The drying result can reach up to 99% depending on the environment humidity.

-- Ideally, connect this machine with Zenyer 104A egg grader to assemble a Zenyer 302A egg washing grading line or

connect with 104B egg grader to assemble a 302AS egg washing grading line with a capacity of 10,000 eggs/hour.

Egg washer

 Model

ZYX-JS1-3-(P)

Product code

202A

Capacity

10,000 eggs/hour

Power*

10.9 KW

Voltage*

380-415V, 3-phase, 50HZ

Dimension(L* W* H)

9.3*3.9*2 M

Net weight*

1020 kg

Gross weight*

1470 kg

Function

Sanitizing, washing and dryingoptional accumulator (with candler), vacuum egg lifter, egg printer and manual collection conveyor (UV included)

* Power, net weight and gross weight are calculated according to the floor plan below.

ZENYER 202A egg washer

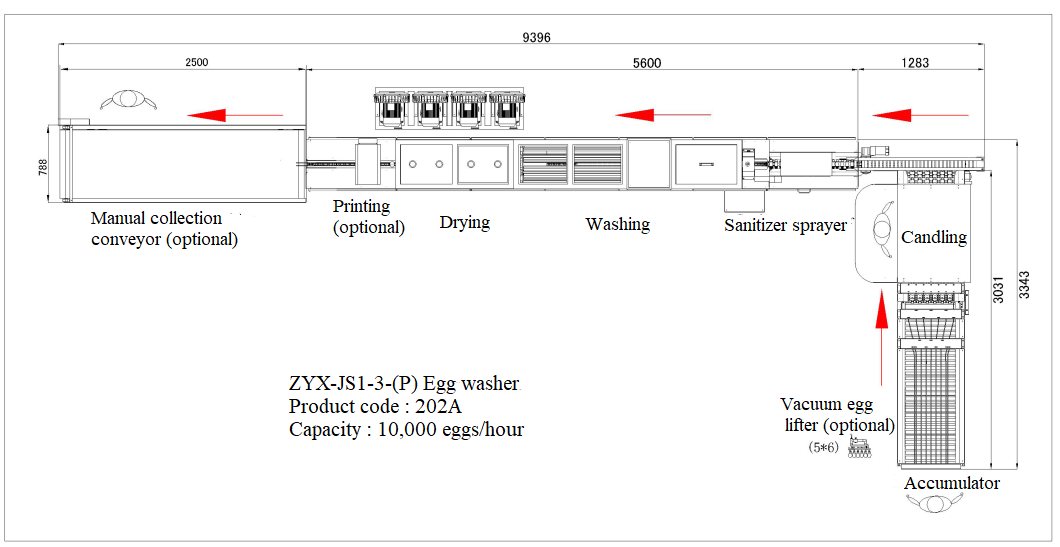

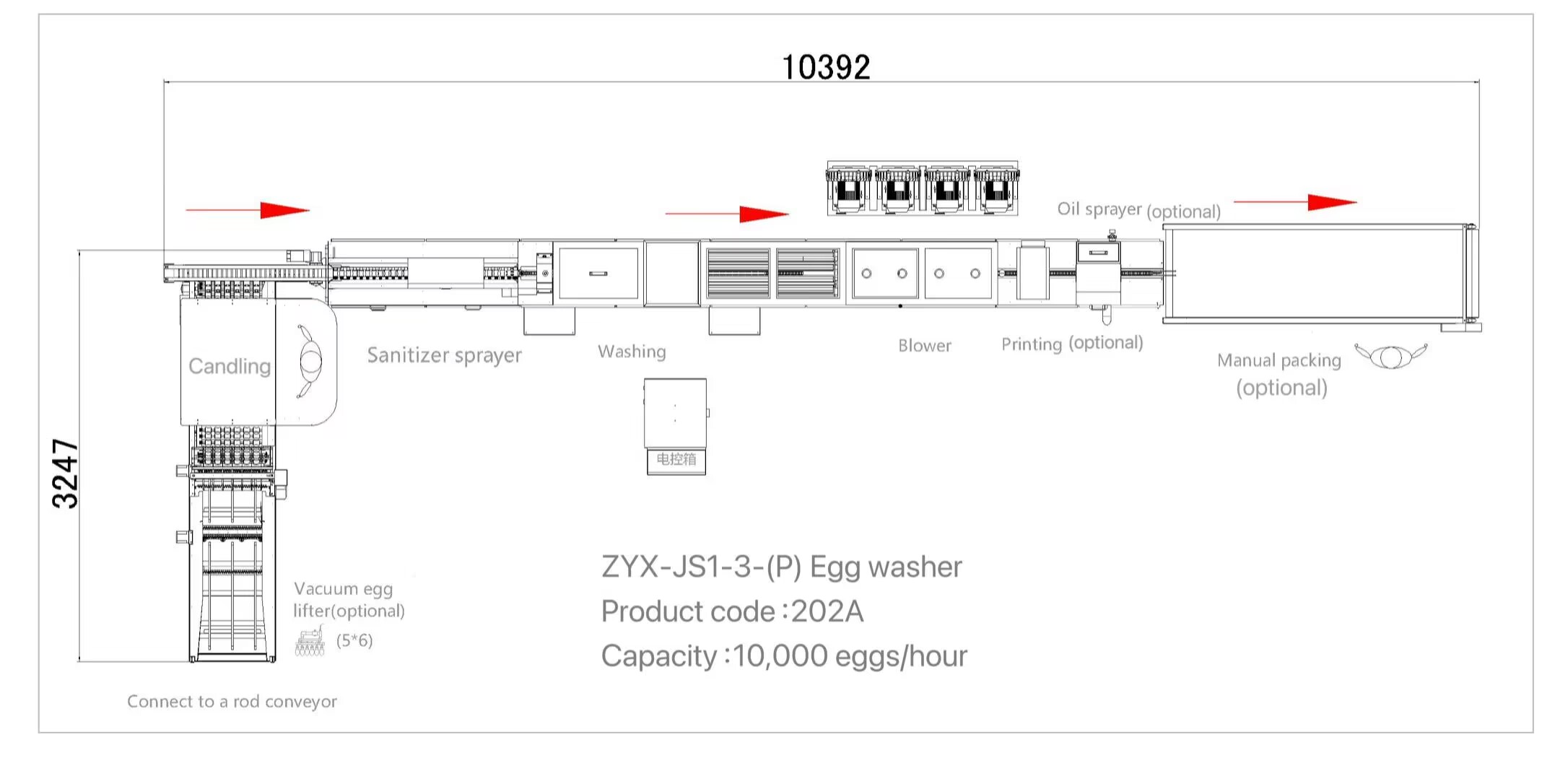

ZENYER 202A floor plan
Proportional doser for sanitizing

Egg washing with brushes and warm water



Remarkable Drying system

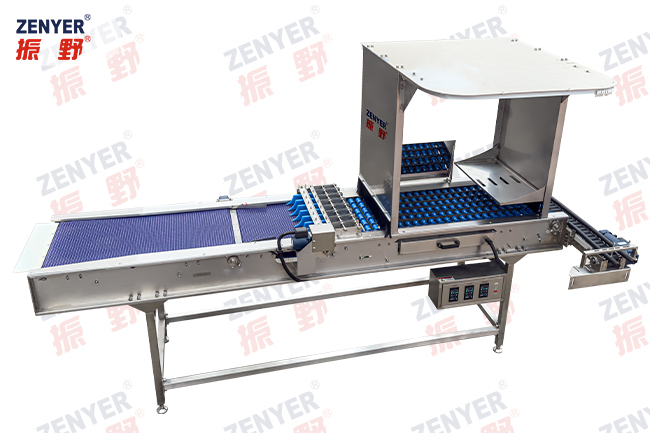

Zenyer 605AS accumulator (optional)

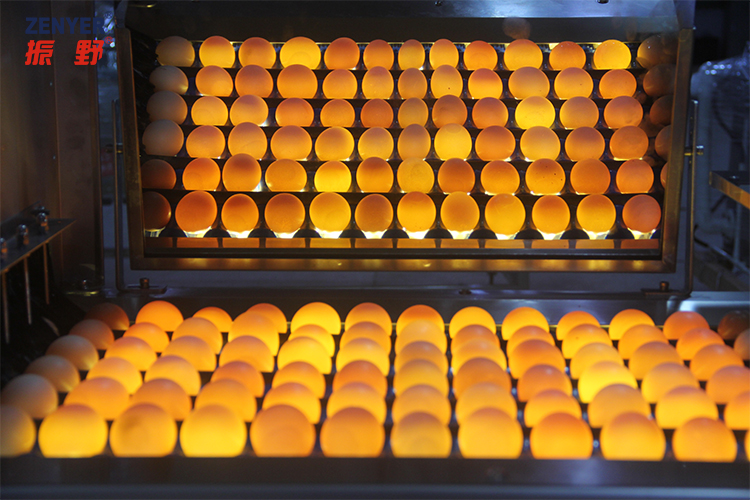

3-row candler of the 615AS accumulator

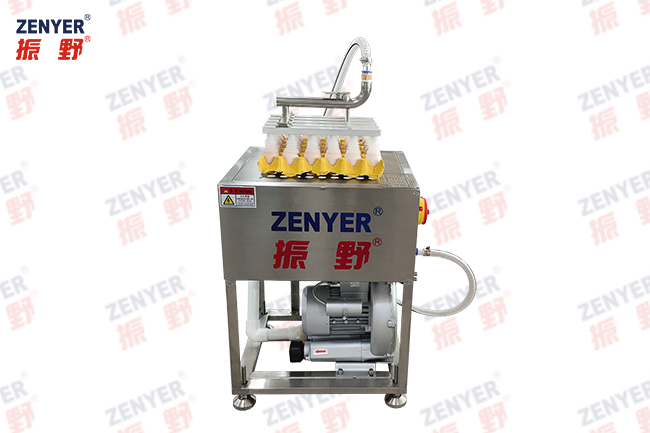

Zenyer 602 vacuum egg lifter (optional)

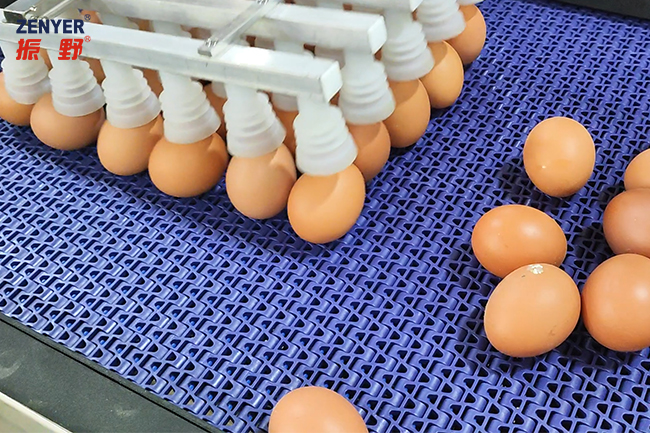

Load 30 eggs per time on the 605AS accumulator

Zenyer 401H egg printer (optional)

Manual collection conveyor with UV sterilization (optional)

Free standing control panel







Price of ZENYER 202A egg washer: $45,100.00



Optional:

-- The 401H Egg printerOnly $5,500.00
-- The 602 Vacuum egg lifterOnly $2,530.00
-- The 605AS accumulatorOnly $16,500.00

-- 608B manual collection conveyor (UV included): Only $5,500.00


 Price including GST



(Pre-Order)





* standard configuration is 3-phase,please remind us if you need single phase.




ZYX-JS1-3-(P) Egg washer (202A) Brochure
