Name：ZYX-JS1-2 Egg washer (201A)

Product Code： 201A

Capacity： 5,000 eggs/hour

Function： Sanitizing, Washing and Drying

Details

Features:

-- Made of strong stainless steel for great durability and hygiene.

-- It can satisfy any egg cleaning and drying requirements well.

-- Includes single roller conveyor, sanitizing, washing and drying functions, it can also be equipped with an optional

accumulator, vacuum egg lifter, candler and/or egg printer. It has a capacity of 5,000 eggs/hour.

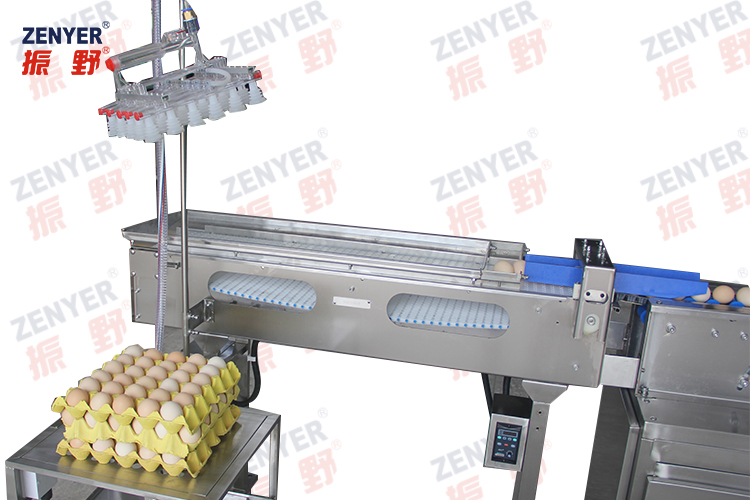

-- Eggs are vacuum lifted and loaded onto the 604AS accumulator through the 602 vacuum egg lifter, and then the

accumulator will transport eggs to the single row egg washing machine.

-- Only half of the normal labour for egg loading is needed if the accumulator and vacuum egg lifter are used together

with the machine.

-- The proportional doser sprays sanitizer or detergent (customer provides chemicals) onto eggs automatically

for food security purpose.

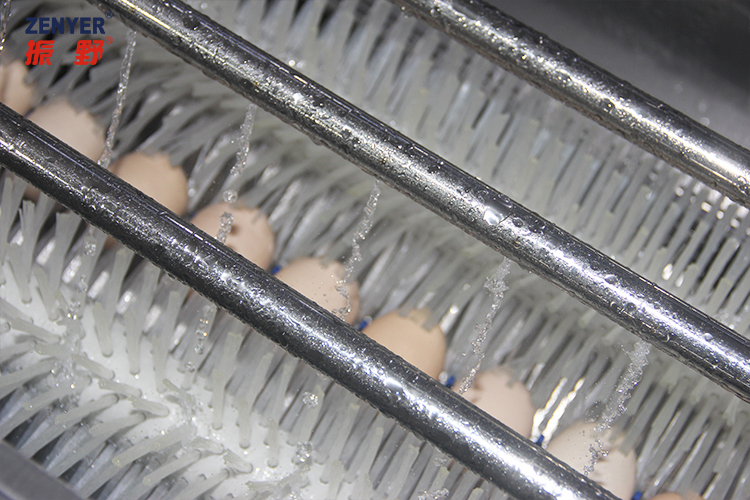

-- The eggs will be cleaned by brushes with warm water  (the price doesn't include a water heater, consult our

representatives if needed).

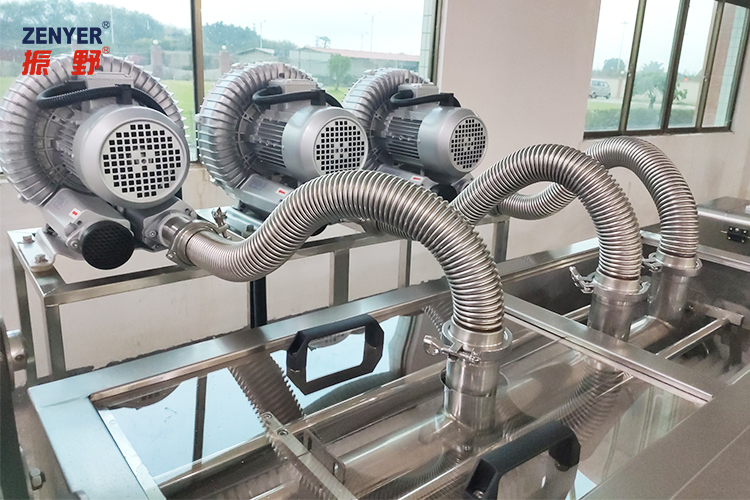

-- Water on the eggs will be swept off by the brushes, and meanwhile the eggs themselves are dried by the drying

system. The drying result can reach up to 99% depending on the environment humidity.

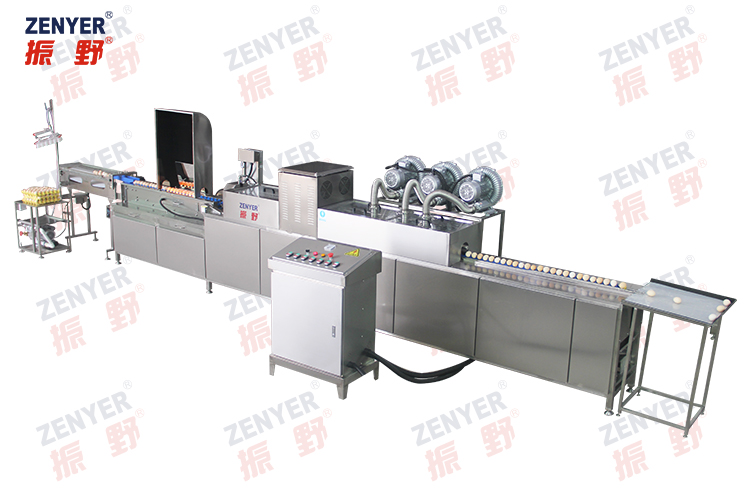

-- Connect with Zenyer 102B egg grader, the 604A accumulator and the optional Zenyer 401H egg printer,

the 604AS accumulator and/or the 602 vacuum egg lifter to assemble a Zenyer 301A egg washing grading line

with a capacity of 5,000 eggs/hour.

Egg washer
Model	ZYX-JS1-2-(P)
Product code	201A
Capacity	5,000 eggs/hour
Power*	7.9 KW
Voltage*	220-240V, single phase, 50HZ Or 380-415V, 3-phase, 50HZ
Dimension(L* W* H)	8.1*1.25*1.55 M
Net weight*	590 kg
Gross weight*	840 kg
Function	Sinlge roller conveyor, sanitizing, washing and drying, optional accumulator, vacuum egg lifter, candler, egg printer and manual collection conveyor (UV included)

* Power, net weight and gross weight are calculated according to the floor plan below.



ZENYER 201A egg washer

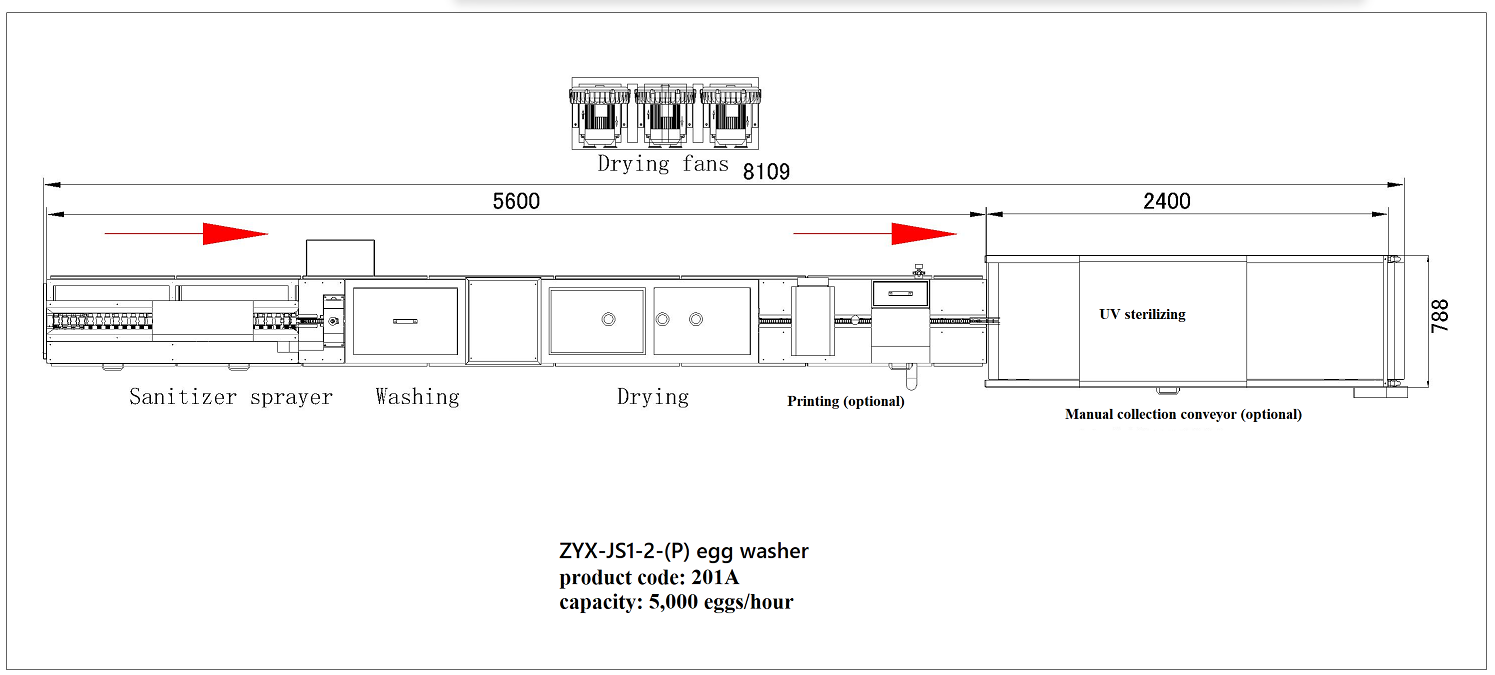

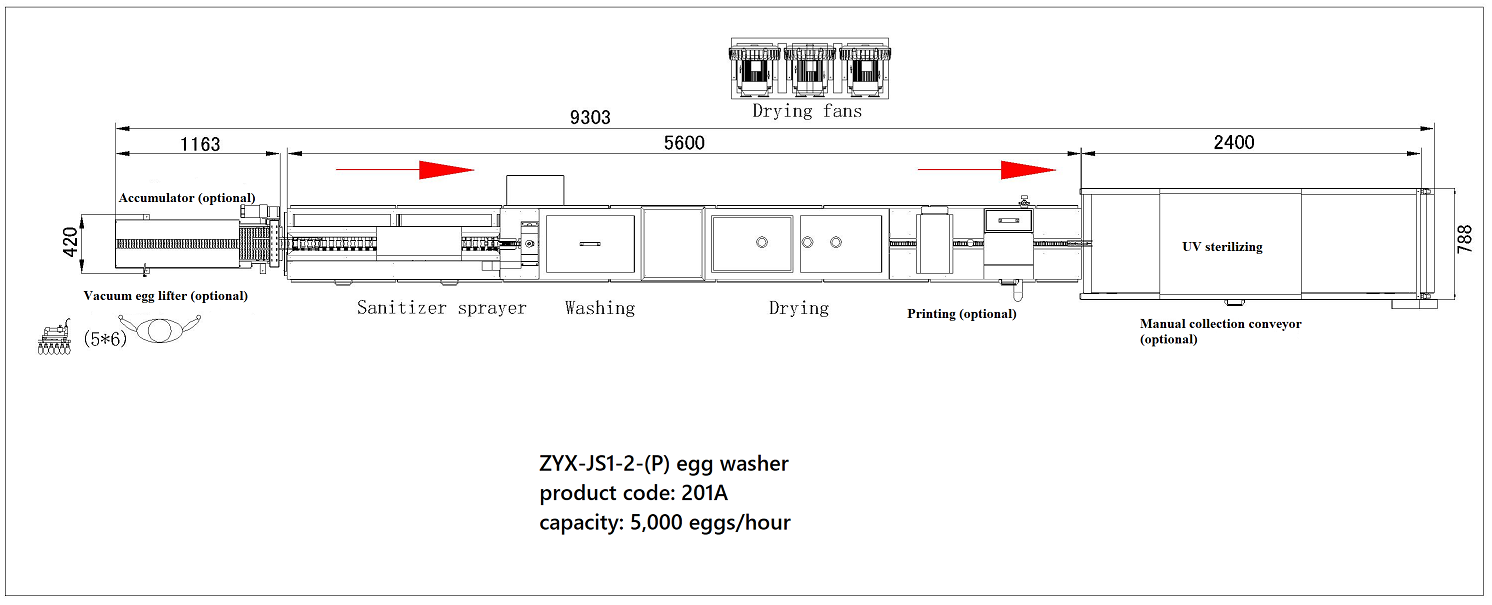

 Floor plan

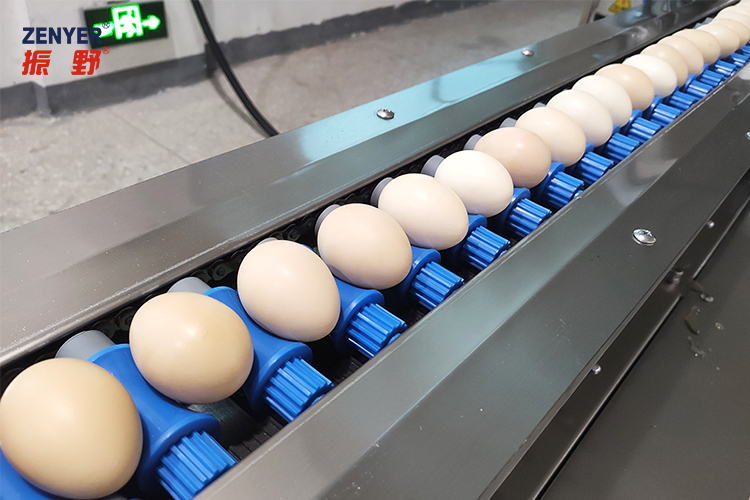

Single row feeding roller

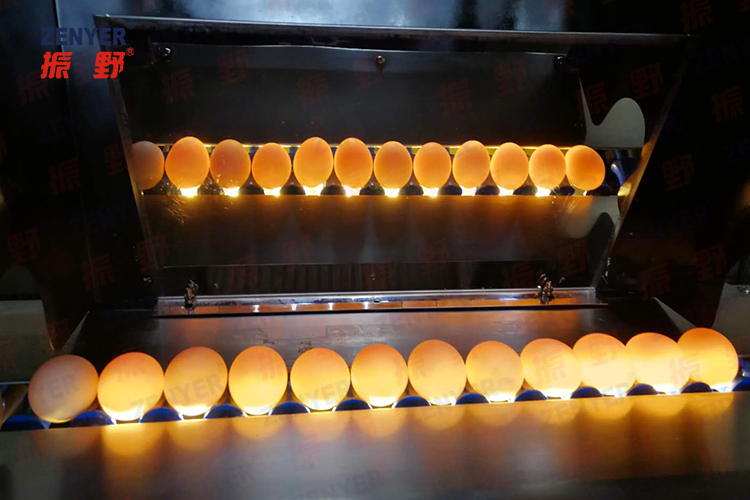

A sinlge row candler (optional)

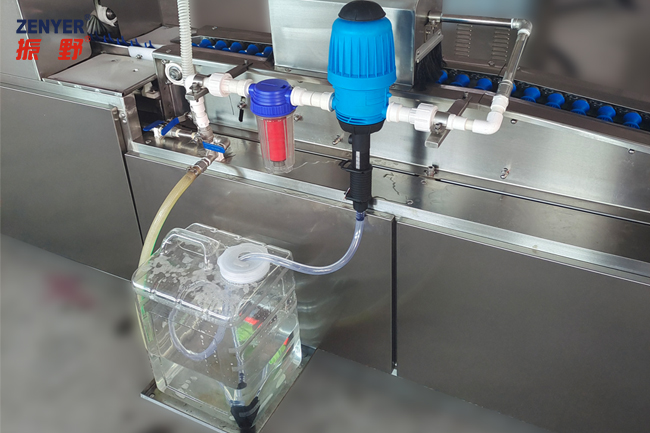

Proportional doser for sanitizing

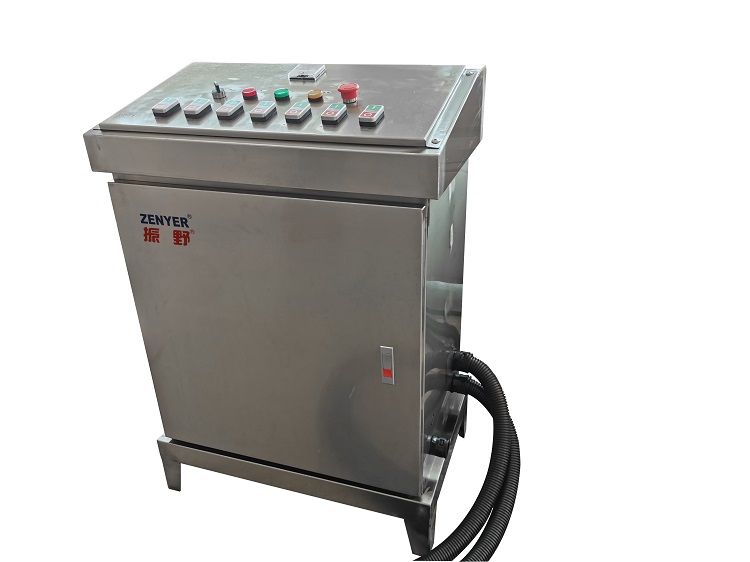

Free standing control panel


Price of ZENYER 201A egg washer:  $37,400.00





 Optional:

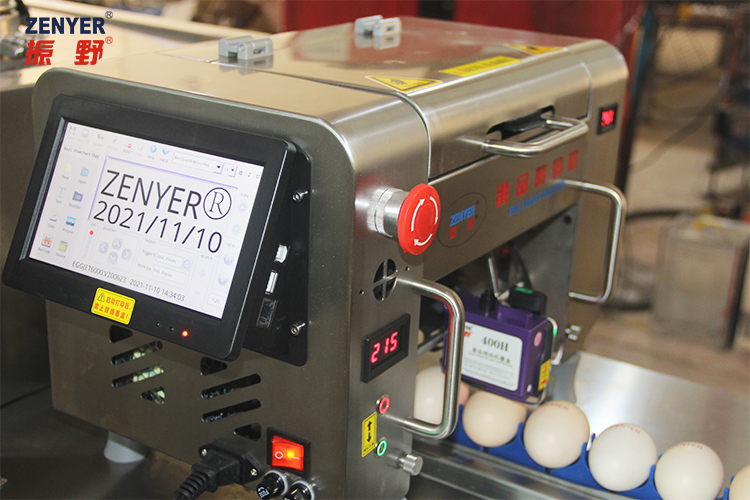

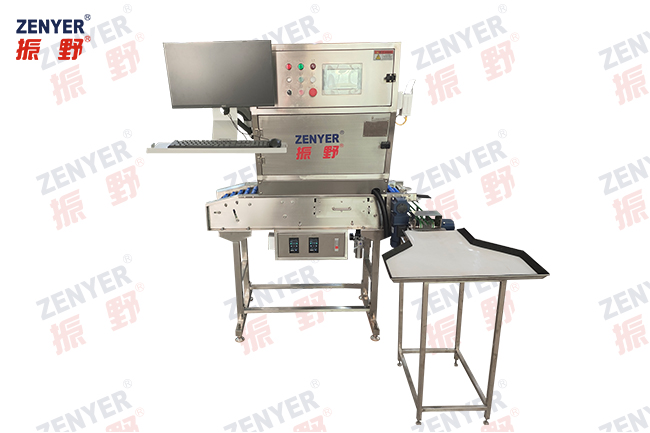

-- The 401H egg printer: Only $5,500.00
-- The 602 Vacuum egg lifter: Only $2,530.00

-- The 604AS accumulator: Only $3,300.00

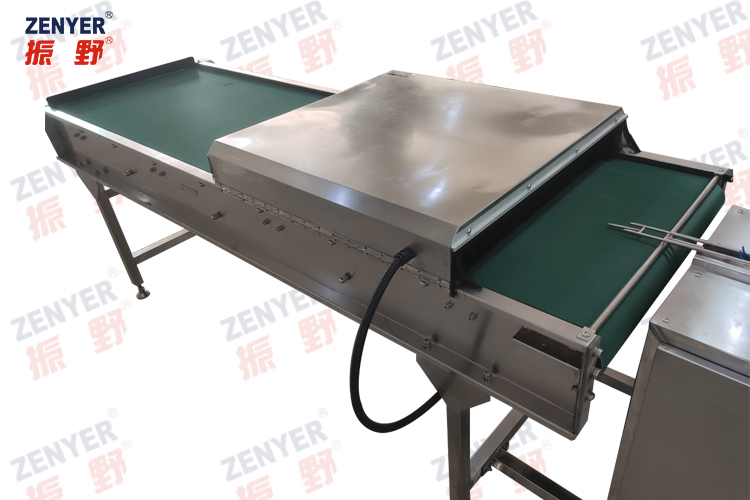

-- 608B manual collection conveyor (UV included): Only $5,500.00
-- Single row LED light candler(candling cover and mirror included): Only $660.00


 Price including GST



(Pre-order)



* standard configuration is 3-phase,please remind us if you need single phase.

ZYX-JS1-2 Egg washer (201A) Brochure
