Name：ZYL-JS2-DAS6-3ZP Egg Washing Grading Line (303A)

Product Code： 303A

Capacity： 20,000 eggs/hour

Function： Accumulating, candling, sanitizing, washing, drying, grading, counting, auto packing

Details

Features:

-- Made of stainless steel for better durability, corrosion resistance and hygiene.

-- ZENYER 303A egg processing line consist of the Zenyer 203A egg washer and Zenyer 107 egg grader and has

a capacity of 20,000 eggs/hour.

-- Includes the egg accumulating, candling, orientating, sanitizing, brush washing and drying, head turning,

egg grading & counting, auto-packing and manual packing functions, as well as the optional automatic egg loader,

UV sterilization and egg printer.

-- The 203A egg washer is equipped a free standing control panel, and the 107 egg grader has a color touchscreen

control panel, they are interlock controlled with each other for safety reasons.

-- Can be connected to a rod conveyor leading from the chicken shed or to a Zenyer 615 automatic egg loader, both of

which makes egg loading more efficient.

-- This model of egg washer can satisfy any egg cleaning and drying requirements very well.

-- The auto-packer supports 10, 12, 15, 18, and 30 egg cartons/trays.

-- One auto-packer can pack only one size, the manual packing lane can pack a maximum of 2 sizes.

Egg processing line
Model	ZYL-JS2-DAS6-3ZP
Product code	303A
Capacity	20,000 eggs/hour
Accuracy	±1 g
Grade	4~7
Power*	27 KW
Voltage	380-415V, 3-phase, 50HZ
Dimension (L*W*H)	16.6*5.7*2 M
Net weight*	3075 kg
Gross weight*	4500 kg
Function	Accumulating, candling, orientating, sanitizing, egg washing, drying, head turning, grading, counting, auto packing and manual packing, optional automatic egg loader, UV sterilization and egg printer

* Power, net weight and gross weight are calculated according to the floor plan below.

ZENYER 303A (consist of Zenyer 203A egg washer and Zenyer 107 egg grader)

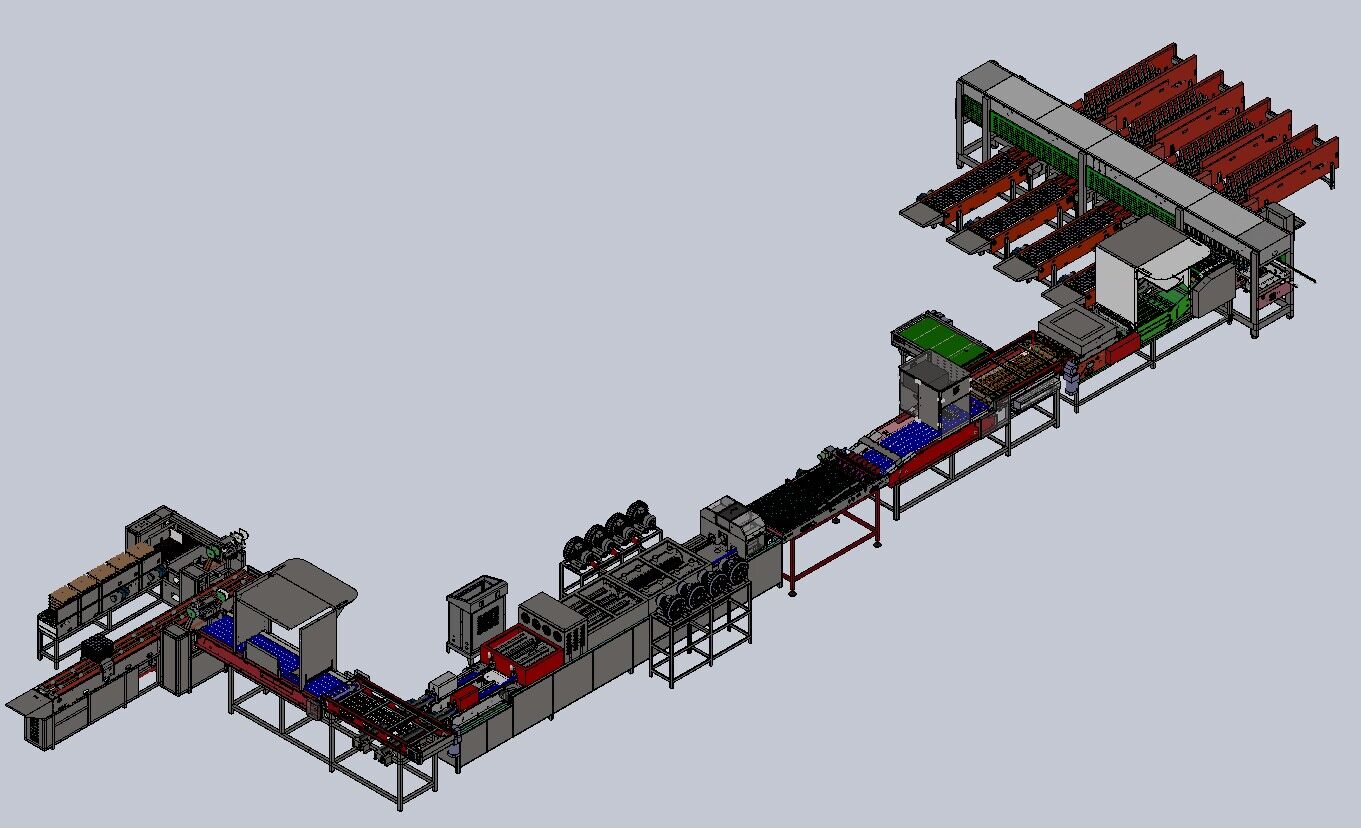

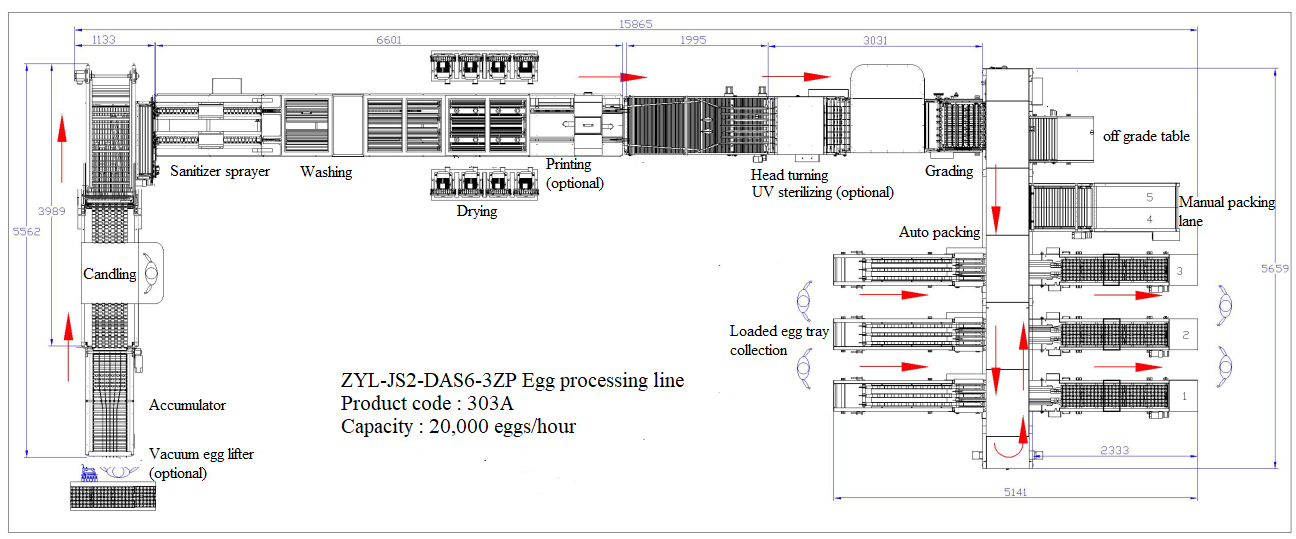

Floor plan (Zenyer 303A)
ZENYER 203A egg washer (Module 1)

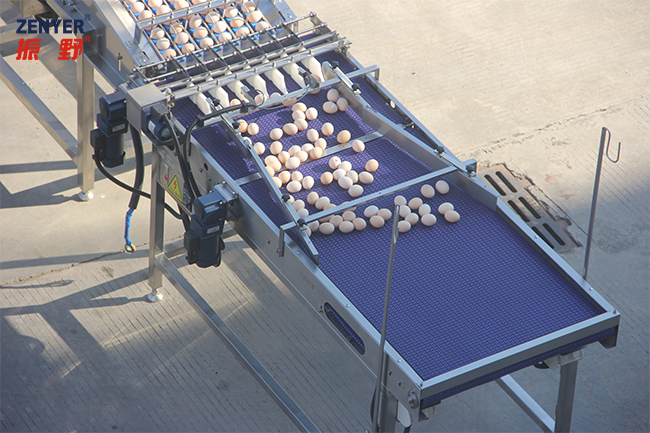

Egg accumulator
CandlingOrientatingProportional doser for sanitizingEgg washing with brushes and warm water

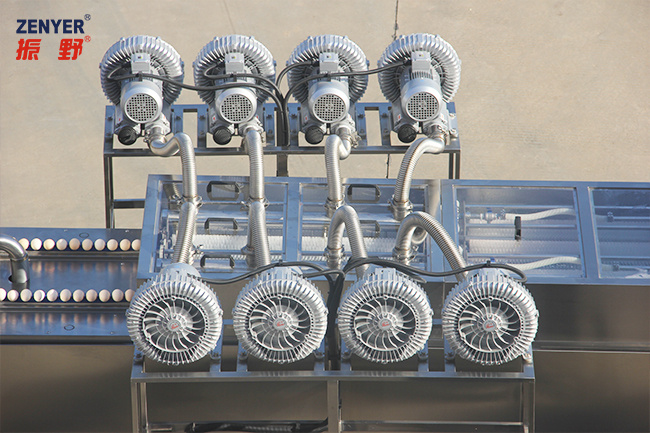

Remarkable Drying system
Control panel ( (Module 1- Egg washer)

Zenyer 107 egg grader (Module 2)

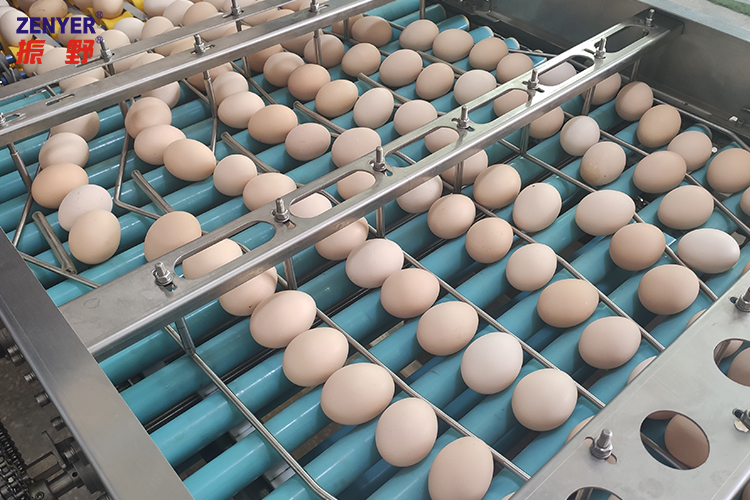

 Head turning

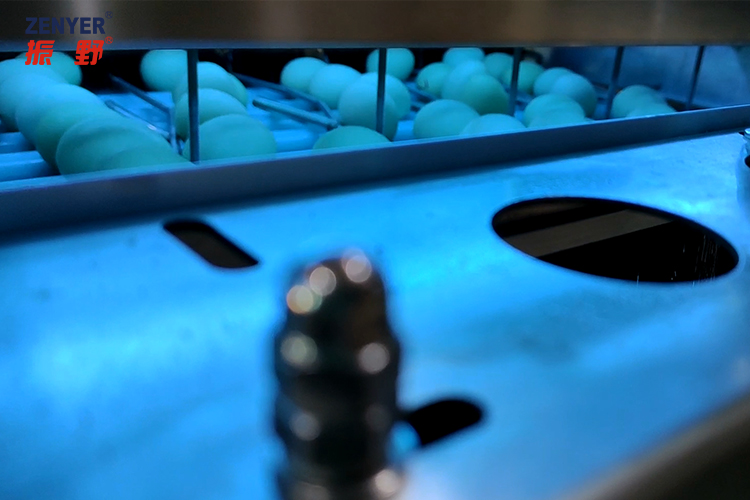

UV sterilization(optional)

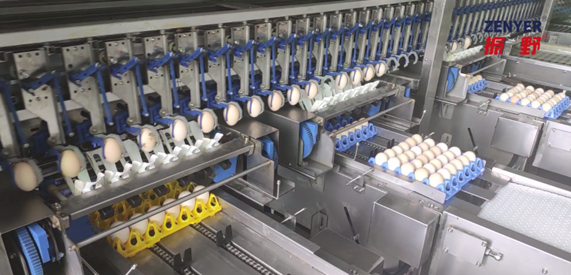

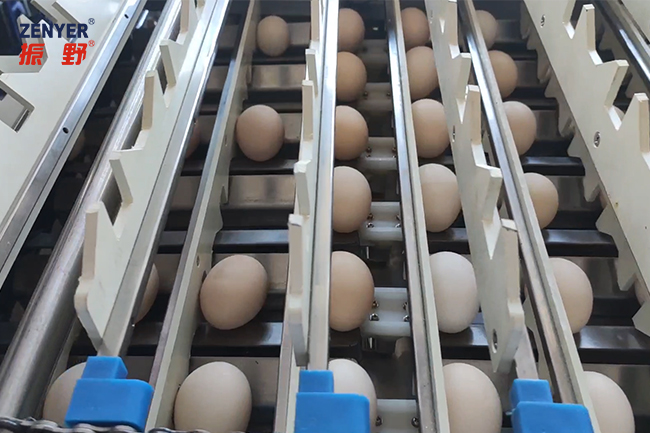

Electronic weighing

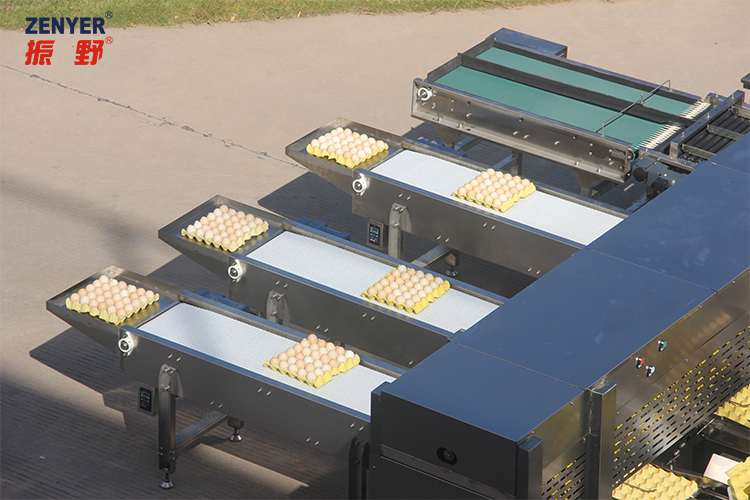

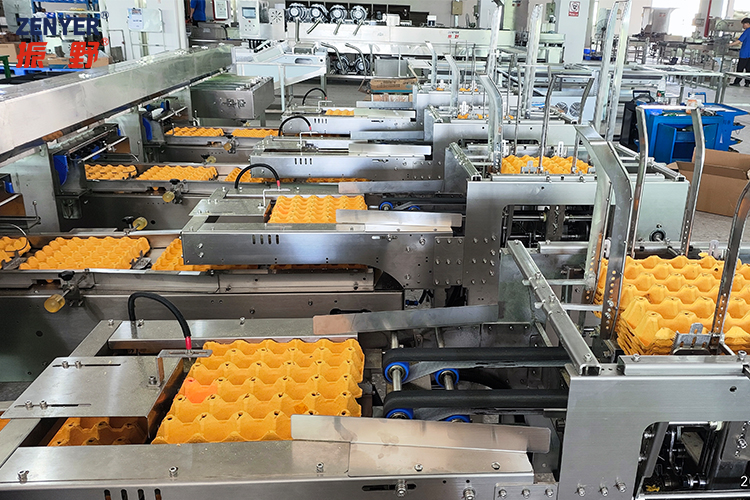

Auto packing
Manual empty tray loading
Auto empty tray de-nesting (optional)

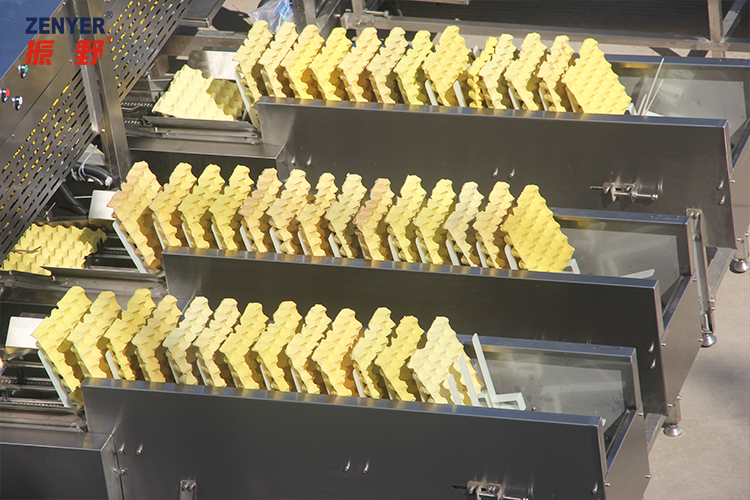

Loaded egg tray collection
Manual packing lane

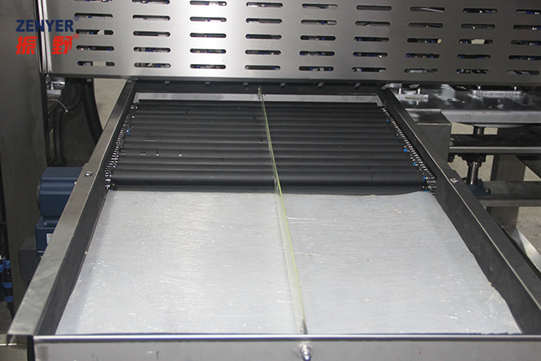

Off-grade table
Control panel ( (Module 2- Egg grader)
Zenyer 615 auto loader (optional)
The 615 auto egg loader paired with the 303A
Visual AI detector (optional)

Price of ZENYER 303A egg processing line: $264,000.00

Consist of:

-- The 203A egg washer

-- The 107 egg grader (auto-packer (3) + manual packing lane (1))





Optional:

    -- The 615 automatic egg loader: Only $66,000.00

    -- The 401H Egg printer: Only $5,500.00
   -- UV disinfection: Only $1,100.00
  -- The 430X Visual AI Detector: Only $110,000.00
   -- Auto tray de-nesting

Price including GST



(Pre-Order)

ZYL-JS2-DAS6-3ZP Egg Washing Grading Line (303A) Brochure
