Name: ZYL-JS1-D1-C Egg Washing Grading Line（302AS)

Product Code: 302AS

Capacity: 10,000 eggs/hour

Function: Accumulating, candling, washing, drying, grading and manual collection

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more

Details

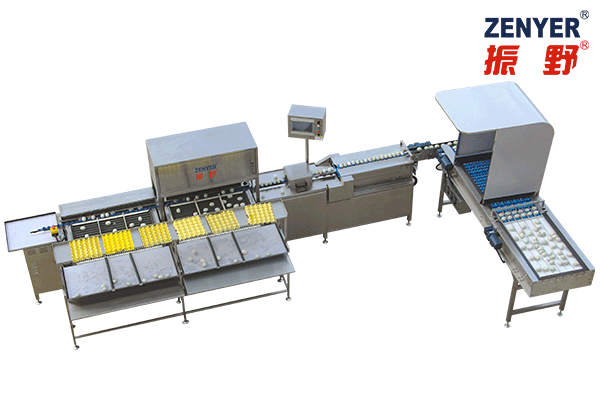

 ZENYER 302AS Egg Washing & Grading Line – Features & Benefits

• Durable Stainless Steel Build
  Made from stainless steel for excellent durability, corrosion resistance, and hygiene, ensuring long service life even in demanding egg processing environments.

• Integrated High-Capacity System
  The ZENYER 302AS combines three major components:

  • ZENYER 605A Accumulator

  • ZENYER 202A Egg Washer

  • ZENYER 104B Egg Grader
    Together, they provide a seamless egg washing and grading process with a capacity of 10,000 eggs per hour.

• Complete Processing Functions
  Performs egg accumulating, candling, sanitizing, washing, drying, grading, counting, and manual collection in one continuous line.
  Optional upgrades include:

  • Vacuum Egg Lifter for easier loading

  • Egg Printer for traceability and batch coding

  • UV Sterilization for maximum food safety

• User-Friendly Control System

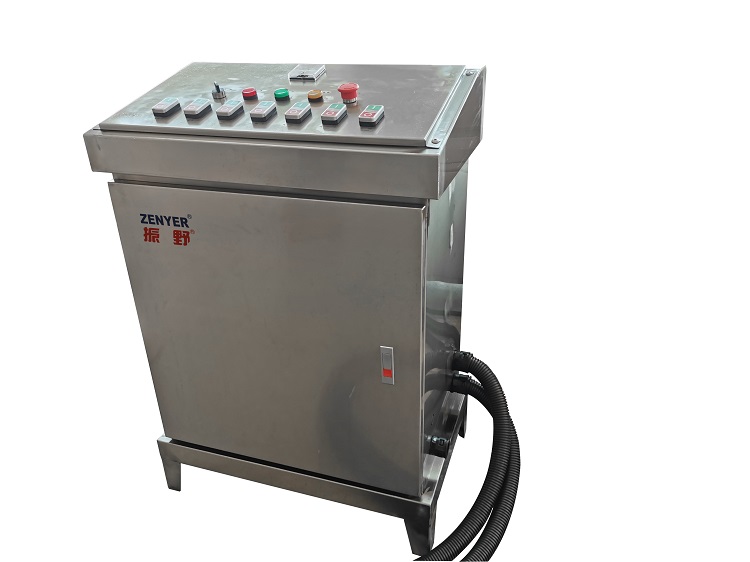

  • The 202A Egg Washer features a free-standing control panel.

  • The 104B Egg Grader is equipped with a color touchscreen control panel for setting grading specifications and monitoring output.
    Both are interlock-controlled for safe and synchronized operation.

• Enhanced Candling Inspection

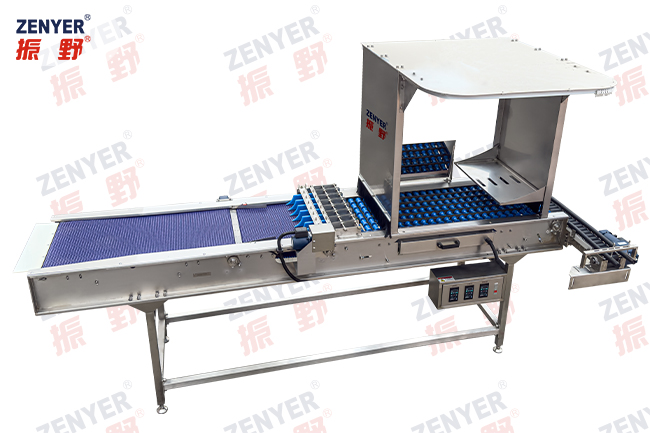

  The 605A Accumulator includes a candling booth with LED lights, a cover, and a mirror, allowing operators to manually remove cracked, dirty, or otherwise unqualified eggs before they proceed to washing and grading.

• Accurate Grading with Manual Collection
  The 104B Egg Grader sorts eggs into 6 sizes with an accuracy of ±1 gram. Graded eggs flow to a manual collection table, where operators can gather eggs from each channel and pack them into trays or cartons.

Egg Washing Grading Line
Model	ZYL-JS1-D1-C
Product code	302AS
Capacity	10,000 eggs/hour
Power*	11.57 KW
Voltage	380-415V, 3-phase, 50 HZ
Dimension  (L*W*H)	11.5*3.9*2 M
Net weight	1550 kg
Gross weight	2240 kg
Function	Accumulating, candling,  sanitizing, egg washing,  drying, grading & counting,  manual collection, and optional vacuum egg lifter, UV and egg printer

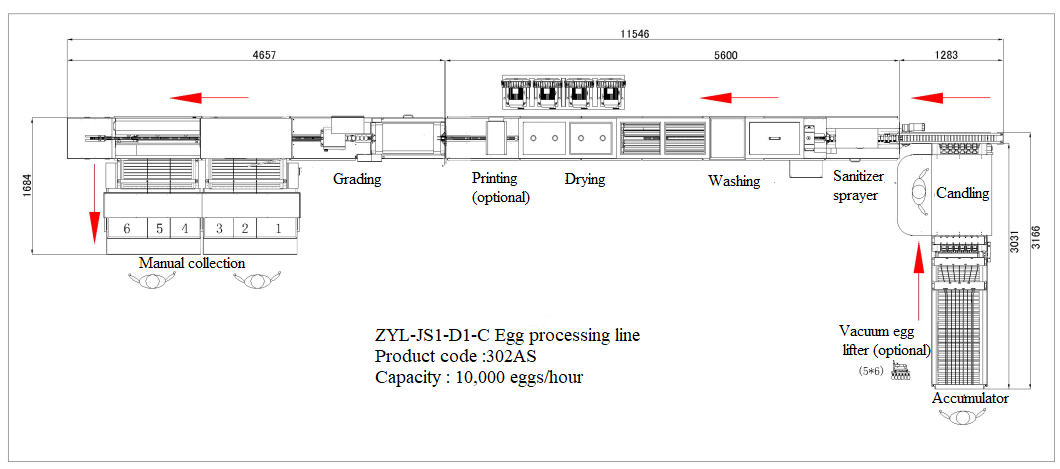

* Power, net weight and gross weight are calculated according to the floor plan below.

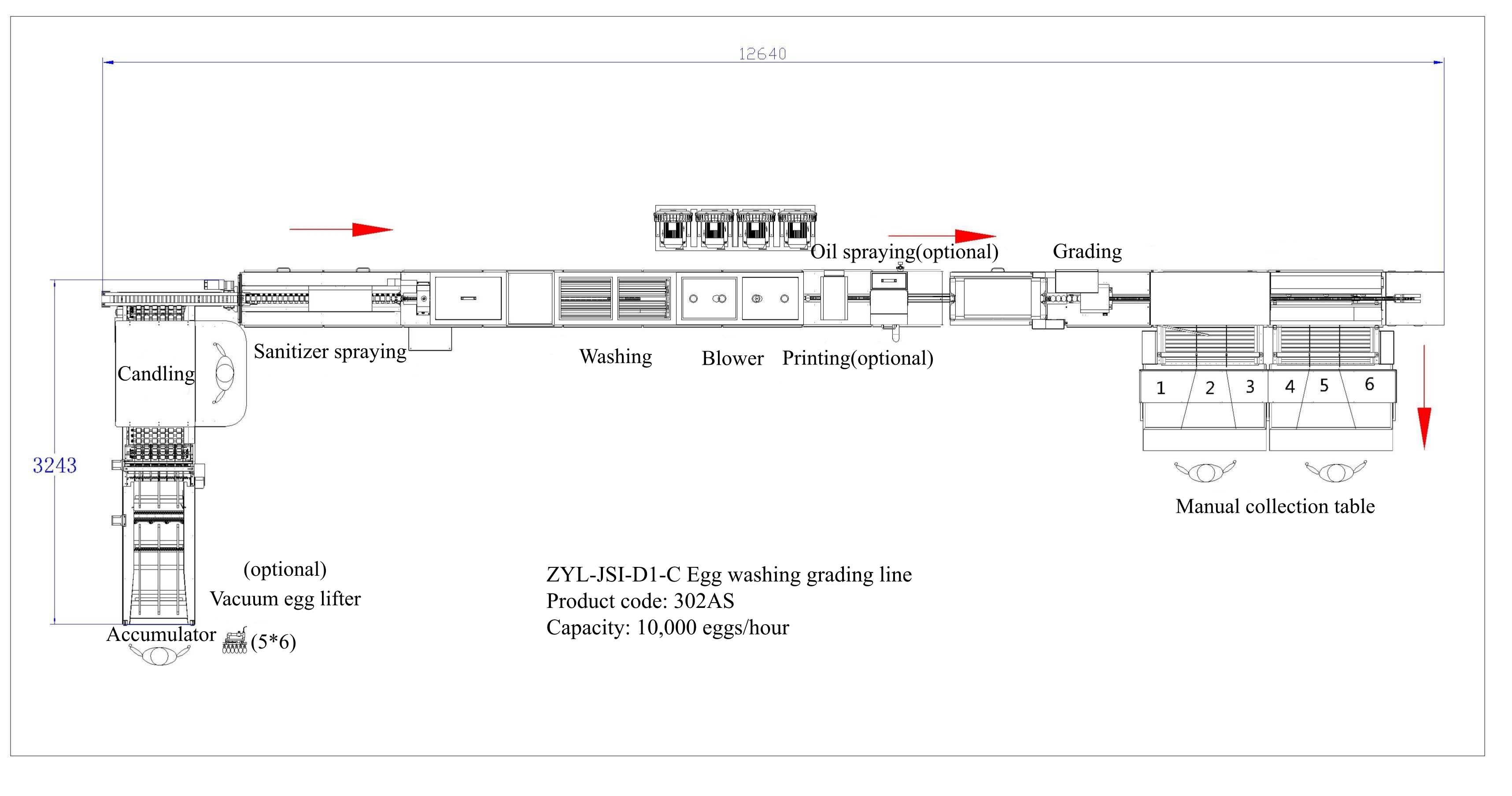

 ZENYER 302AS Egg washing grading line

 Price of ZENYER 302AS egg washing grading line: $99,000.00

Consist of:

 -- The 605A accumulator(6-row candler included)

 -- The 202A egg washer main machine

 -- The 104B egg grader main machine



Optional:

-- The 401H egg printer: Only $6,600.00
-- The 602 vacuum egg lifter(manual loading): Only $2,750.00
OR

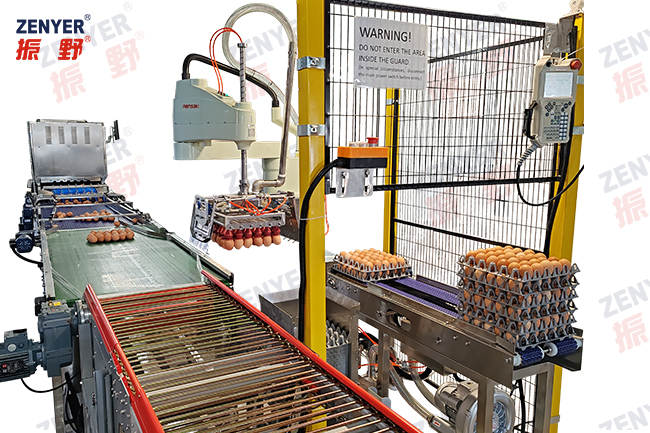

-- The 618 Robotic Loader(auto loading): Only $40,700.00

-- Utra Violet Disinfection: Only $1,100.00

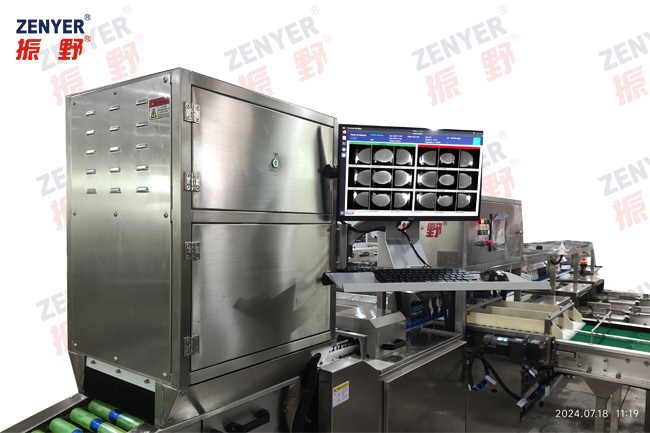

-- The 410X Visual AI Detector: Only $60,500.00

Price including GST

(Pre-Order)

ZYL-JS1-D1-C Egg Washing Grading Line（302AS) Brochure
