Name: ZYL-JS1-D1-4P Egg Washing Grading Line (302AP)
Product Code: 302AP
Capacity: 10,000 eggs/hour
Function: Accumulation, candling, washing, drying, grading and auto packing
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
ZENYER 302AP Egg Washing, Grading & Packing Line – Features & Benefits
- Durable Stainless Steel Construction
Built with high-quality stainless steel for excellent durability, corrosion resistance and hygiene, ensuring reliable long-term operation in demanding commercial egg-processing environments.
- Fully Integrated Washing, Grading & Packing Solution
The ZENYER 302AP combines three major components:
Together, they provide a complete egg washing grading packing solution with a rated capacity of 10,000 eggs per hour.
- Compact, Space-Saving Design
The 104AP combines an inclined tray loading and auto-packing system with a single-lane electronic egg grader. Its compact layout occupies less floor space than a conventional automatic grading and packing system, making the 302AP particularly suitable for egg farms and packing facilities where production space is limited.
- Comprehensive Processing Functions
Performs egg accumulating, candling, sanitizing, brush washing, drying, orientation, electronic grading, counting and automatic packing in one streamlined production line.
- Optional upgrades include:
- Enhanced Built-in Candling Inspection
The ZENYER 605AS Accumulator includes a candling booth with a cover and mirror, allowing operators to inspect the eggs and manually remove cracked, dirty or otherwise unsuitable eggs before washing and grading.
- Automatic Sanitizing, Washing & Drying
The 202A Egg Washer automatically sanitizes the eggs before cleaning them with rotating brushes and warm water. Excess water is then removed before the eggs pass through the drying system, preparing them for accurate grading and packing.
- Automatic Egg Orientation
After washing and drying, the eggs are automatically oriented with the air cell facing upward before grading and packing. Correct orientation improves product presentation and helps maintain egg quality during storage.
- High-Accuracy Electronic Grading
Each egg is individually weighed using a precise electronic weighing system and sorted according to the selected weight specifications. With a grading accuracy of ±1 gram, the system delivers consistent and reliable results for every production batch.
- Two-Step Automatic Packing
Graded eggs are first transferred into the drop-set cups. Once the required number of eggs has accumulated, the drop set releases them simultaneously into the individual cells of the egg tray or carton.
This two-step packing process ensures accurate egg placement and smooth, consistent packing.
- Multiple Packaging Options
The 104AP automatic packing system supports the following packaging formats:
- Labour-Saving Inclined Packing System
Operators simply place empty cartons or trays onto the inclined loading conveyor and collect the filled packages from the same side of the machine.
This convenient layout allows one operator to manage both empty-package loading and filled-package collection, reducing labour requirements and operating costs while improving packing efficiency and consistency.
- User-Friendly Controls
The ZENYER 202A Egg Washer features a free-standing control panel, while the ZENYER 104AP Egg Grader is equipped with a colour touchscreen and PLC control system.
Operators can conveniently set grading specifications, calibrate weighing accuracy, adjust packing parameters and monitor production data through the touchscreen. Both systems are interlock-controlled for safe and synchronized operation.
- Optional UV Disinfection
An optional ultraviolet disinfection system can be installed to further sanitize the eggshell surface, enhancing food safety and farm biosecurity.
- Remote Monitoring & Diagnostics – Wi-Fi-Ready PLC Control System
The system is supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet.
In the event of a software-related issue, the ZENYER service team can remotely access the control system—with the customer’s permission—to diagnose problems and provide technical support. This helps minimize downtime and maintain continuous, efficient operation.
| Egg Washing Grading Line | |
| Model | ZYL-JS1-D1-4P |
| Product code | 302AP |
| Capacity | 10,000 eggs/hour |
| Accuracy | ±1 g |
| Grade | 5 |
| Power* | 15.52 KW |
| Voltage | 380-415V, 3-phase, 50HZ |
| Dimension (L*W*H) | 14.7*5.9*2 M |
| Net weight* | 2300 kg |
| Gross weight* | 3300 kg |
| Function | Accumulating, candling, sanitizing, egg washing, drying, orientation, grading, counting, auto packing and manual packing, optional vacuum egg lifter, UV sterilization, egg printer and visual AI detection |

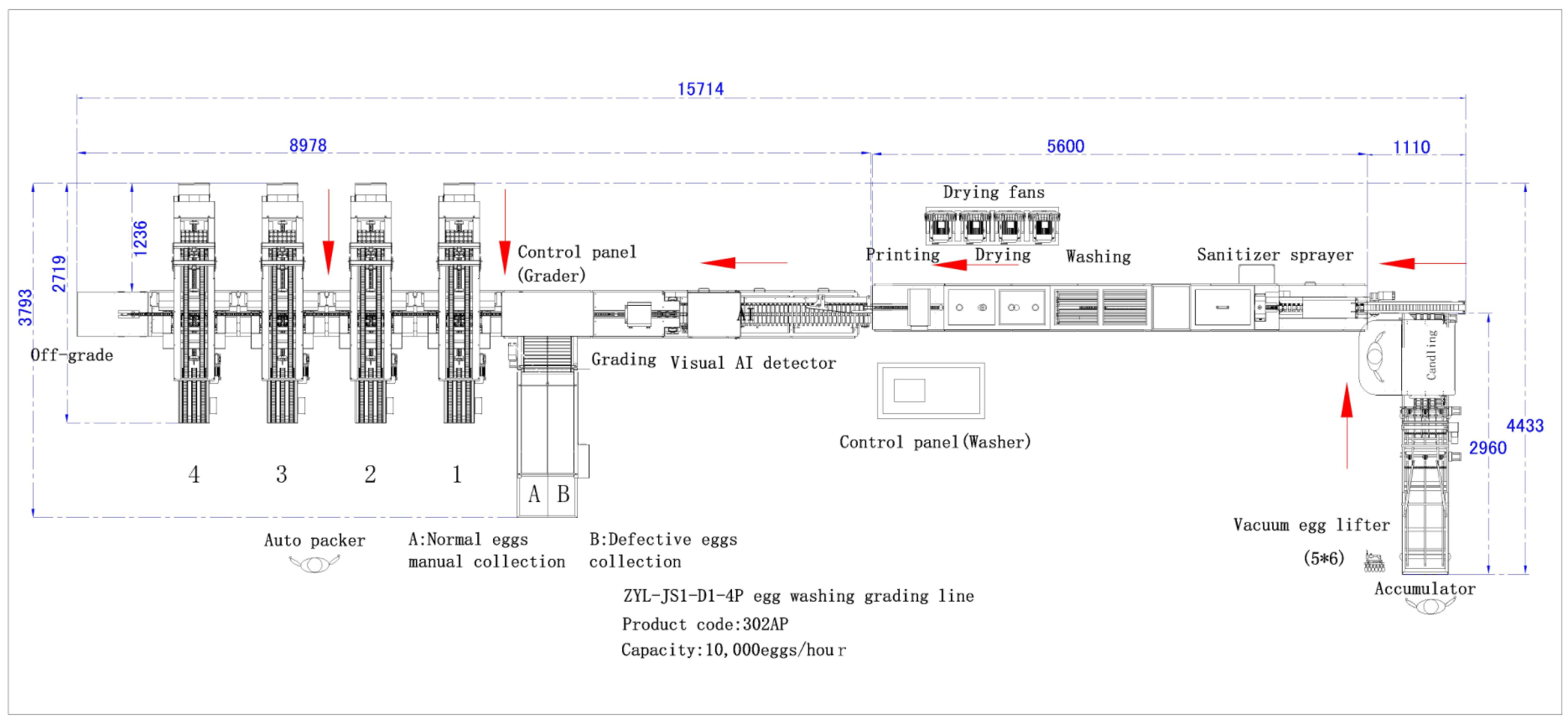

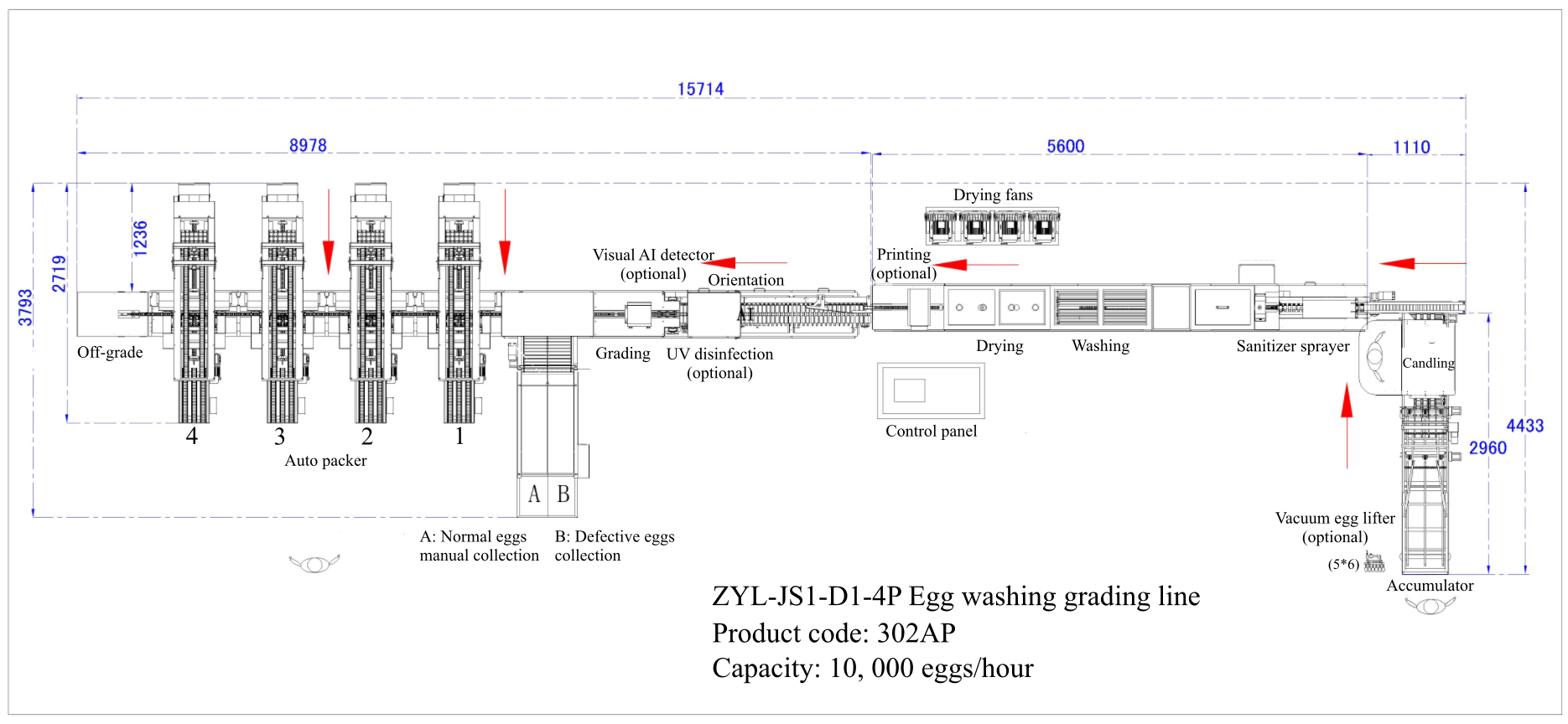

* Power, net weight and gross weight are calculated according to the floor plan below.
Price of ZENYER 302AP egg washing grading line: $209,000.00
Consist of:
-- The 605AS accumulator (3-row candler included)
-- The 104AP egg grader (auto-packer (4) + manual packing lane (1))
(Pre-Order)
Optional:
-- The 401H Egg printer: Only $6,600.00
-- The 602 Vacuum egg lifter(manual loading):
OR
-- The 618 Robotic Loader(auto loading): Only $55,000.00
-- Utraviolet Disinfection (single row): Only $1,100.00
-- The 410X Visual AI Detector: Only $66,000.00
Price including GST
ZYL-JS1-D1-4P Egg Washing Grading Line (302AP) Brochure
