Name: ZYL-JS1-D1-3ZP Egg Washing Grading Line (302A)
Product Code: 302A
Capacity: 10,000 eggs/hour
Function: Accumulation, candling, washing, drying, grading and auto packing
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
ZENYER 302A Egg Washing & Grading Line – Features & Benefits
Durable Stainless Steel Construction
Built with stainless steel for superior durability, corrosion resistance, and hygiene, ensuring reliable long-term operation.
Fully Integrated Washing & Grading Solution
The ZENYER 302A combines three major components:
ZENYER 605A Accumulator
ZENYER 202A Egg Washer
ZENYER 104A Egg Grader
Together, they deliver a complete egg processing solution with a capacity of 10,000 eggs per hour.
Comprehensive Processing Functions
Performs egg accumulating, candling, sanitizing, brush washing, drying, orientation, grading, counting, auto-packing, and manual collection all in one streamlined system.
Optional upgrades include:
Vacuum Egg Lifter for improved loading efficiency
UV Disinfection for enhanced food safety
Egg Printer for date coding and traceability
User-Friendly Controls
The 202A Egg Washer features a free-standing control panel.
The 104A Egg Grader is equipped with a color touchscreen control panel.
Both systems are interlock-controlled for synchronized operation and safety.
Enhanced Candling Inspection
The 605A Accumulator includes a candling booth with cover and mirror, allowing operators to manually remove cracked, dirty, or otherwise unqualified eggs before washing and grading.
Flexible Packing Options
Equipped with 3 auto-packers, with the option to add a 4th auto-packer if needed.
Auto-packers support 10, 12, 15, 18, and 30-egg cartons/trays (each auto-packer handles one egg size).
The manual packing lane can pack up to 2 egg sizes simultaneously, providing additional flexibility.
Optional UV Disinfection
An available Ultra-Violet disinfection system sanitizes eggshells for maximum food security.
| Egg Washing Grading Line | |
| Model | ZYL-JS1-D1-3ZP |
| Product code | 302A |
| Capacity | 10,000 eggs/hour |
| Accuracy | ±1 g |
| Grade | 5 |
| Power* | 15.52 KW |
| Voltage | 380-415V, 3-phase, 50HZ |
| Dimension (L*W*H) | 14.7*5.9*2 M |
| Net weight* | 2920 kg |
| Gross weight* | 4300 kg |
| Function | Accumulating, candling, sanitizing, egg washing, drying, orientation, grading, counting, auto packing and manual packing, and optional vacuum egg lifter, UV sterilization and egg printer |
* Power, net weight and gross weight are calculated according to the floor plan below.
Zenyer 302A egg washing grading line

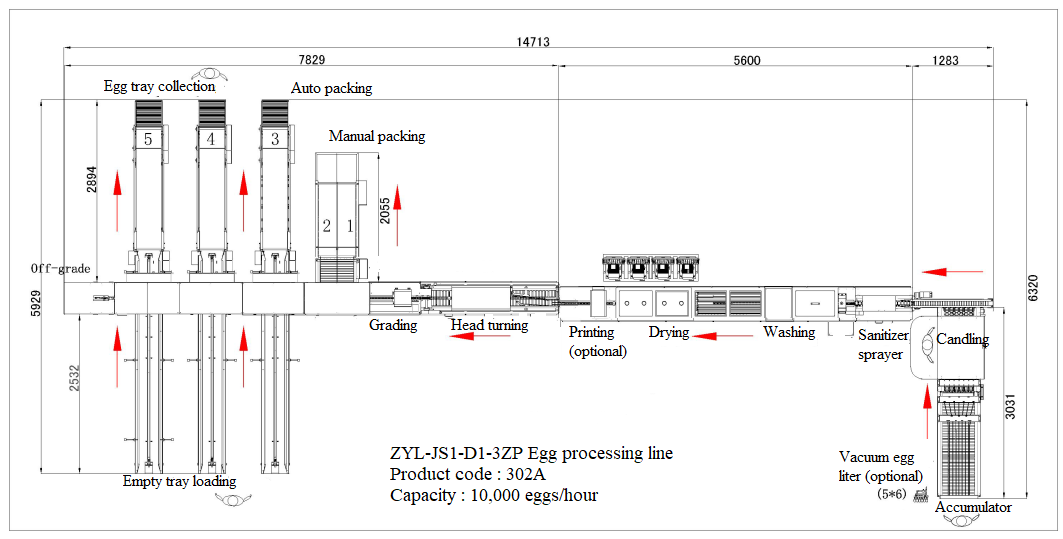

Zenyer 302A floor plan-right hand side

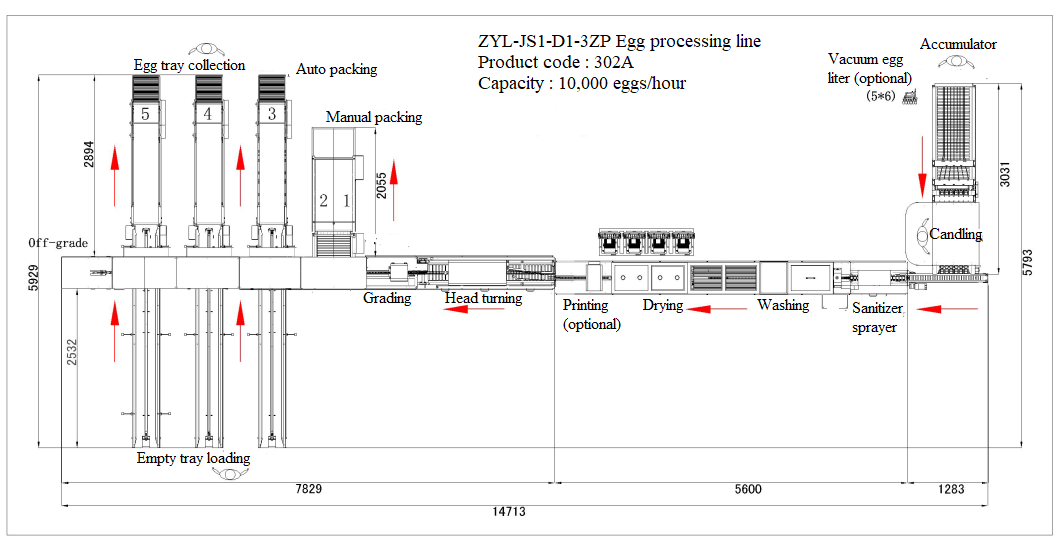

Zenyer 302A floor plan-left hand side

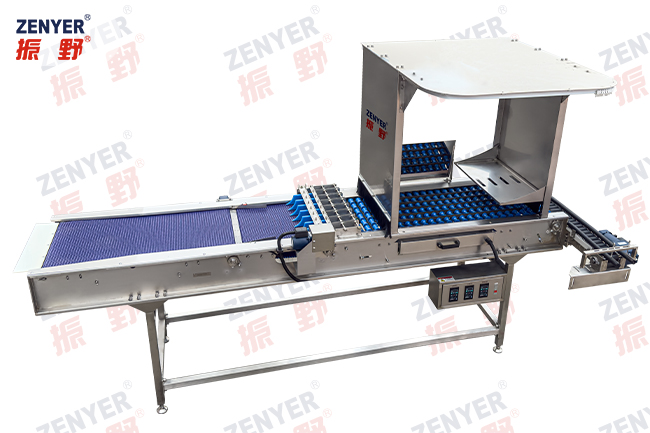

Zenyer 605A accumulator (with a 6-row candler)

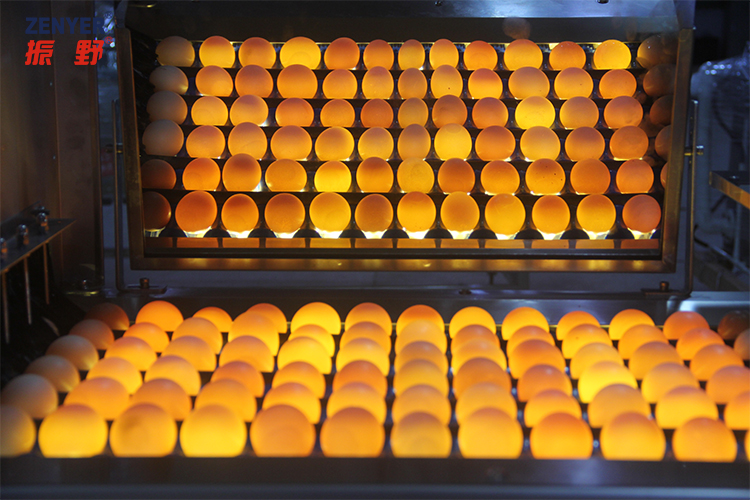

6-row candler with a candling cover and mirror
Zenyer 602 vauum egg lifter (optional)

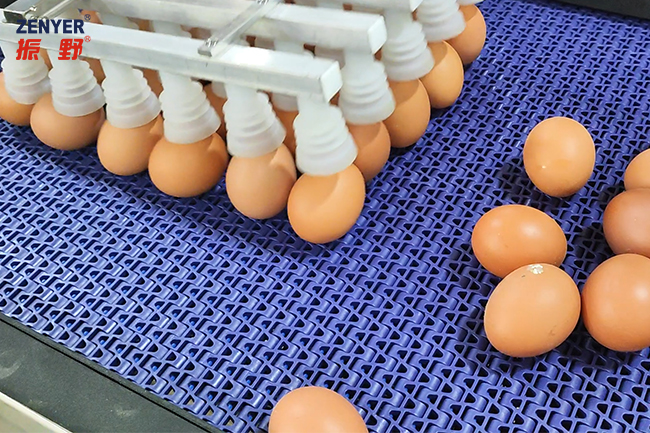

Loading 30 eggs per time on the accumulator via a Zenyer 602 vacuum egg lifter

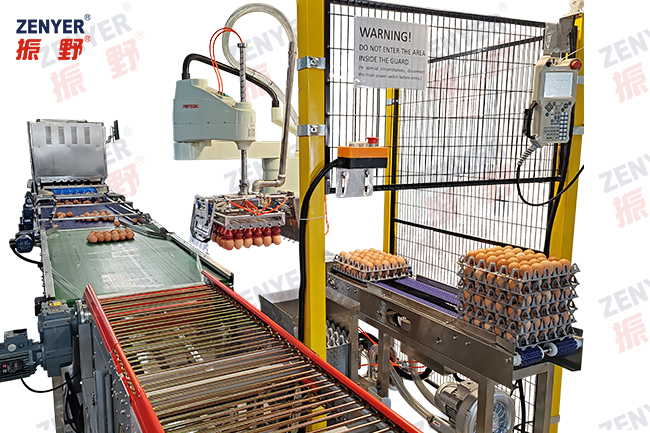

The Zenyer 618 automatic egg loader (optional)
Zenyer 202A egg washer (compitable with the 605A accumulator and manual collection conveyor)
.jpg)
Proportional doser for sanitizing

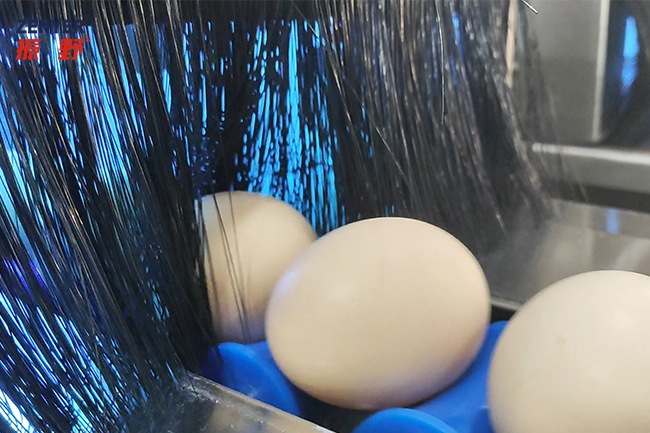

Egg washing with brushes and warm water
Remarkable Drying system

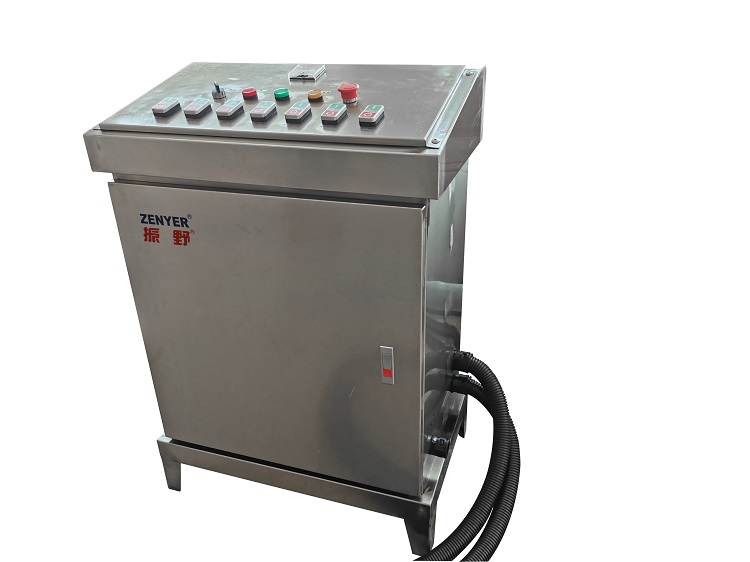

Control panel (Egg washer)
Zenyer 104A egg grader

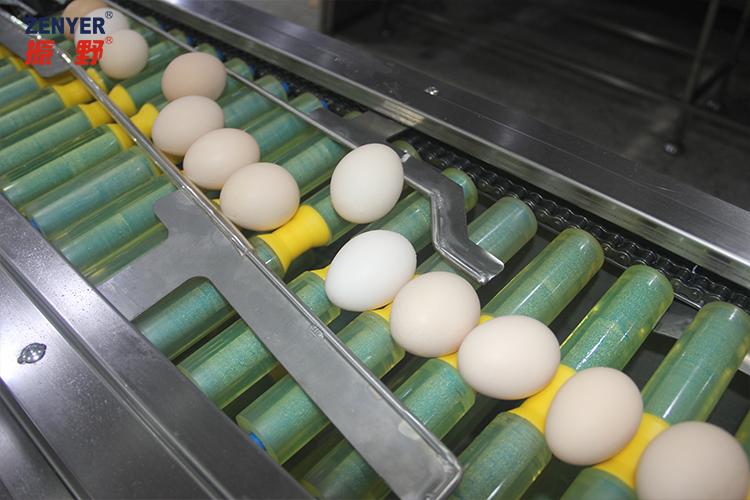

Head turning/Orienter

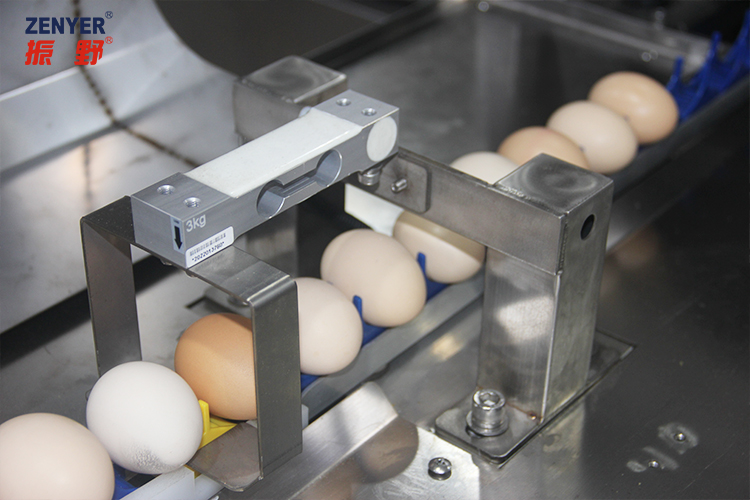

Electronic weighing

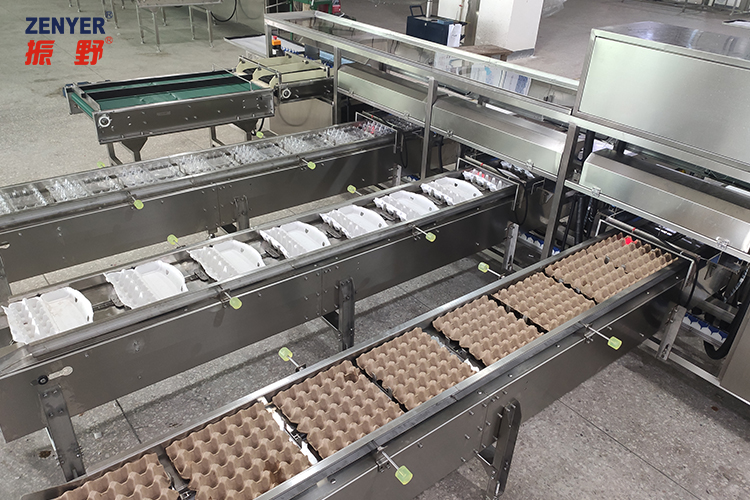

Empty tray loading

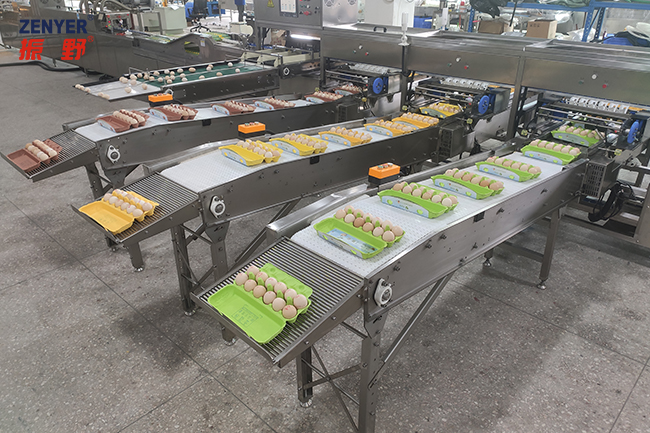

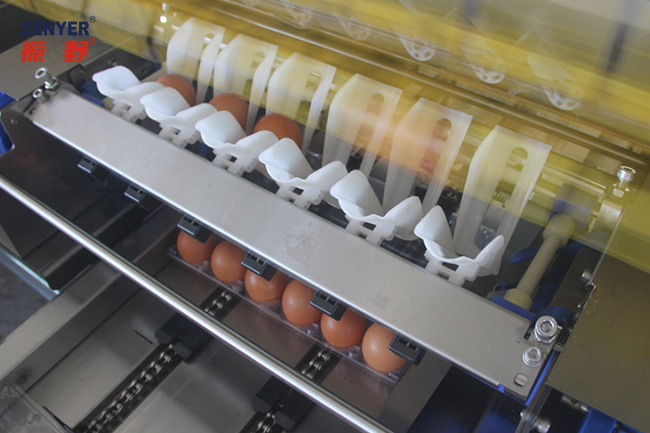

Automatic packing
Loaded egg tray collection
Manual packing lane

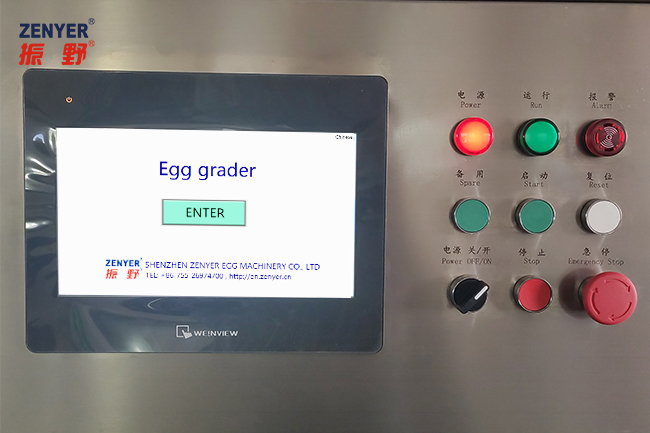

Control panel (Egg grader)
Zenyer 401H egg printer (optional)
UV disinfection (optional)

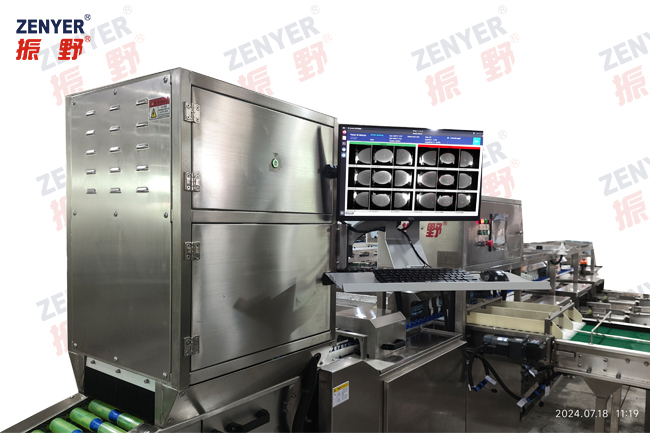

ZENYER single row Visual AI detector (optional)
Price of ZENYER 302A egg washing grading line: $176,000.00
Consist of:
-- The 605A accumulator (6-row candler included)
-- The 104A egg grader (auto-packer (3) + manual packing lane (1))
Optional:
-- The 401H Egg printer: Only $6,600.00
-- The 602 Vacuum egg lifter(manual loading):
OR
-- The 618 Robotic Loader(auto loading): Only $40,700.00
-- Utra Violet Disinfection: Only $1,100.00
-- The 410X Visual AI Detector: Only $60,500.00
Price including GST
(Pre-Order)
ZYL-JS1-D1-3ZP Egg Washing Grading Line (302A) Brochure
