Egg Washing Grading

Name: ZYL-JS1-J3 Egg Washing Grading Line (301A)

Product Code: 301A

Capacity: 5,000 eggs/hour

Function: Sanitization, washing, drying, candling and grading

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details

ZENYER 301A Egg Washing & Grading Line – Features & Benefits

  • Durable Stainless Steel Construction
    Built from stainless steel for maximum durability, corrosion resistance, and hygiene, making it ideal for continuous farm or packing station use.

  • Complete Egg Washing & Grading Solution
    The ZENYER 301A integrates three key components:

    • ZENYER 201A Egg Washer

    • 604A Accumulator

    • 102B Egg Grader
      This combination provides a seamless process from loading through to grading, with a capacity of 5,000 eggs per hour.

  • All-in-One Functionality
    Performs single roller conveyor loading, sanitizing, brush washing, drying, candling, and grading in a single continuous workflow. Optional add-ons include:

    • 605AS Accumulator (upgraded model for smoother egg flow)

    • 602 Vacuum Egg Lifter for reduced manual handling

    • Egg Printer for date coding and traceability

  • Efficient Egg Loading
    Eggs are vacuum-lifted and loaded onto the 605AS accumulator using the 602 vacuum lifter. The accumulator then automatically transports eggs into the single-row washer, significantly reducing labor input.

  • Labor-Saving Design
    Requires only half the usual labor for egg loading when used with the accumulator and vacuum egg lifter, improving efficiency and reducing operational costs.

  • Flexible Installation Options
    Can be installed in a straight line or at a right/left-hand angle to suit the customer’s facility layout.

Egg washing grading line

 Model

ZYL-JS1-J3

Product code

301A

Capacity

5,000 eggs/hour

Power*

8.27 KW

Voltage*

220~240V, single phase, 50HZ
Or
380-415V, 3-phase, 50HZ

Dimension(L*W*H)

9.0*1.7*1.8 M

Net weight*

910 kg

Gross weight*

1310 kg

Function

Roller conveyor loading, sanitizing, washing, drying, candling, grading, and optional accumulator, vacuum egg lifter and egg printer

* Power, net weight and gross weight are calculated according to the floor plan below.
 ZENYER 301A Egg washing grading line

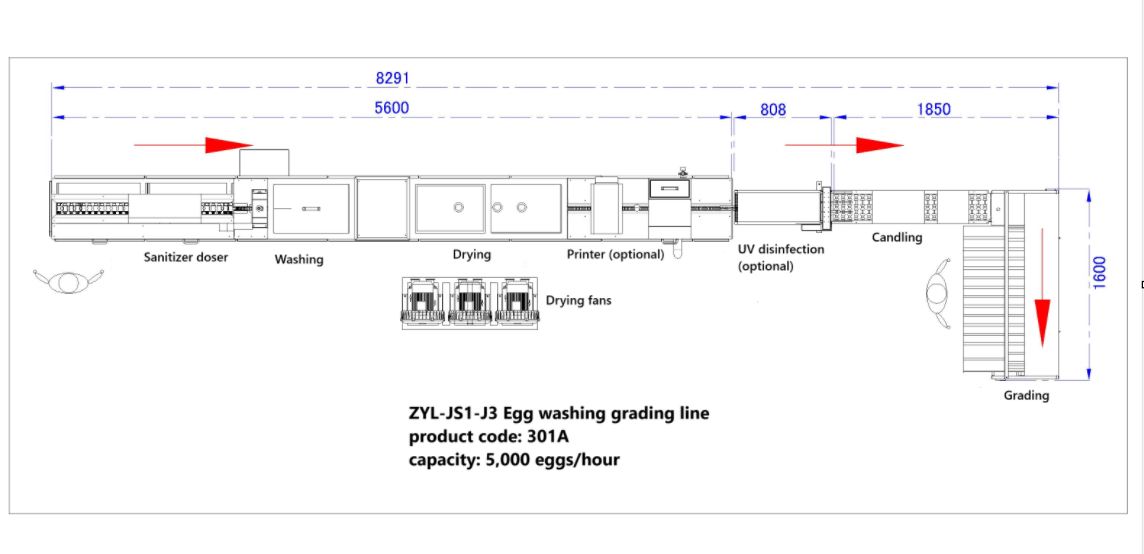

Zenyer 301A floor plan (straight line layout)

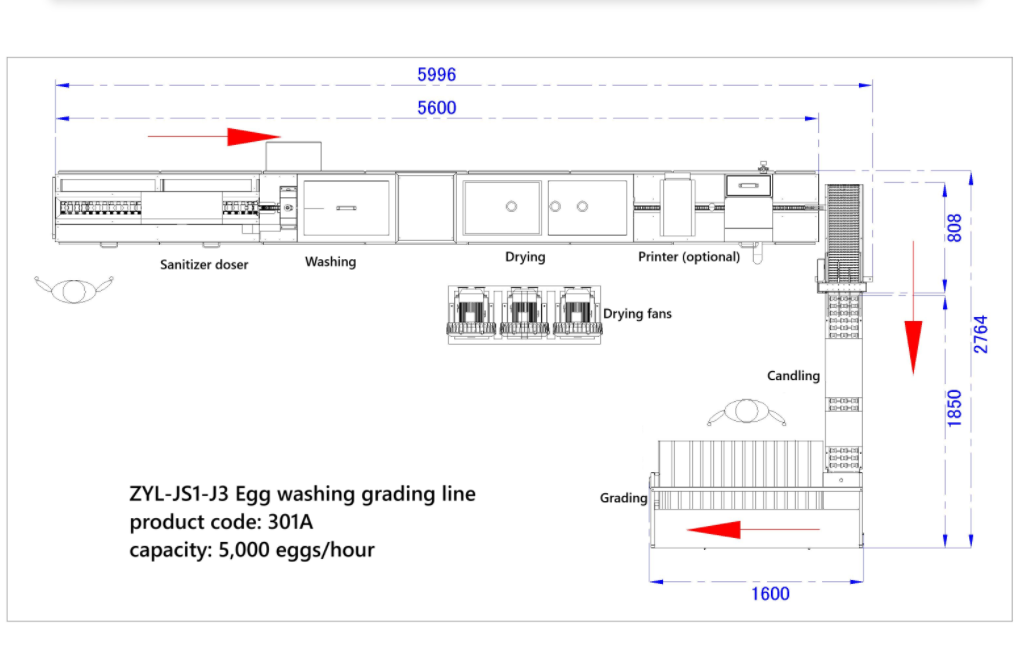

Zenyer 301A floor plan (a 90-degree turn layout)

Zenyer 201A egg washer

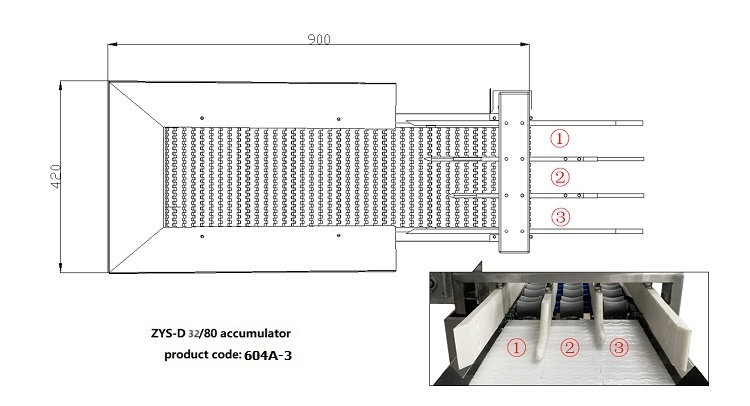

Zenyer 604A accumulator (with a 3-row divider)

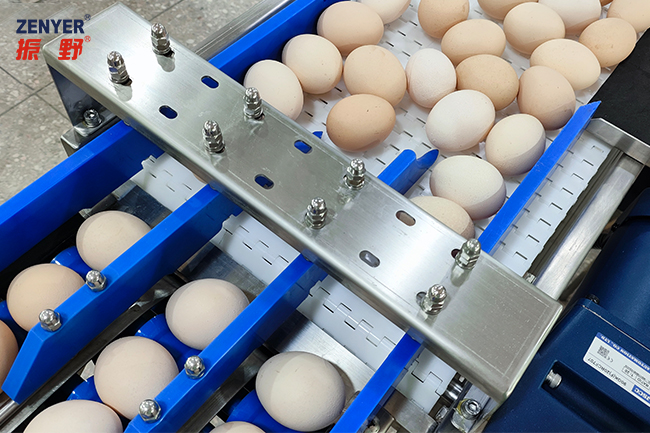

A 3-row divider connects to the 3-row feeding roller of the 102B egg grader

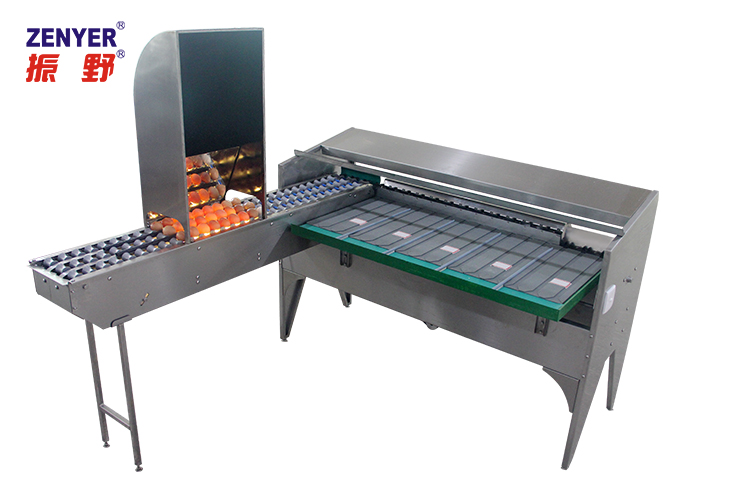

Zenyer 102B egg grader

Zenyer 401H egg printer (optional)

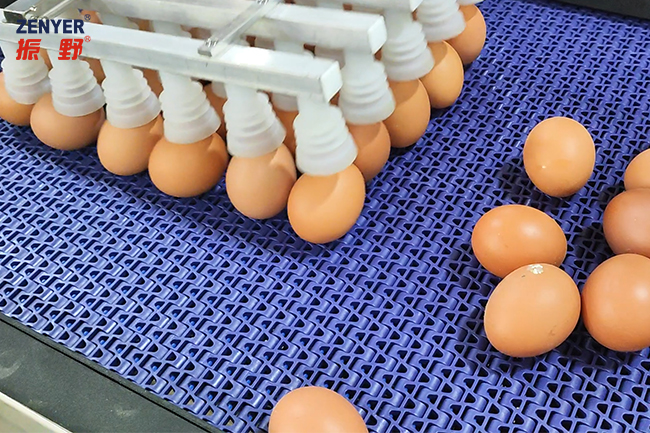

Zenyer 602 vacuum egg lifter (optional)
Zenyer 605AS accumulator (optional)Loading 30 eggs per time on the accumulator via the Zenyer 602 vacuum egg lifter

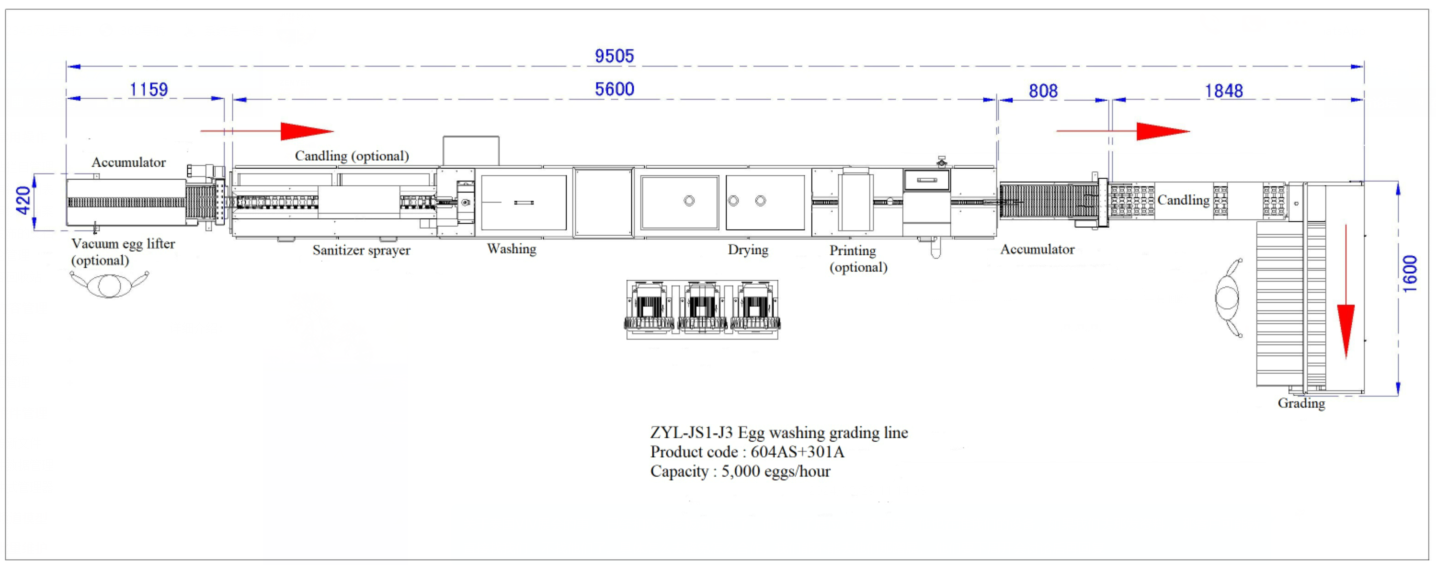

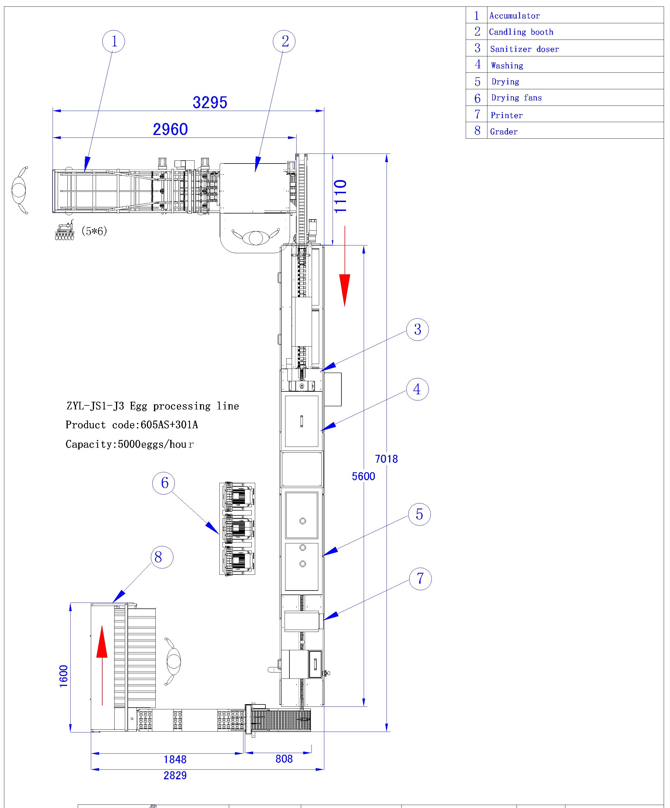

Floor plan (605AS+301A line)

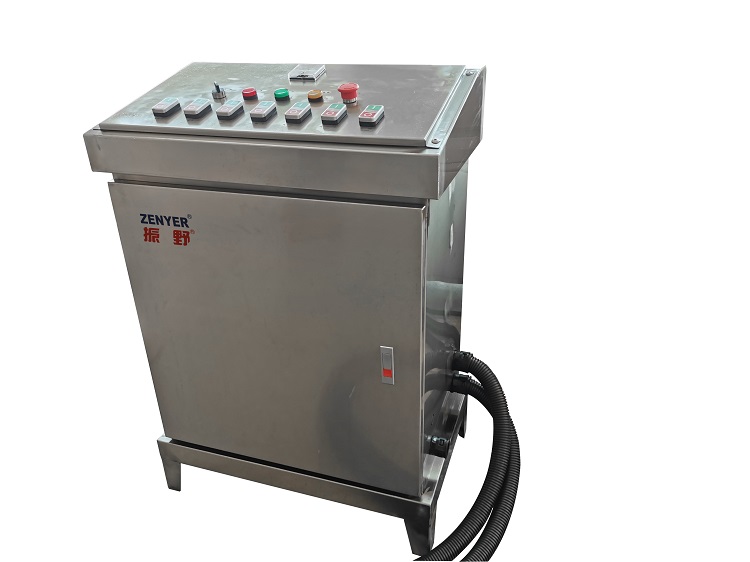

Free standing control panel



Price of ZENYER 301A egg washing grading line: $56,100.00

Consist of:

-- The 201A egg washer

-- The 604A accumulator

-- The 102B egg grader (Candler included)



Option:

-- The 401H Egg printer: Only $6,600.00
-- The 602 Vacuum egg lifter: Only $2,750.00

-- The 605AS accumulator(3-row candler included): Only $16,500.00
-- The 400X Visual AI Detector: Only $41,800.00
Price including GST

(Pre-Order)

  •
  • * standard configuration is the three-phase power, please remind us if you need the single phase power.
  • * The default direction of roller conveyor of the egg grader is set for the left-hand side version, please remind us if you require a right-hand side version instead.



ZYL-JS1-J3 Egg Washing Grading Line (301A) Brochure
