Egg Washing Grading

Name: ZYL-JS1-J2 Egg Washing Grading Line (300A)

Product Code: 300A

Capacity: 3,000 eggs/hour

Function: Sanitization, washing, drying, candling and grading

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details

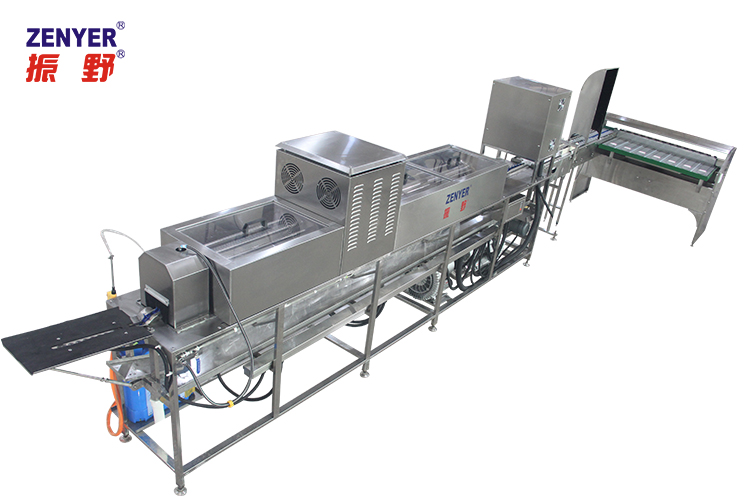

ZENYER 300A Egg Washing & Grading Line – Features & Benefits

  • New 2024 Model – Stronger & More Hygienic
    Constructed entirely from stainless steel for excellent durability, corrosion resistance, and hygiene, making it ideal for modern egg processing operations.

  • Complete Egg Washing & Grading Solution
    The ZENYER 300A combines three key components into one efficient system:

    • ZENYER 200A Egg Washer

    • 604A Accumulator

    • 101B Egg Grader
      Together, they provide a fully integrated process from loading to grading.

  • All-in-One Processing Functions
    Performs roller conveyor loading, candling, sanitizing, washing, drying, second candling, grading, and optional egg printing – all in one continuous operation with a capacity of 3,000 eggs per hour.

  • Labor-Saving Operation
    Requires only half the normal labor for egg loading when paired with the 604AS accumulator and 602 Vacuum Egg Lifter, reducing manual handling and increasing productivity.

  • Efficient Egg Loading
    Eggs are vacuum-lifted in batches of 30 onto the accumulator, which then transfers them to the single-row washing machine automatically.

  • Flexible Installation Layout
    Can be installed in either a straight-line configuration or a right-angle layout to suit different floor plans and space requirements.

Egg Washing Grading Line

 Model

ZYL-JS1-J2

Product code

300A

Capacity

3,000 eggs/hour

Power

6.02 KW

Voltage*

220-240V, single phase, 50HZ
Or
380-415V, 3 phase, 50HZ

Dimension

(L* W* H)

6.6*1.57 *1.6 M

Net weight

580 kg

Gross weight

847 kg

Function

Roller conveyor loading, candling, sanitizing, washing, drying,  accumulating, candling and grading, and optional vacuum egg lifter & accumulator for egg loading, egg printer for egg printing

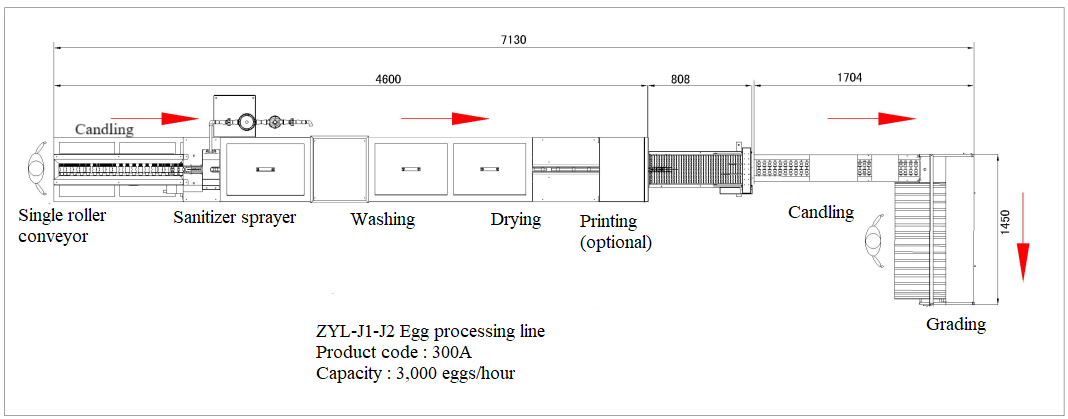

300A floor plan (straight line)

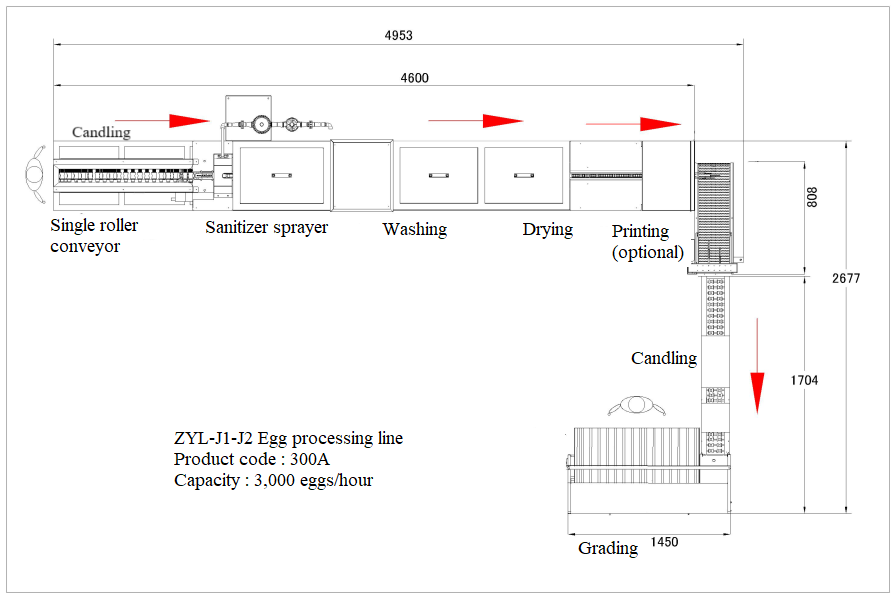

300A floor plan (90-degree turn)

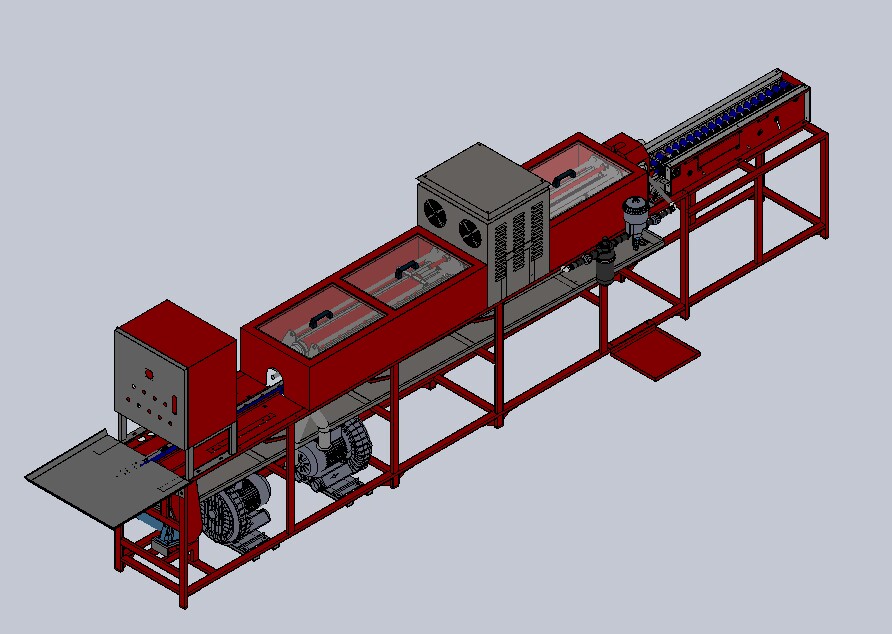

2024 new version of Zenyer 200A egg washer
New Version of the 200A egg washer

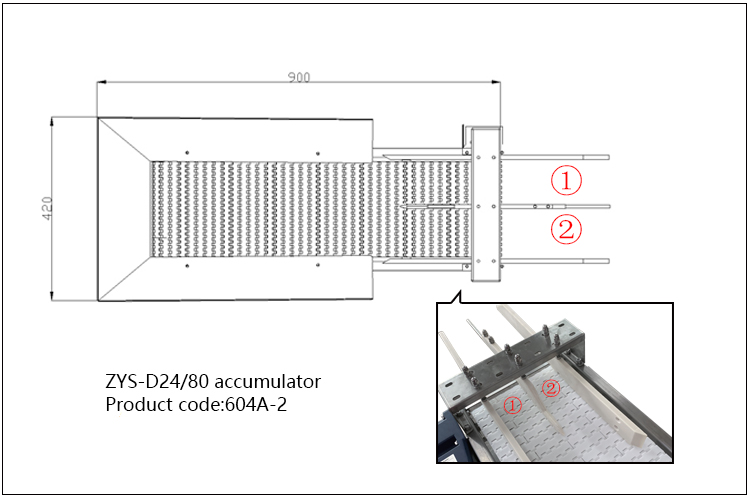

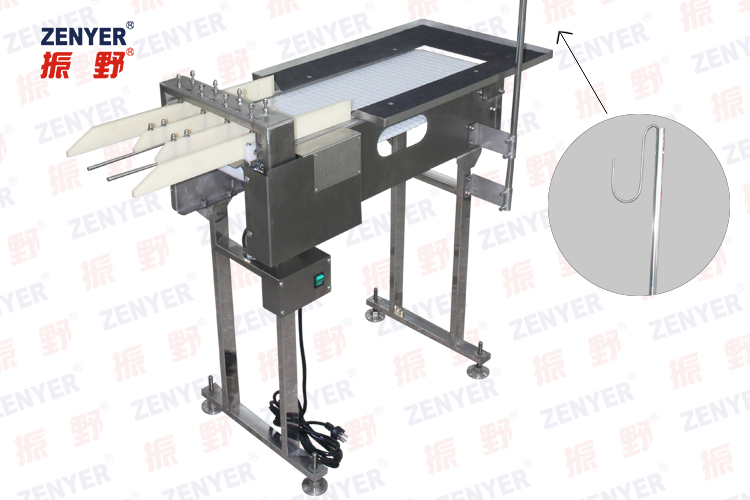

Zenyer 604A accumulator (with a 2-row divider)

A 2-row divider connects to the 2-row feeding roller of the 101B egg grader

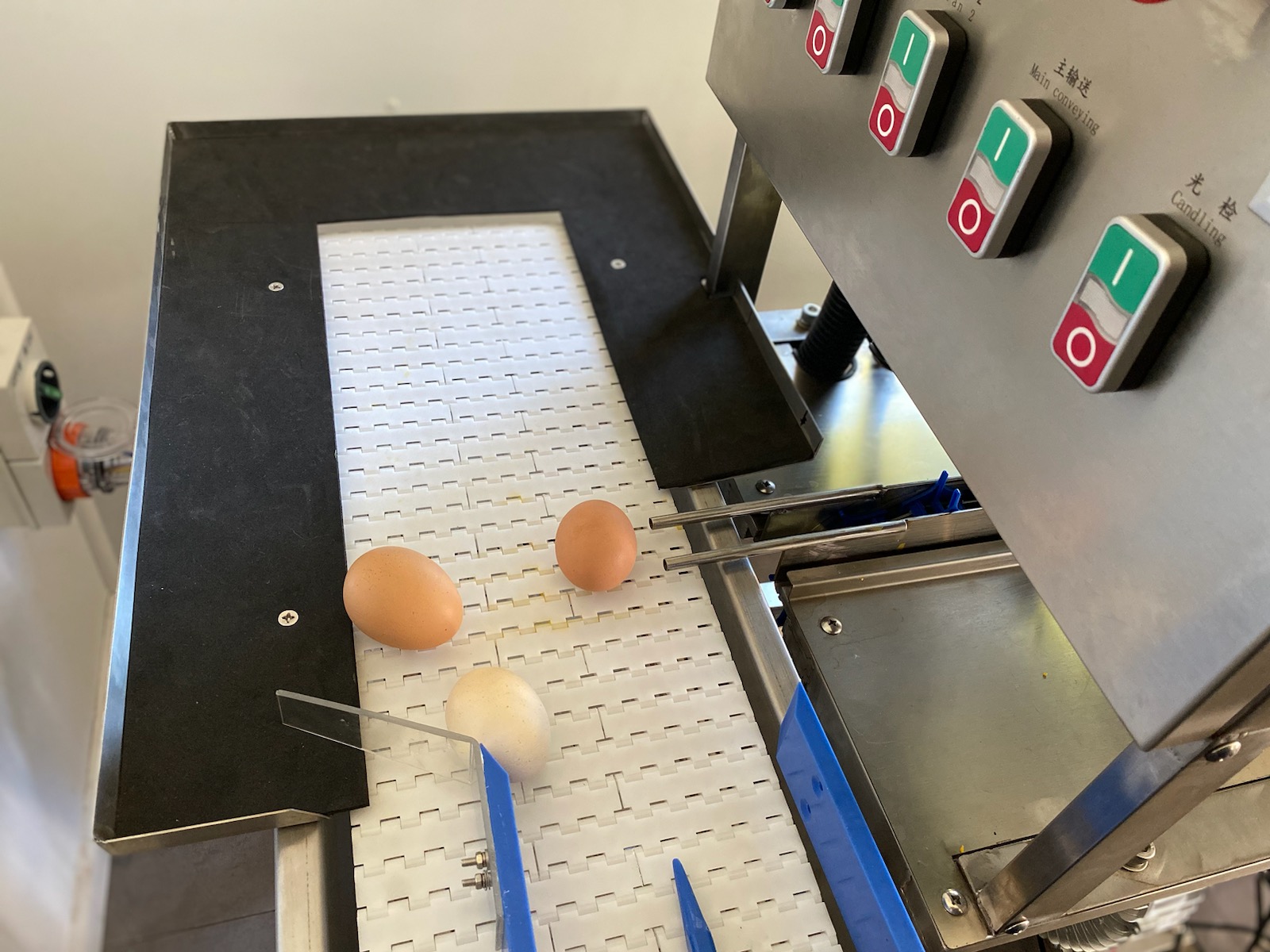

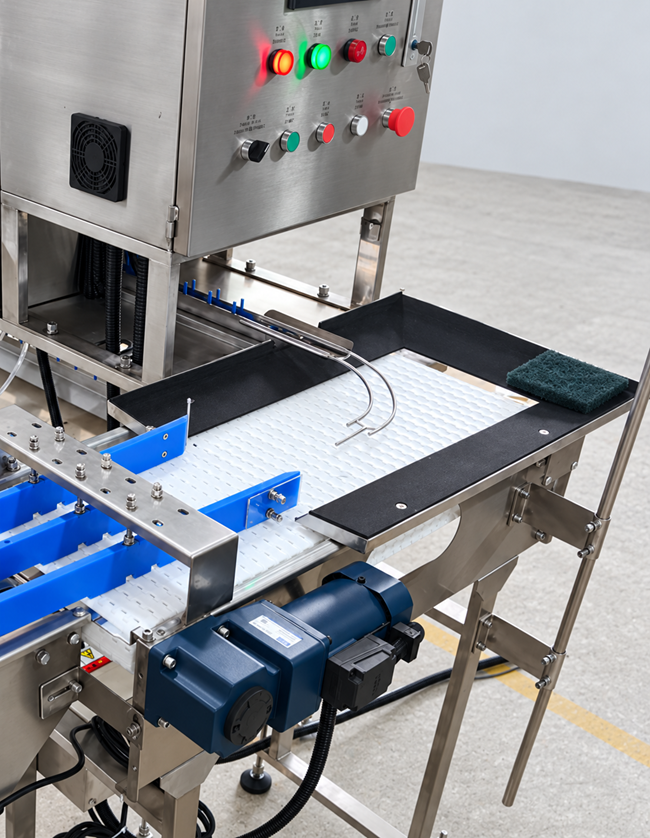

The 604A connects to the egg washer with a 90-degree turn

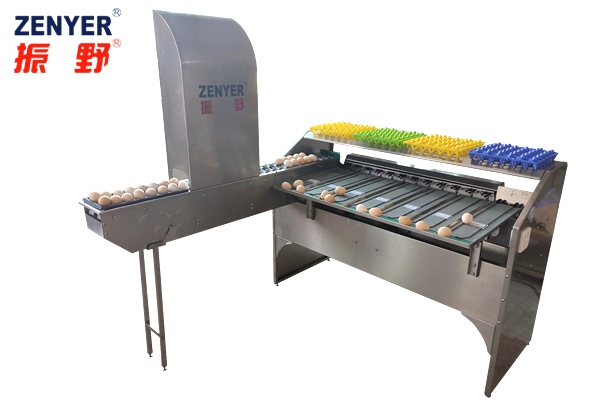

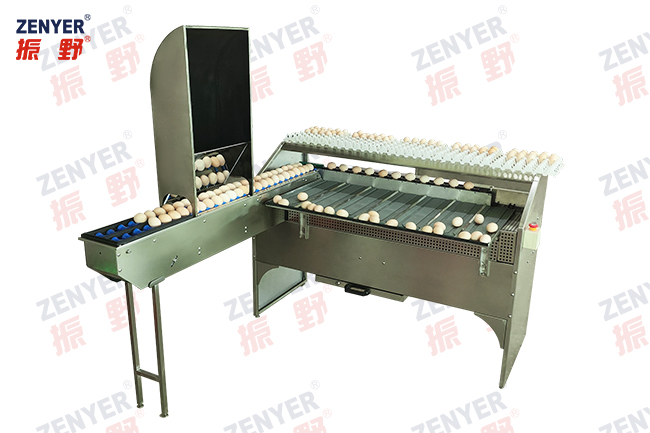

Zenyer 101B egg grader
Zenyer 401H egg printer (optional)
Zenyer 602 vacuum egg lifter (optional)


The 604AS accumulator (optional)

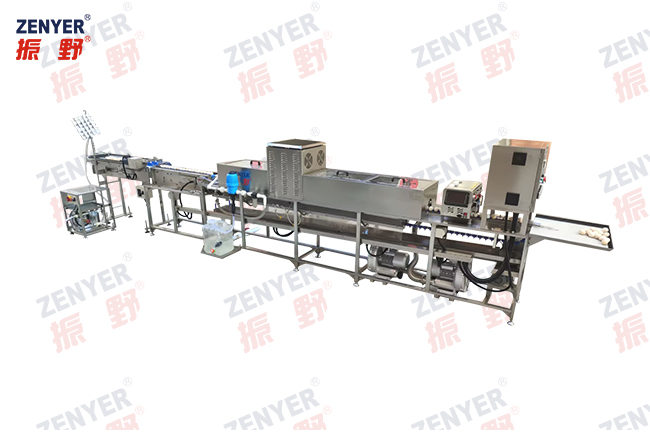

604AS accumulator connects to the Zenyer 300A

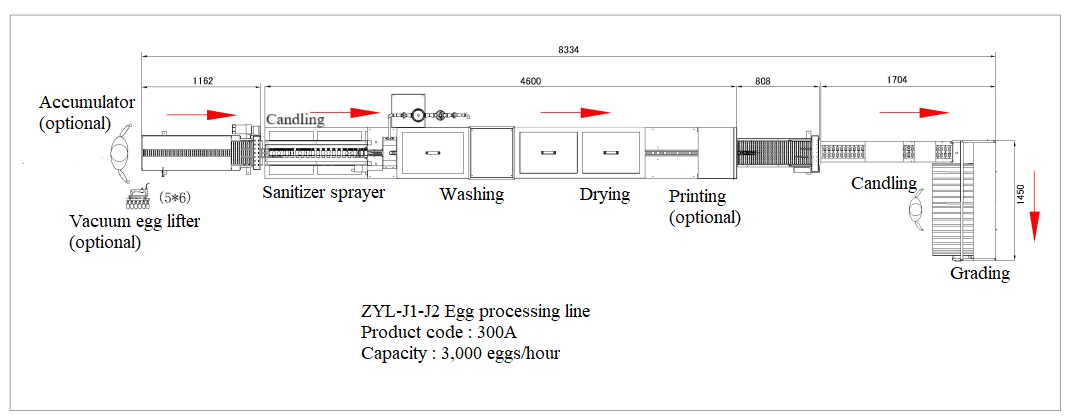

 Floor plan (Straight line, compatible with 604AS accumulator)

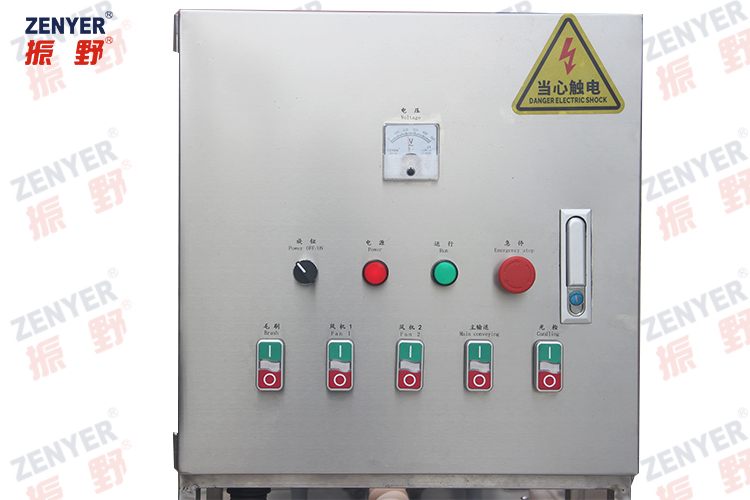

Control panel


Price of ZENYER 300A egg washing grading line: $42,900.00

Consist of:

-- The 200A egg washer

-- The 604A accumulator

-- The 101B egg grader (Candler included)



Optional:

-- The 401H Egg printer: Only $6,600.00
-- The 602 Vacuum egg lifter: Only $2,750.00
-- The 604AS accumulator: Only $4,400.00
-- The 400X Visual AI Detector: Only $41,800.00

Price including GST

(Pre-order)

* standard configuration is the single-phase power,please remind us if you need the 3-phase power.

* The default direction of roller conveyor of the egg grader is set for the left-hand side version, please remind us if you require a right-hand side version instead.




ZYL-JS1-J2 Egg Washing Grading Line (300A) Brochure
