Name: ZYF-DS1-C Egg Grader (104B)
Product Code: 104B
Capacity: 10,000 eggs/hour
Function: Egg grading and manual collection
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
ZENYER 104B Egg Grader – Features & Benefits
Durable Stainless Steel Construction
Built with high-quality stainless steel for maximum durability and hygiene, ensuring reliable long-term use in demanding farm and packing environments.
Flexible Egg Loading Options
Includes egg grading, counting, and a manual collection table as standard.
Load eggs manually using the ZENYER 605A Accumulator and 602 Vacuum Egg Lifter (30 eggs per lift).
Alternatively, connect the accumulator to a rod conveyor directly from the chicken shed, allowing eggs to flow automatically into the accumulator for continuous operation.
High-Precision Electronic Grading
Sorts eggs into up to 6 grades using an electronic weighing scale with an accuracy of ±1 gram, delivering consistent and reliable results.
Smart Touchscreen Control Panel
Equipped with a color touchscreen control panel for easy operation. Allows users to set grading specifications, calibrate weighing accuracy, and monitor both total and per-size egg counts in real time.
Built-In Self-Diagnosis System
Automatically diagnoses potential malfunctions, helping to minimize downtime and ensure smooth operation.
Scalable for High-Volume Operations
Can be integrated with the ZENYER 202A Egg Washer to form the ZENYER 302AS Egg Washing & Grading Line, achieving a total capacity of 10,000 eggs per hour.
|
Egg Grader |
|
|
Model |
ZYF-DS1-C |
|
Product code |
104B |
|
Capacity |
10,000 eggs/hour |
|
Accuracy |
±1 gram |
|
Grades |
6 |
|
Power* |
1.27 KW |
|
Voltage |
220-240V, single-phase, 50HZ Or 380-415V, 3-phase,50HZ
|
|
Dimension (L*W*H) |
5.94*3.3*2 M |
|
Net weight* |
800 kg |
|
Gross weight * |
1130 kg |
|
Function |
Egg grading & counting,manual collection, and optional egg accumulator, vacuum egg lifter and egg printer |
(* Power, net weight and gross weight are calculated according to the floor plan below.)
ZENYER 104B egg grader

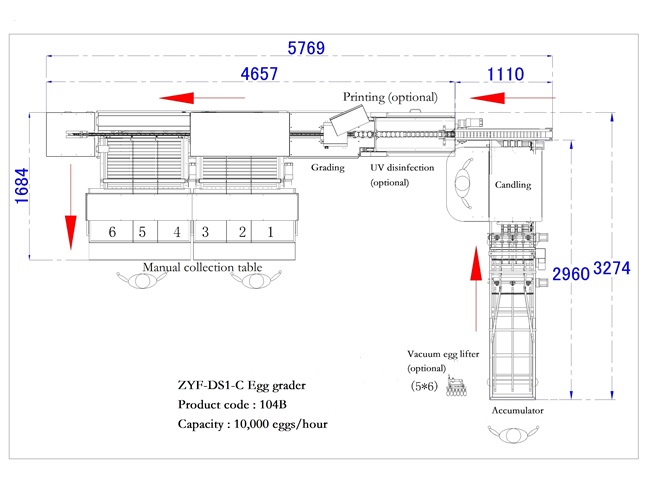

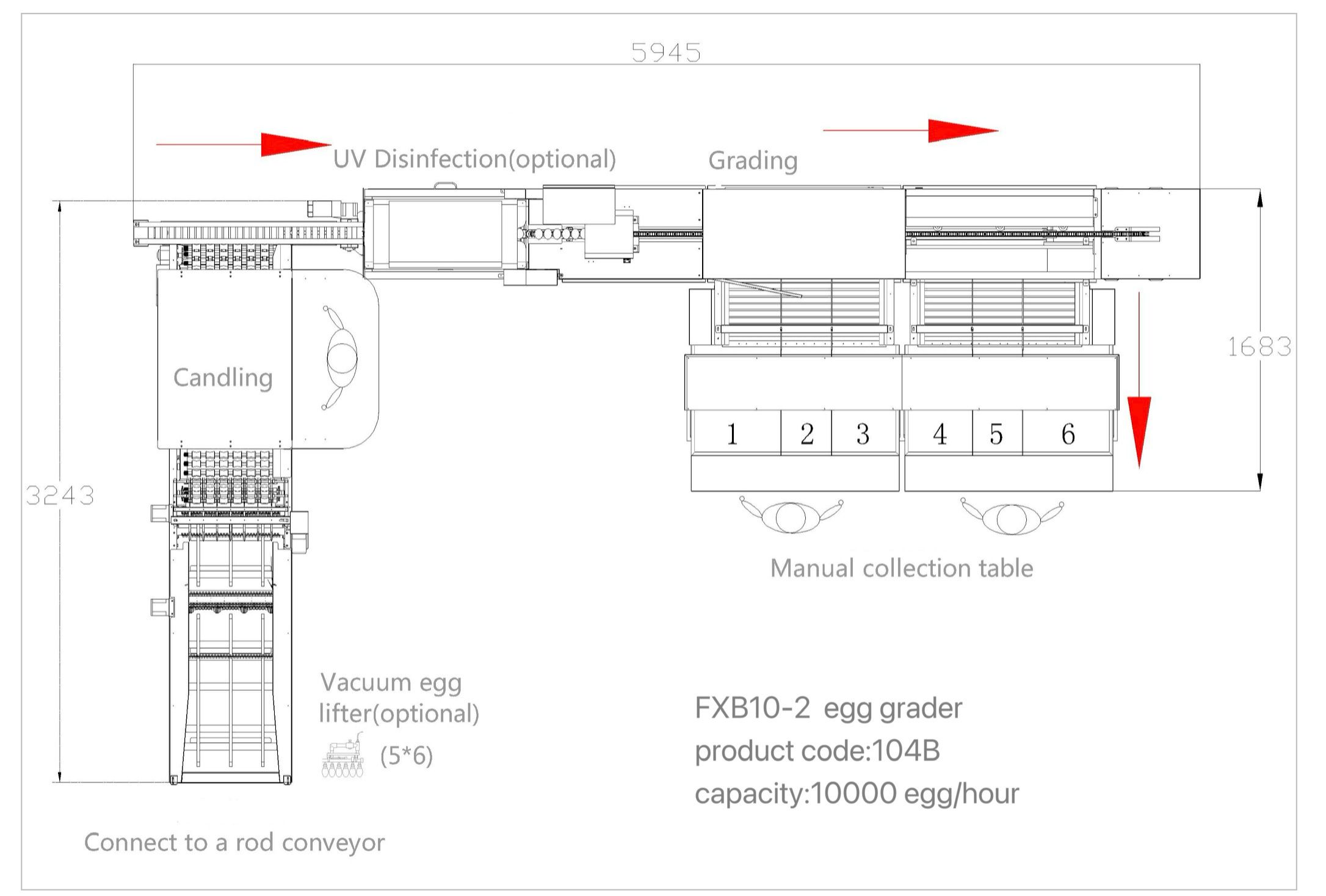

Floor plan
Electronic weighing
Sorting by weight
Manual collection
Control panel
Zenyer 605A accumulator

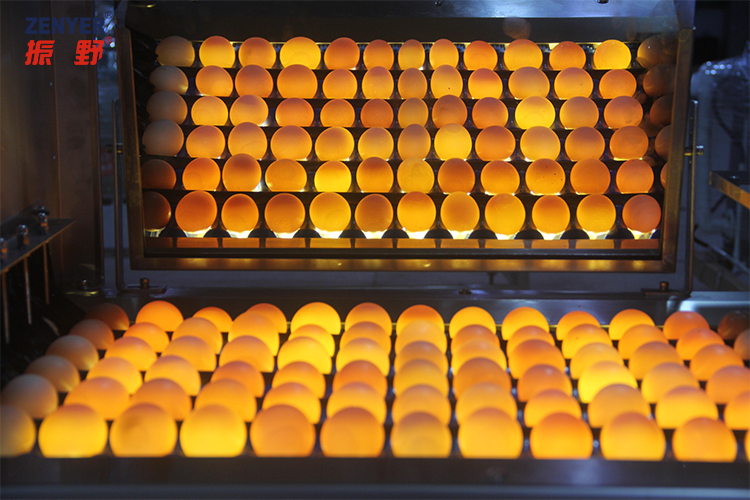

6-row candler with a candling cover and mirror
Zenyer 602 vacuum egg lifter (optional)
Loading 30 eggs per time on the accumulator

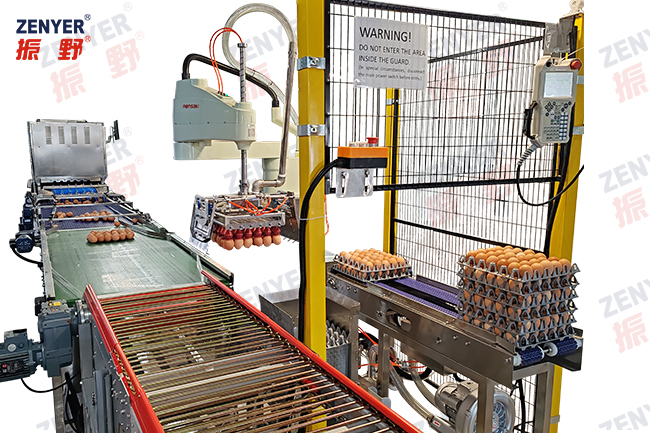

The Zenyer 618 automatic egg loader (optional)
Zenyer 401H egg printer (optional)
ZENYER single-row Visual AI detector (optional)
Price of ZENYER 104B egg grader main machine: $33,000.00
Optional:
-- The 605A accumulator(6-row candler included): Only $20,900.00
-- The 602 Vacuum egg lifter: Only $2,750.00
OR
-- The 618 Robotic Loader: Only $40,700.00
-- The 401H egg printer: Only $6,600.00
-- Utra Violet Disinfection: Only $1,100.00
-- The 410X Visual AI Detector: Only $60,500.00
Price including GST
(Pre-Order)
* standard configuration is single phase, please remind us if you need 3-phase.
ZYF-DS1-C Egg Grader (104B) Brochure
