Egg Grader

Name: ZYF-DS1-3ZP Egg Grader (104A）

Product Code: 104A

Capacity: 10,000 eggs/hour

Function: Egg grading and auto packing

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details

ZENYER 104A Egg Grader – Features & Benefits

  • Premium Stainless Steel Build
    Made from high-quality stainless steel, offering exceptional durability and hygiene – perfect for large-scale egg farms and packing facilities.

  • Automatic Orientation & Loading

    • Ensures all eggs are automatically oriented with the air chamber facing upward, helping to maximize storage life before packing.

    • Supports automatic loading via the ZENYER 605A Accumulator and 602 Vacuum Egg Lifter (30 eggs per lift).

    • Can also be connected to a rod conveyor directly from the chicken shed, providing seamless egg flow into the accumulator.

  • Electronic Weighing & High-Accuracy Grading
    Sorts eggs into 4–7 grades with an accuracy of ±1 gram using a precise electronic weighing system, ensuring consistent results for every batch.

  • Integrated Counting & Monitoring
    Tracks the total egg output and the number of eggs in each grade, allowing for easy data recording and production monitoring.

  • Touchscreen & PLC Control
    Features a color touchscreen interface and a PLC control system, allowing users to easily set grading parameters, calibrate accuracy, and monitor operations.

  • Automatic & Manual Packing Options

    • Includes three auto-packers (with the option to add a fourth) for flexible packing solutions.

    • Supports 10, 12, 15, 18, and 30-egg cartons/trays.

    • Operators manually load empty cartons/trays onto the conveyor, which automatically feeds them to the correct drop-off point for filling.

  • Optional UV Disinfection
    Offers Ultra-Violet (UV) disinfection to sanitize eggshells, enhancing food safety and biosecurity.

  • Scalable for High-Volume Production
    Can be combined with the ZENYER 202A Egg Washer to create the ZENYER 302A Egg Washing & Grading Line with a capacity of 10,000 eggs/hour.

Egg Grader

 Model

ZYF-DS1-3ZP

Product code

104A

Capacity

10,000 eggs/hour

Grading accuracy

±1 gram

Grade

5

Power*

5.22 KW

Voltage

380-415V, 3-phase, 50HZ

or

220-240V, single phase,50HZ

Dimension(L*W*H)

9.13*5.93*2 M

Net weight*

1930 kg

Gross weight*

2850 kg

Function

Orientation,egg grading & counting, auto packing,manual packing, and optional egg accumulator,vacuum egg lifter and egg printer

* Power, net weight and gross weight are calculated according to the floor plan below.

ZENYER 104A egg grader (3 auto-packers and 1 manual packing lane)

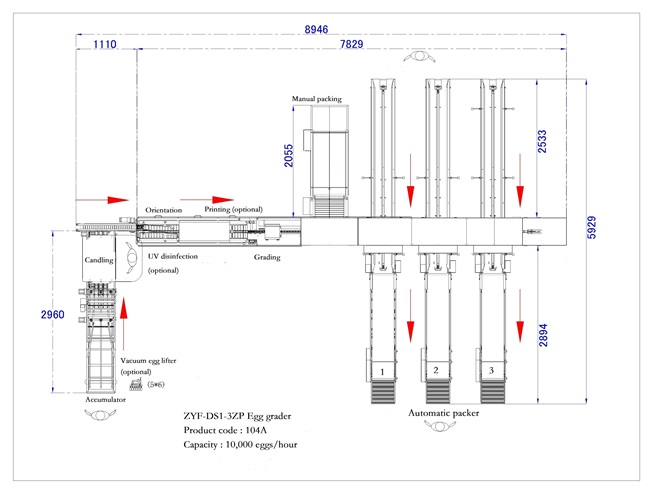

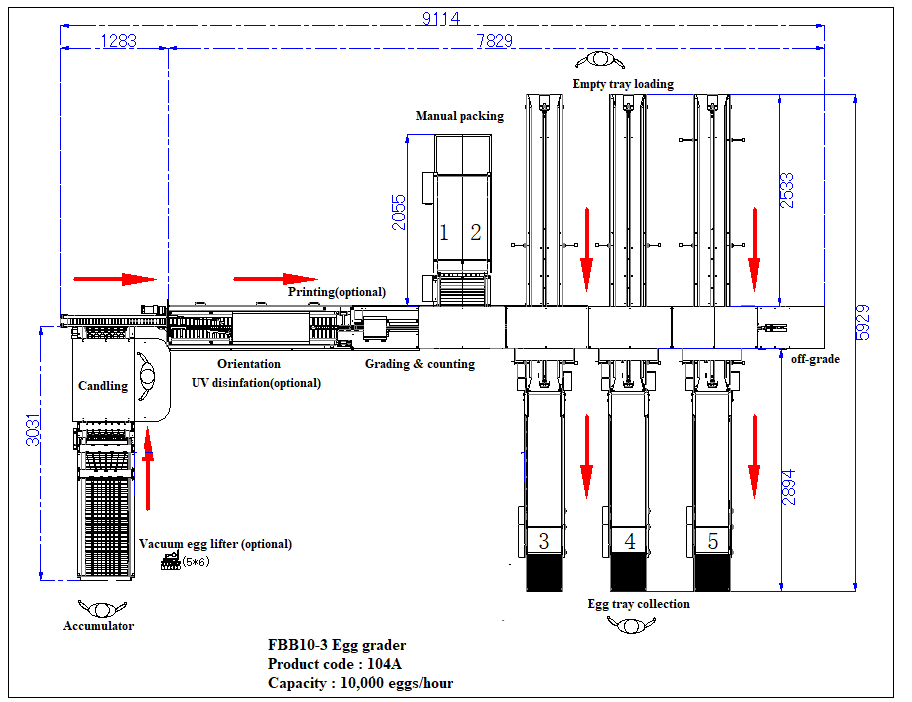

Floor plan(3 auto-packers and 1 manual packing lane)

Orientation
Electronic weighing

Empty tray loading
Auto packing

Loaded egg tray collection

Manual packing lane
Control panel

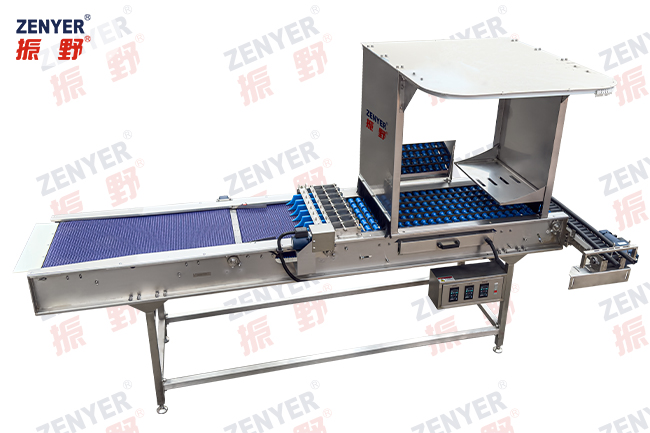

Zenyer 605A accumulator

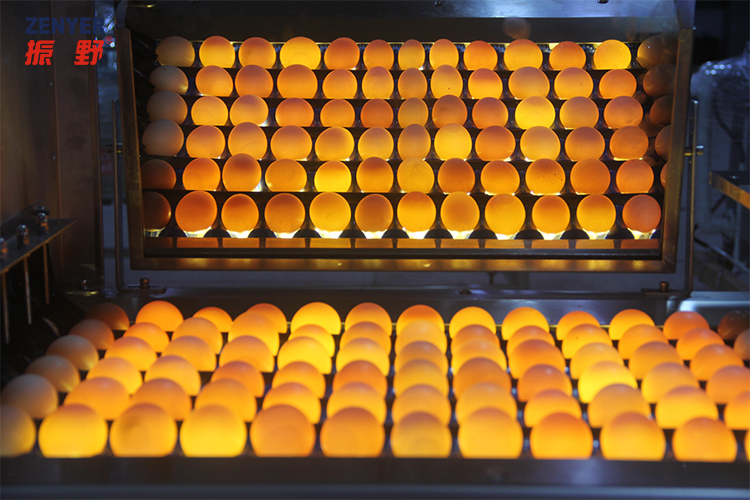

6-row candler with a candling cover and mirror

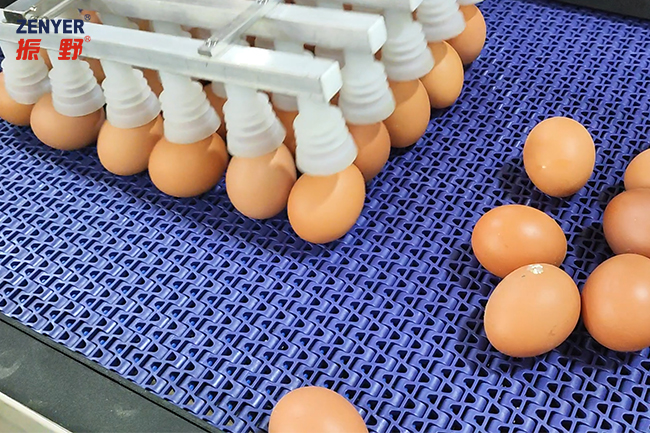

Zenyer 602 vauum egg lifter (optional)
Loading 30 eggs per time on the accumulator

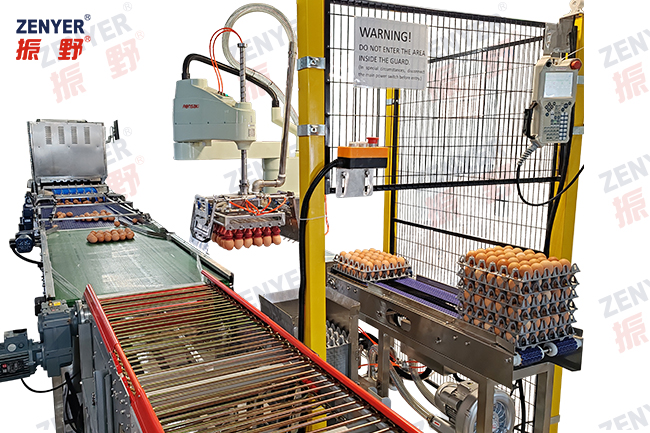

The Zenyer 618 automatic egg loader (optional)

ZENYER 401H Egg printer (optional)

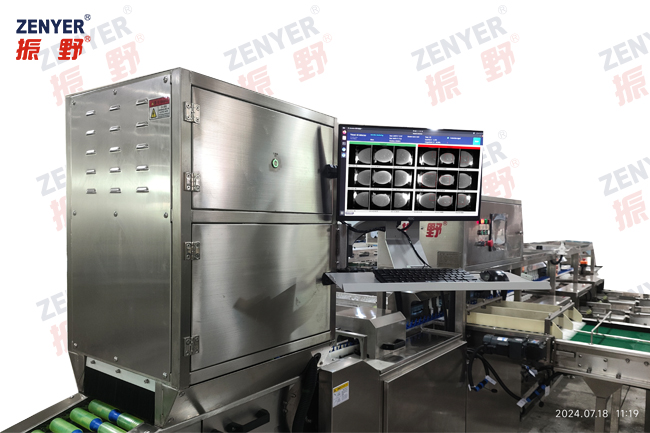

ZENYER single-row Visual AI detector (optional)



Price for the ZENYER 104A egg grader: $110,000.00

Consist of:

-- The 104A main machine

-- Automatic packer (3)

-- Manual packing lane (1)






Optional:

-- The 605A accumulator(6-row candler included): Only $20,900.00

-- The 602 Vacuum egg lifter: Only $2,750.00

OR

-- The 618 Robotic Loader: Only $40,700.00

-- The 401H egg printer: Only $6,600.00

-- Utra Violet Disinfection: Only $1,100.00

-- The 410X Visual AI Detector: Only $60,500.00

Price including GST



(Pre-Order)



 * standard configuration is 3-phase, please remind us if you need single phase.



ZYF-DS1-3ZP Egg Grader (104A） Brochure
