Egg Grader

Name: ZYF-JS3-L(R) Egg Grader (102BS)

Product Code: 102BS

Capacity: 5,400 eggs/hour

Function: Vacuum lifting, accumulating, grading and candling

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details

ZENYER 102BS Egg Grader – Features & Benefits

  • Premium Stainless Steel Construction
    Made from high-quality stainless steel for exceptional durability and hygiene, ideal for food production environments.

  • Integrated System for Maximum Efficiency
    The ZENYER 102BS combines the 102B Egg Grader, 604A Accumulator, and 602 Vacuum Egg Lifter into a single solution for smooth, automated operation.

  • Comprehensive Functions
    Offers vacuum egg loading, accumulating, candling, and grading, with an optional egg printer for batch coding or traceability. Handles up to 5,400 eggs per hour.

  • LED Candling Inspection
    Equipped with a candling booth featuring LED lights, a cover, and a mirror to enhance visibility. Allows operators to easily detect and manually remove cracked, dirty, or otherwise unqualified eggs.

  • Efficient Egg Loading Process
    Load 30 eggs at a time using the vacuum lifter. Eggs are then divided into three lines by the accumulator and automatically fed into the grader’s roller conveyor.

  • Flexible Layout Options
    Available with left-hand or right-hand feeding roller models to suit your farm or packing facility layout.

  • Seamless Integration
    Can be connected with the ZENYER 201A Egg Washer to form a ZENYER 301A Egg Washing & Grading Line with a total capacity of 5,000 eggs/hour.

Egg Grader

 Model

ZYF-JS3-L(R)

Product code

102BS

Capacity

5,400 eggs/hour

Grading accuracy

±1 gram

Grade

5

Power

867W

Voltage

220V-240V, single phase, 50HZ

Dimension (L* W* H)

2.75*1.6*1.8 M

Net weight

265 kg

Gross weight

400 kg

Function

Vacuum loading, egg accumulating, candling & grading and optional egg printer

ZENYER 102BS egg grader

Floor plan (the feeding roller on the LEFT hand side)

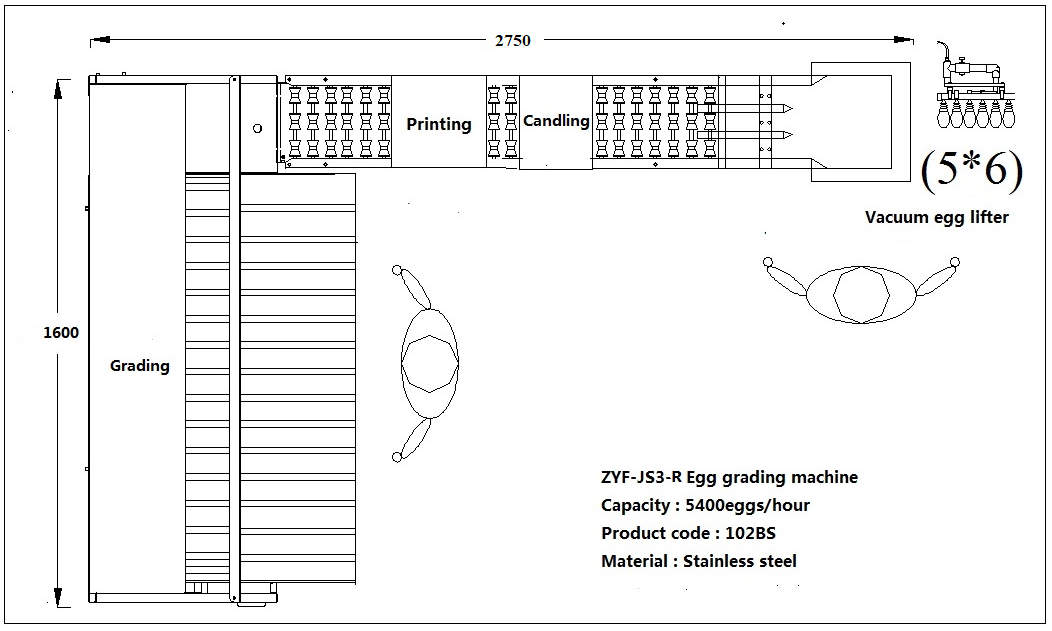

Floor plan (The feeding roller on the RIGHT hand side)

ZENYER 102B egg grader
ZENYER 604A accumulator
ZENYER 602 vacuum egg lifter

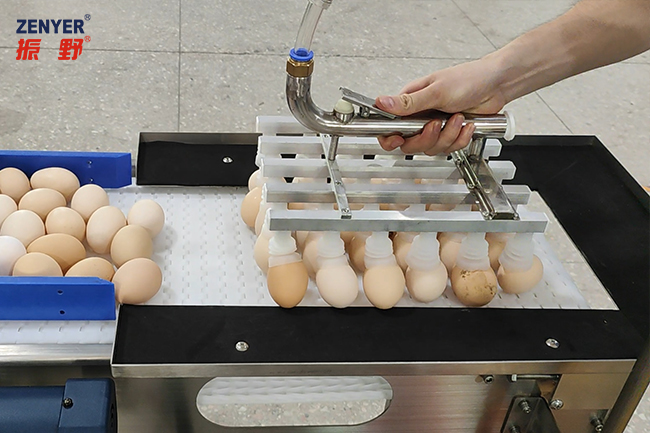

Load 30 eggs per time on the accumulator via vacuum egg lifter

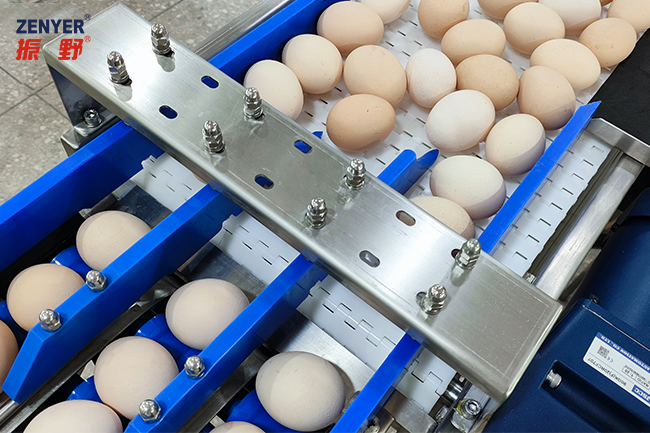

3-row divider

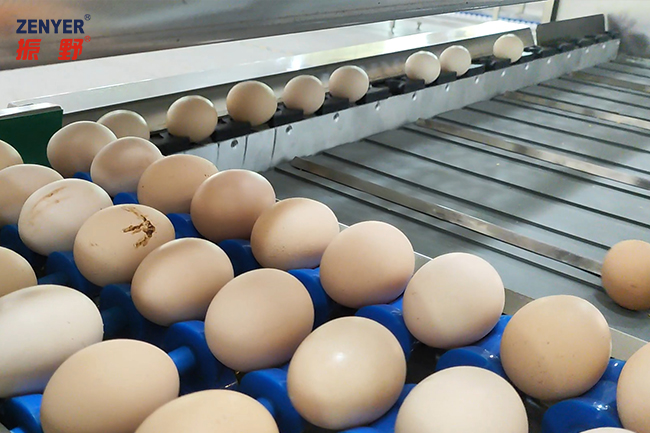

Egg grading

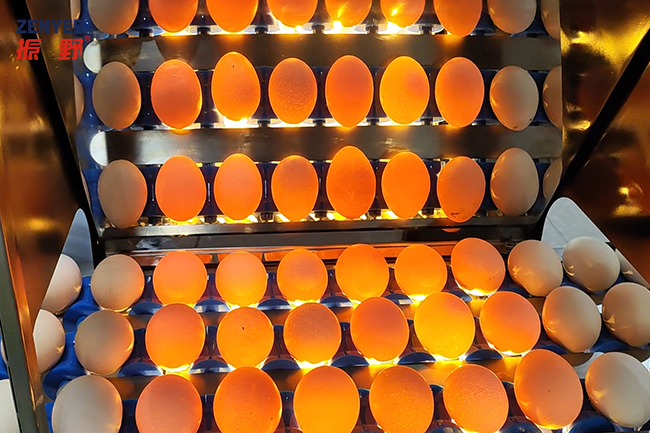

3-row candling booth with mirror and candling cover

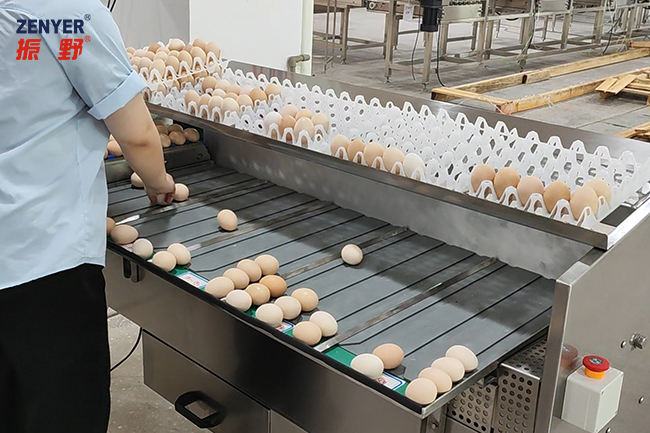

Manual collection table




Price of the ZENYER 102BS egg grader: $17,050.00

Consist of:

-- The 102B egg grader

-- The 602 vacuum egg lifter
-- The 604A accumulator



 (In stock)



Optional:

-- The 403H egg printer: only $8,800.00


Price including GST.

* The default direction of roller conveyor of the egg grader is set for the left-hand side version, please remind us if you require a right-hand side version instead.



ZYF-JS3-L(R) Egg Grader (102BS) Brochure
