Egg Grader

Name: ZYF-DS1-P Egg Grader(102BP)

Product Code: 102BP

Capacity: 5,000 eggs/hour

Function: Egg grading and auto packing

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details


ZENYER 102BP Egg Grader – Features & Benefits

  • Strong Stainless Steel Frame
    Constructed from durable stainless steel for superior strength, longevity, and hygiene, making it ideal for commercial egg packing environments.

  • Compact Electronic Grading System
    A high-performance electronic egg grader with 3 auto-packers and a capacity of 5,000 eggs per hour – perfect for small-to-medium egg farms looking for a semi-automated solution.

  • Integrated Functions with Flexible Options
    Includes egg head turning, electronic weighing and grading, counting, auto-packing, and manual collection functions.
    Optional upgrades include:

    • Accumulator & Vacuum Egg Lifter for automated egg loading

    • Egg Printer for batch coding and traceability

    • UV Sterilization for improved biosecurity

    • Visual AI Detector for automated cracked/dirty egg detection

  • User-Friendly Touchscreen & PLC Control
    Equipped with a color touchscreen and PLC control system with a self-diagnosis function, making it simple to configure, calibrate, and monitor operations.

  • LED Candling with Manual Inspection
    Eggs pass through an LED-lit candling booth with a cover and mirror to improve visibility. Operators can manually remove cracked, dirty, or otherwise unqualified eggs.

  • Automatic Head Turning for Longer Storage
    Ensures all eggs are oriented with the air chamber facing up before packing, extending storage life and preserving quality.

  • Accurate Electronic Weighing & Counting
    Weighs and grades eggs into 4–5 grades with ±1g accuracy. Tracks both per-grade and total egg counts per shift.

  • Efficient, Low-Labor Operation
    Can be operated by as few as two people – one handling loading/candling, the other managing empty trays and collecting packed trays.

  • Flexible Packing Options

    • Auto-packers support both 12-egg cartons and 30-egg trays.

    • Manual packing lane can be split into two sections to handle multiple egg sizes simultaneously.

  • Seamless Integration
    Can be connected to the ZENYER 201A Egg Washer to form a ZENYER 301AP Egg Processing Line with a total capacity of 5,000 eggs per hour.

Egg Grading Machine
 Model ZYF-DS1-P
Product code 102BP
Capacity 5,000 eggs/hour
Grade 4~5
Accuracy ±1g
Power 3.6 KW
Voltage* 220~240V, single phase, 50HZ
OR
380-415V, 3 phase, 50Hz
Dimension (L* W* H) 7120 * 4382 * 2000mm
People 2
Function Egg head turning, grading & counting, auto packing and manual collection, and optional UV sterilization, accumulator, vacuum egg lifter, egg printer and visual AI detector
Zenyer 102BP egg grader

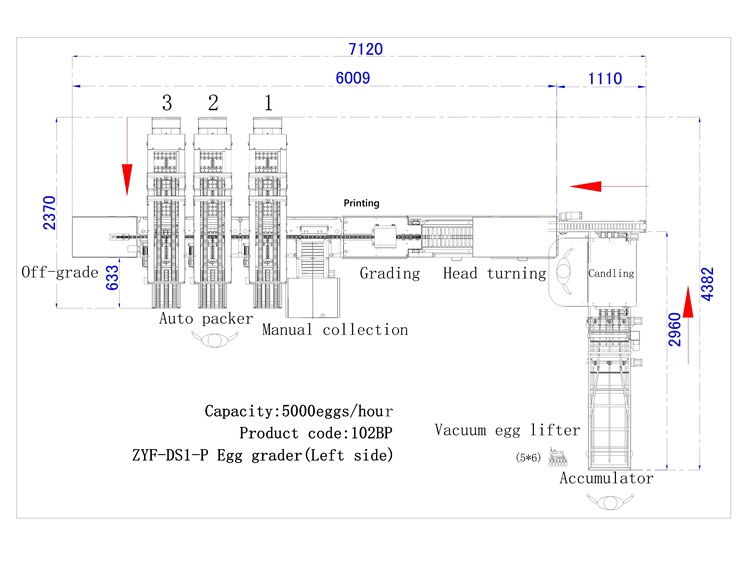

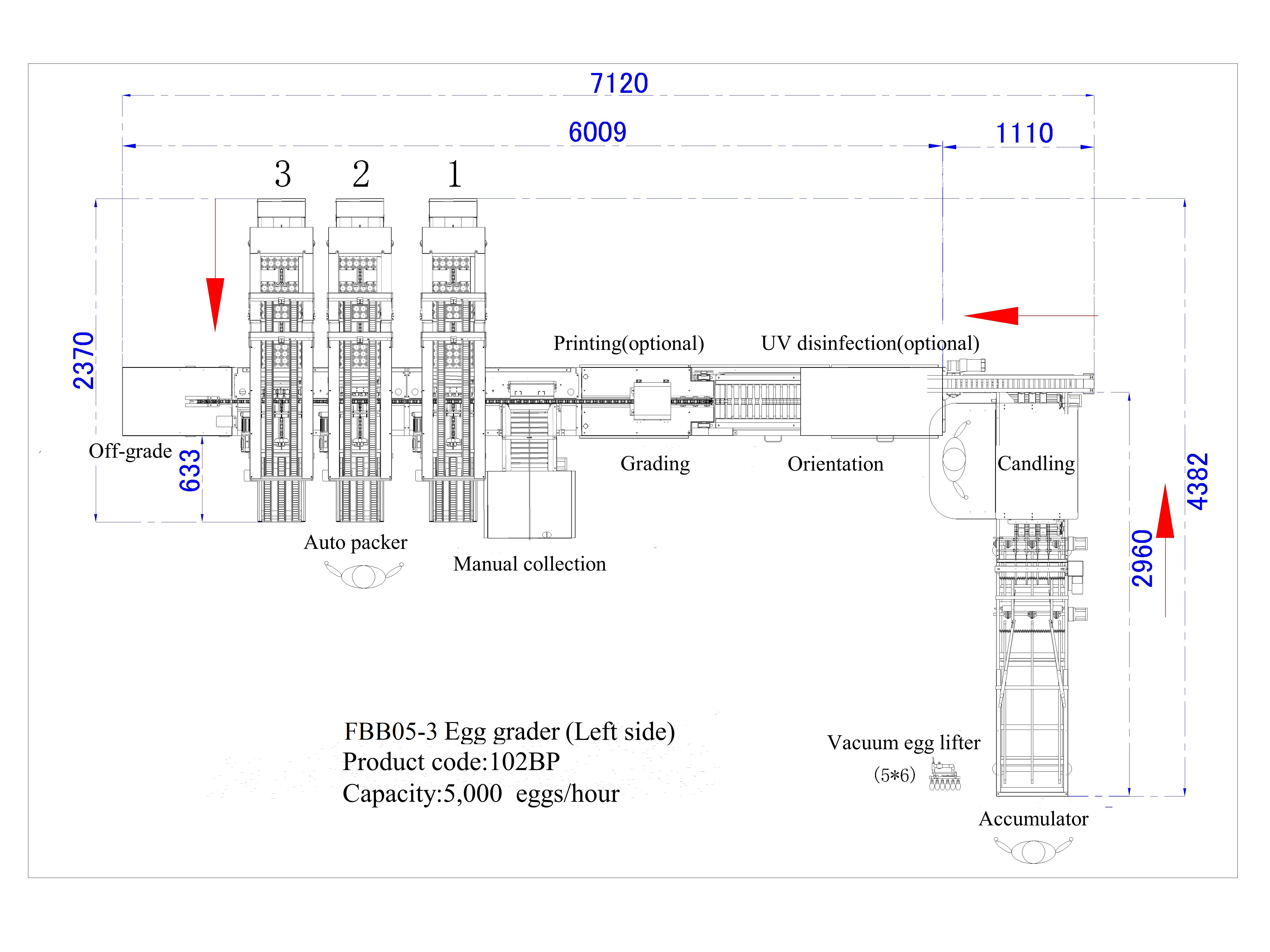

Floor plan-Left hand side

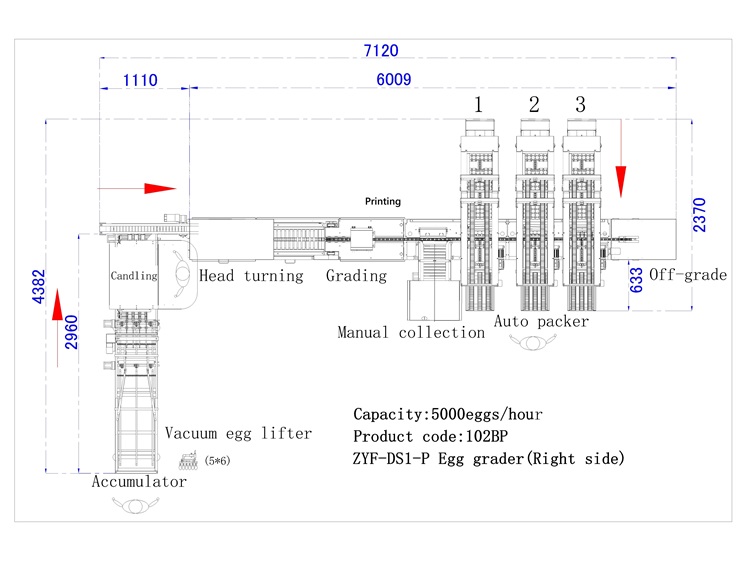

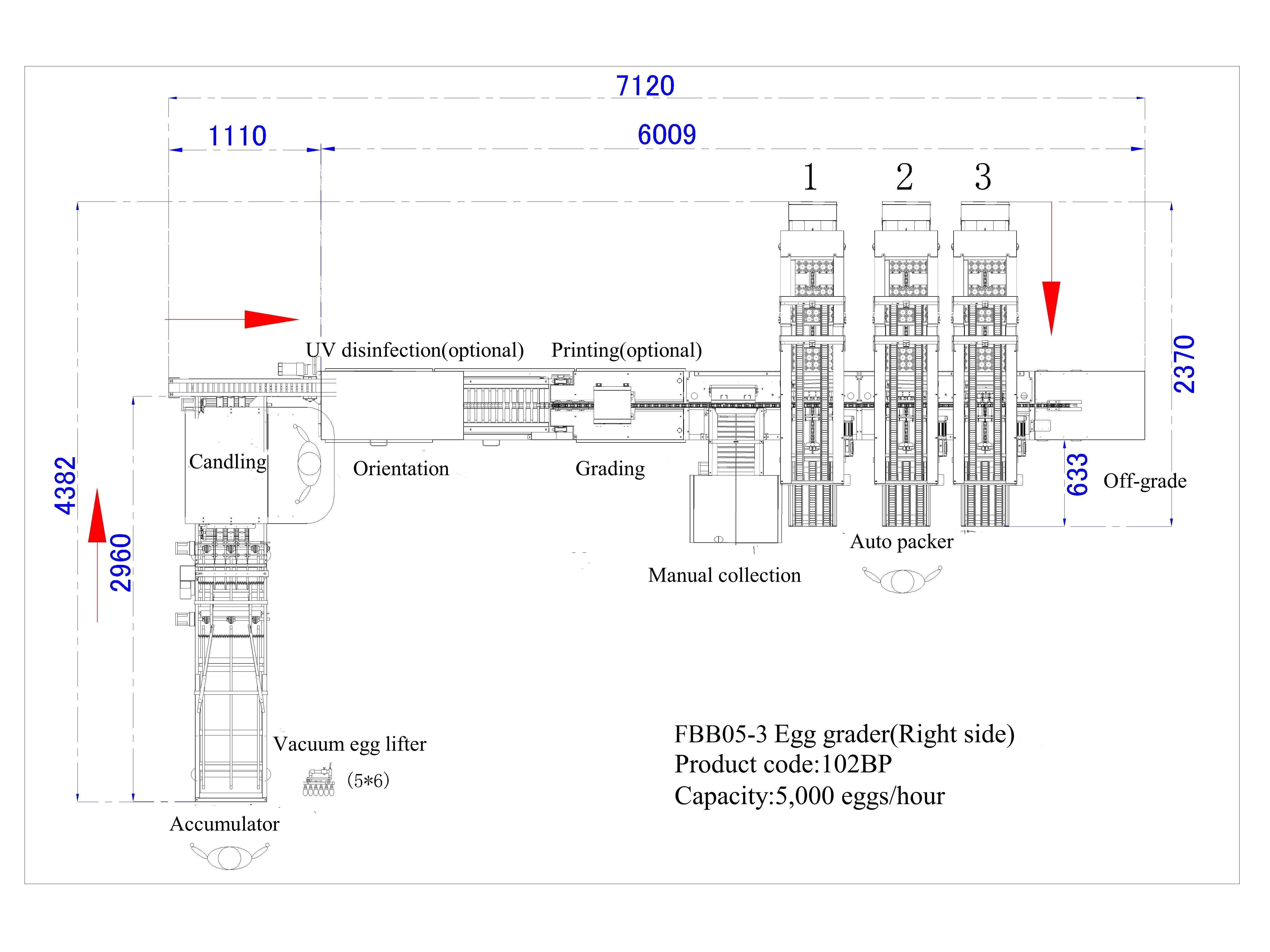

Floor plan-Right hand side

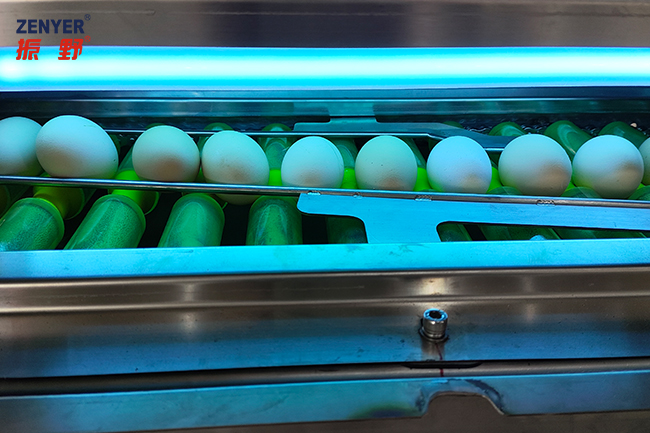

 Head turning/orienter & (optional UV sterilization)

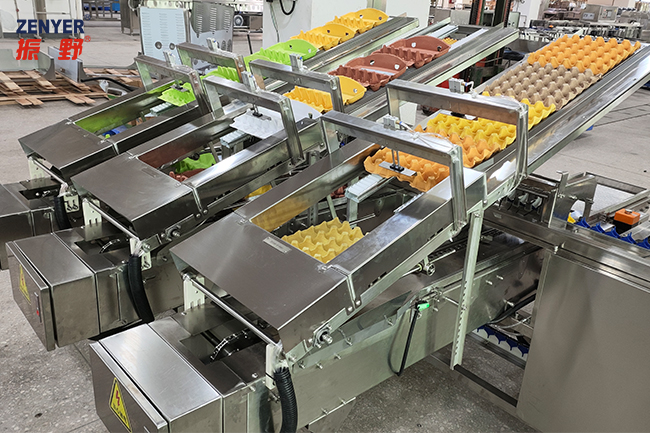

Empty tray loading

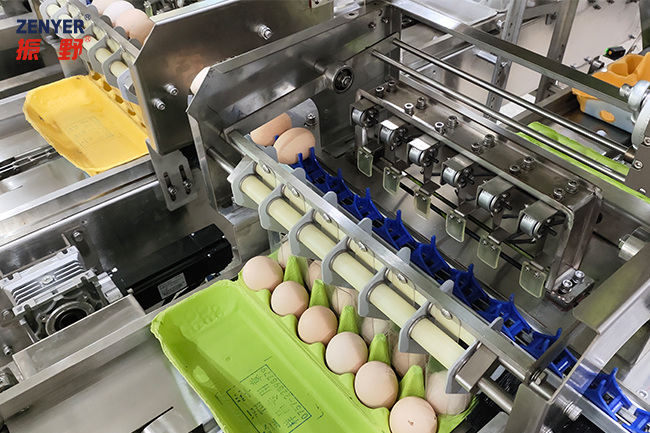

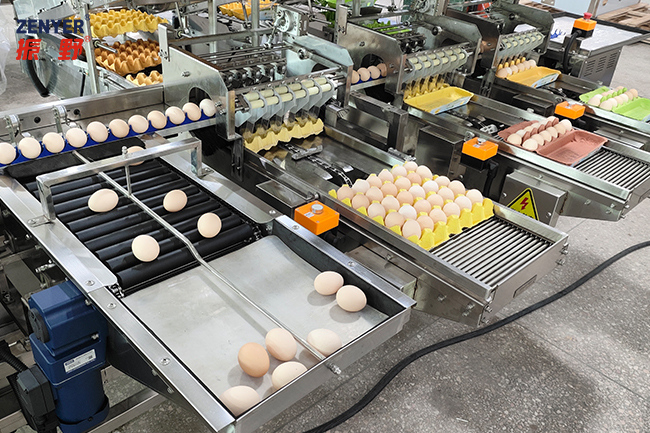

Auto packing
Loaded egg tray collection

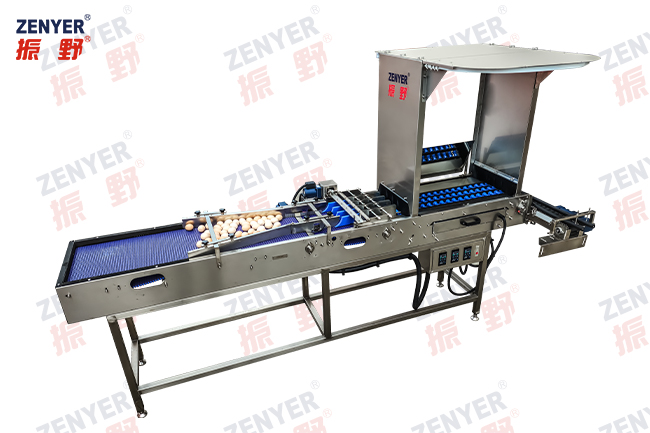

Zenyer 605AS accumulator (optional)

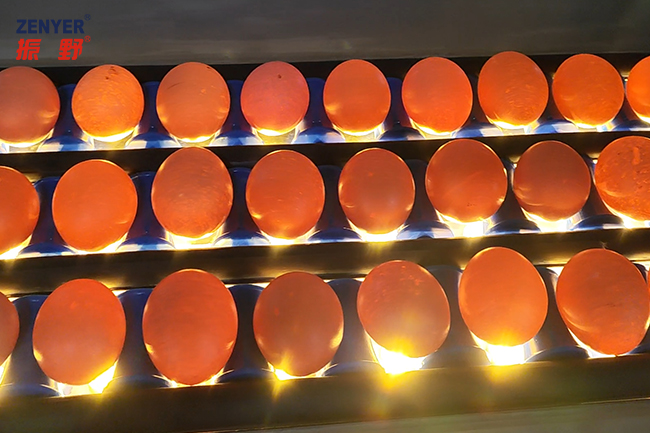

3-row candler with candling cover and mirror

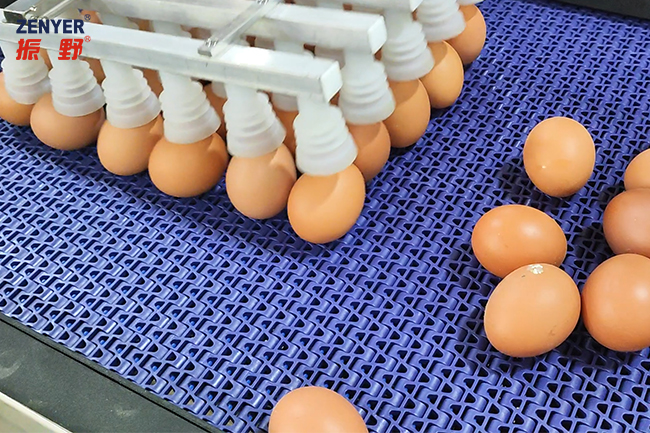

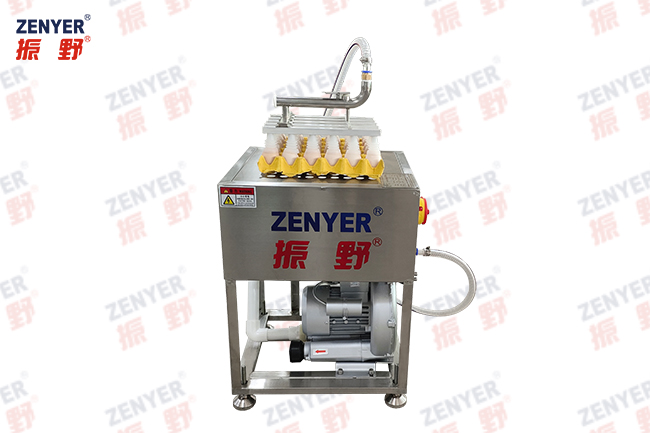

Zenyer 602 vacuum egg lifter (optional)

Load 30 eggs per time on the accumulator via the Zenyer 602 vacuum egg lifter

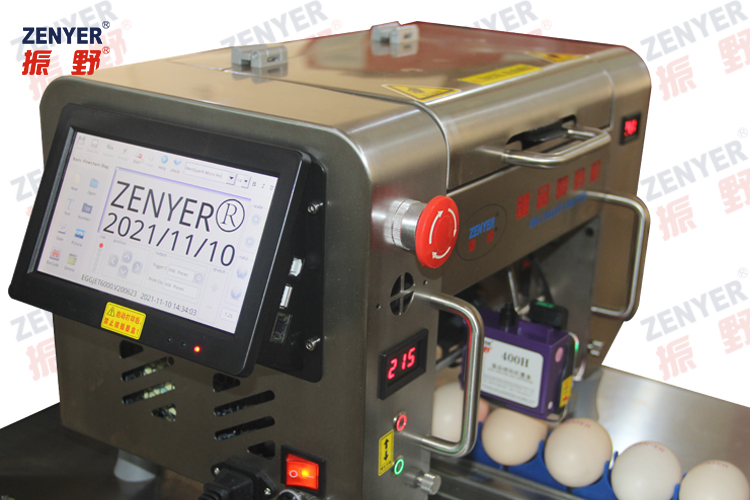

Zenyer 401H egg printer (optional)

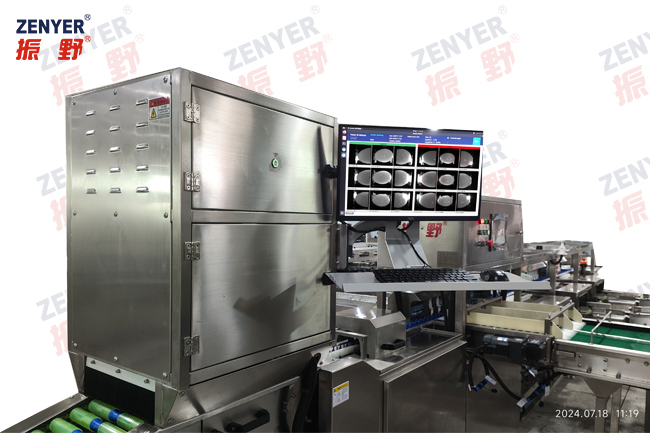

ZENYER Visual AI detector (optional)

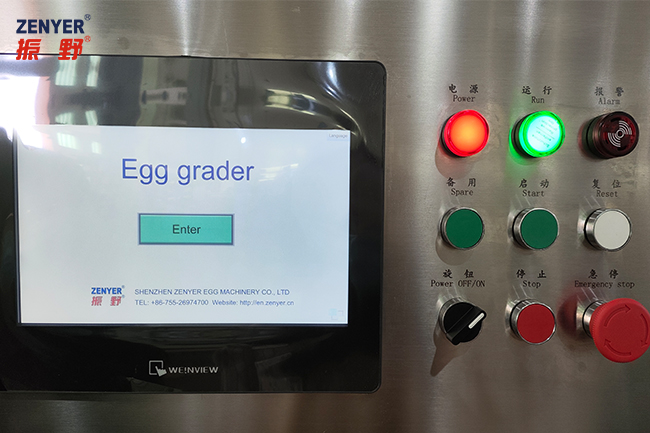

Control panel

Price of the ZENYER 102BP egg grader: $71,500.00
Consist of:
-- The 102BP main machine
-- Auto packer (3)
-- Manual collection table (1)





Optional:
-- The 602 Vacuum egg lifter: Only $2,750.00
-- The 605AS accumulator(3-row candler included): Only $16,500.00
-- The 401H egg printer: Only $6,600.00
-- UV sterilization: Only $1,100.00
-- The 400X Visual AI Detector: Only $41,800.00
-- Air compressor(3KW): Only $2,750.00
(supply the air needed to run the Automatic Packer)


Price including GST
(Pre-order)





ZYF-DS1-P Egg Grader(102BP) Brochure
