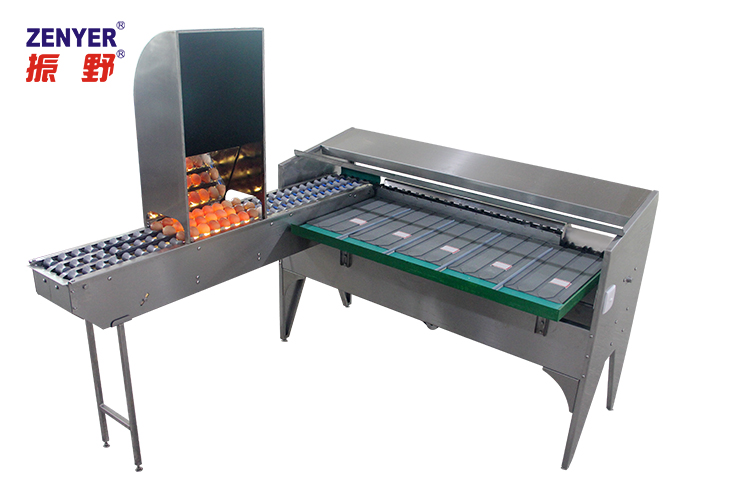

Name：ZYF-J3-L(R)Egg grader (102B)

Product Code： 102B

Capacity： 5,400 eggs/hours

Function： Egg grading, candling

Details

Features:

-- Made of stainless steel for greater durability.

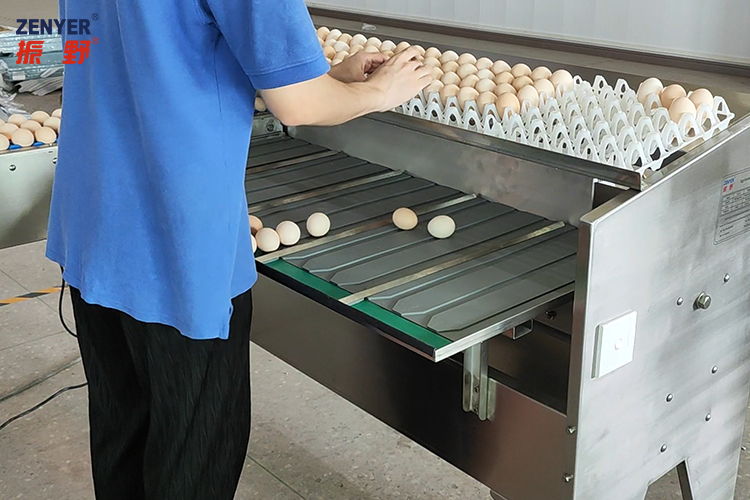

-- Can sort eggs into 5 grades with an accuracy of within ±1 gram and a capacity of 5,400 eggs/hour.

-- Includes egg grading & candling functions, it can also be equipped with an optional egg printer, accumulator

and vacuum egg lifter.

-- Allows the user to check for any cracked, dirty or otherwise unqualified eggs through LED lights and pick them out

manually. The candling booth includes a candling cover and mirror to enforce the candling result.

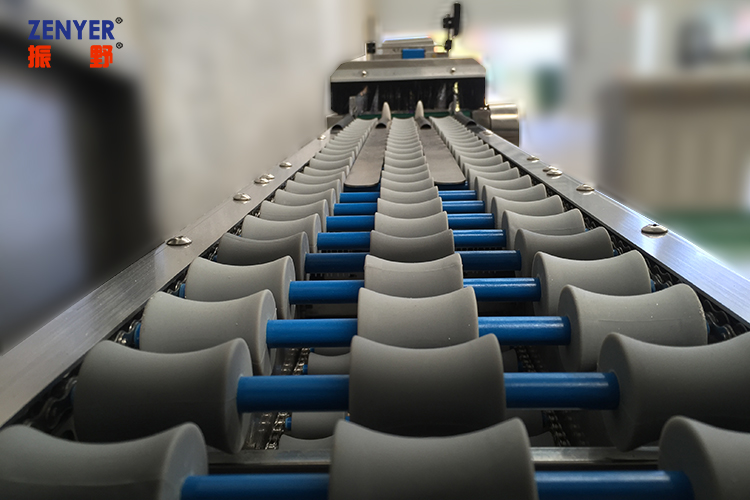

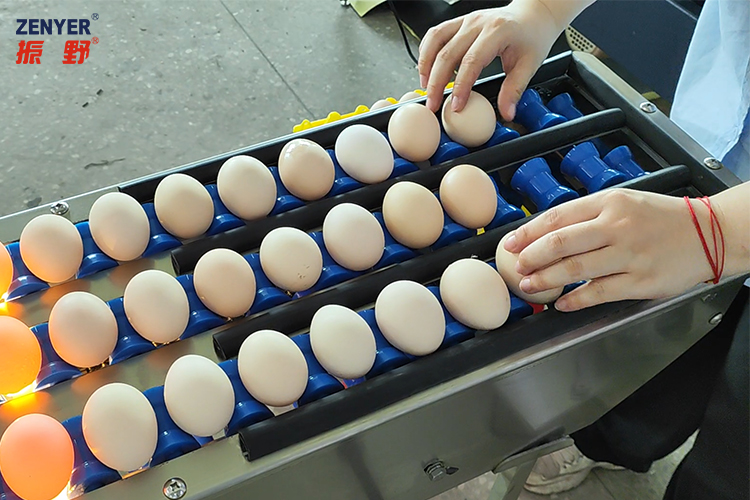

-- Provides different egg grader models with the egg feeding roller conveyor on either the left or on the right hand side.

-- Can be connected with Zenyer 201A egg washer, the 604A accumulator and an optional egg printer to assemble

 a ZENYER 301A egg washing grading line with a capacity of 5,000 eggs/hour.

Egg grader
Model	ZYF-J3-L(R)
Product code	102B
Capacity	5,400 eggs/hour
Grading accuracy	±1 gram
Grades	5
Power	227 W, 3.6A
Voltage	220-240V, single phase, 50HZ

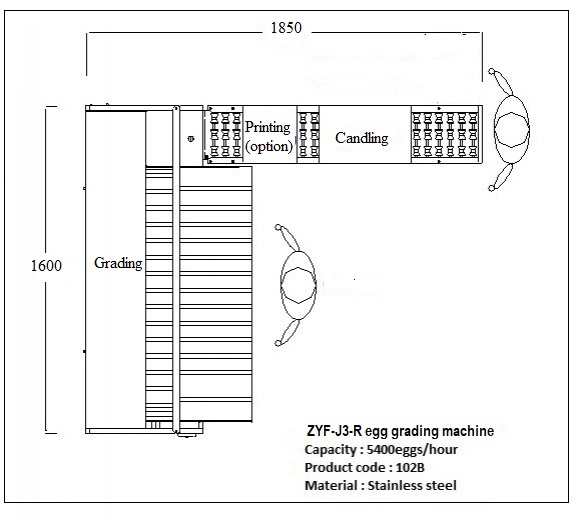

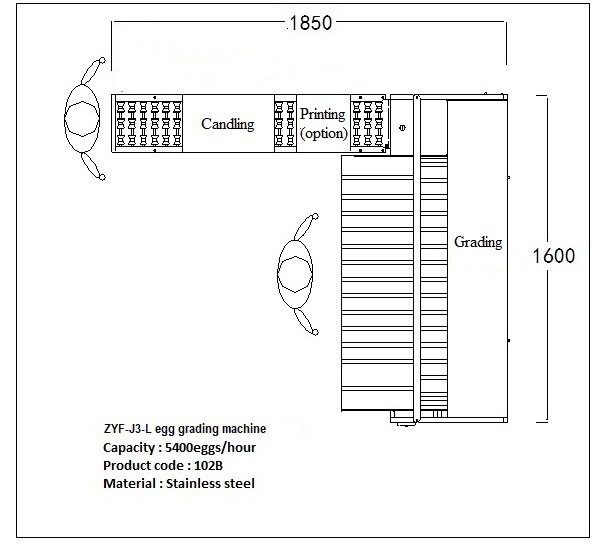

Dimension(L* W* H)	1.85*1.6*1.8 M
Net weight	190 kg
Gross weight	270 kg
Function	Egg grading & candling

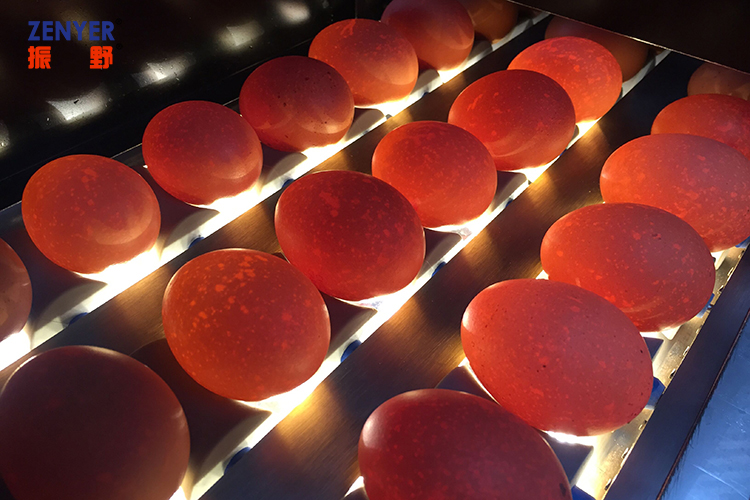

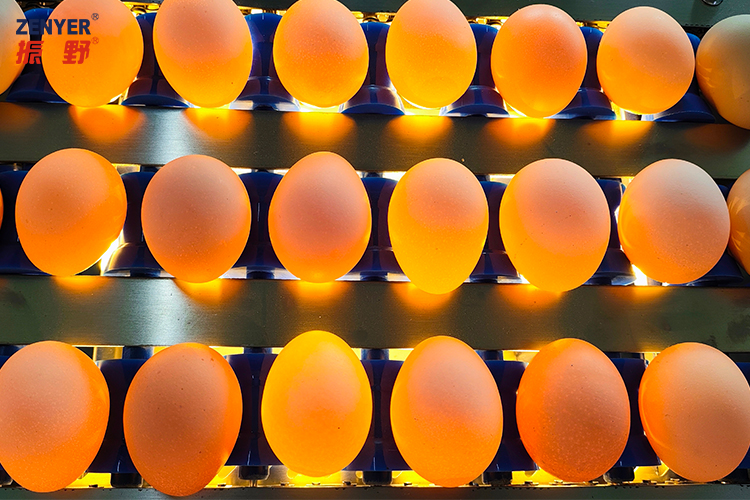

The 3-row LED candler with a candling cover and mirror

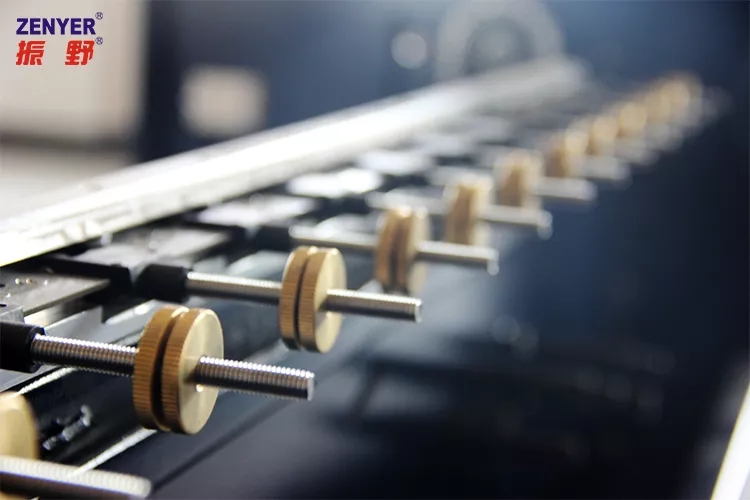

Egg weighing system

The 403H egg printer (optional)



 (Using the vacuum egg lifter to transfer 30 eggs onto the accumulator at a time, through the accumulator, eggs are divided into 3 lines and transferred into the 3-row feeding roller of egg grader automatically).







Price of ZENYER 102B egg grader (LED candler included):  $9,900.00





Optional:

-- The 403H Egg printer: Only $6,600.00
-- The 602 Vacuum egg lifter: Only $2,530.00

-- The 604A Accumulator: Only $2,750.00



Price including GST



(In stock)

ZYF-J3-L(R)Egg grader (102B) Brochure
