Name: ZYF-J2-L Egg Grader (101B)

Product Code: 101B

Capacity: 4,000 eggs/hour

Function: Egg grading and candling

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more

Details

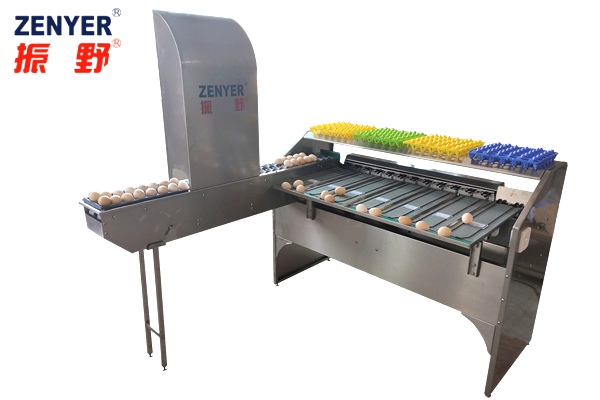

ZENYER 101B Egg Grader – Features & Benefits
The ZENYER 101B Egg Grader is a compact and durable solution for small to medium-scale farms, delivering accurate grading, candling, and optional automation features in one reliable machine.

Key Features:

• Durable Build
  Constructed from stainless steel for long-lasting performance and easy cleaning.

• High Accuracy Grading
  Sorts eggs into 7 weight grades with an accuracy of ±1 gram, handling up to 4,000 eggs per hour.

• Grading & Candling

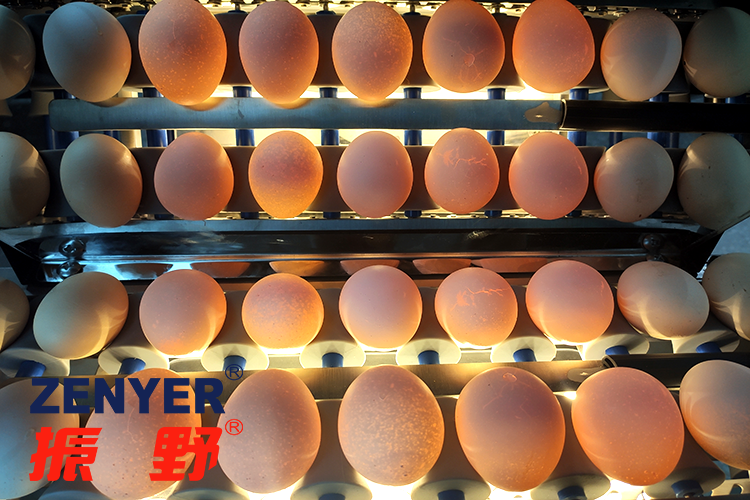

  Integrated bulb-light candling system with LED illumination allows operators to check for cracked, dirty, or unqualified eggs and remove them manually. The candling booth includes a cover and mirror to enhance inspection results, with the cover adjustable to face inward or outward.

• Flexible Feeding Options

  • Manual feeding: Place eggs directly on the feeding roller.

  • Automatic feeding: Connect with the ZENYER 604A accumulator and use the ZENYER 602 vacuum egg lifter to load 30 eggs at a time. The accumulator divides eggs into two rows before transferring them to the grader.

• Optional Add-Ons
  Can be equipped with:

  • Vacuum egg lifter & accumulator

  • Egg printer for date coding or branding

  • Egg washer for complete automation

• Scalable System
  When combined with the ZENYER 200A Egg Washer, 604A Accumulator, and optional egg printer, it forms the ZENYER 300A Egg Washing & Grading Line with a capacity of 3,000 eggs per hour.


The ZENYER 101B Egg Grader is the perfect entry-level grader—compact, precise, and expandable—offering farms a cost-effective way to upgrade their egg handling efficiency.

Egg Grader
Model	ZYF-J2-L
Product code	101B
Capacity	4,000 eggs/hour
Grading accuracy	±1 gram
Grades	7
Power	218W, 3.6A
Voltage	220-240V, single phase, 50HZ

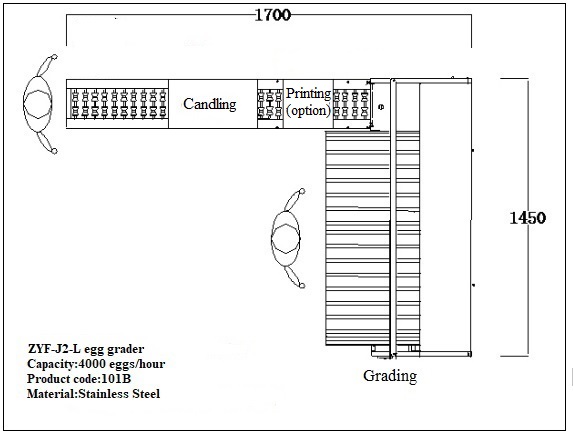

Dimension (L* W* H)	1.7*1.45*1.8 M
Net weight	160 kg
Gross weight	230 kg
Function	Egg grading & candling

The candling cover faces inwards

 The feeding roller on the LEFT hand side (see above)

The ZENYER 402H egg printer (optional)





Price of ZENYER 101B egg grader (LED candler included): Only $8,800.00



Optional:

-- The 602 Vacuum egg lifter: Only $2,750.00

-- The 604A accumulator: Only $3,300.00

-- The 402H Egg printer: Only $7,700.00

Price includes GST



(In stock)

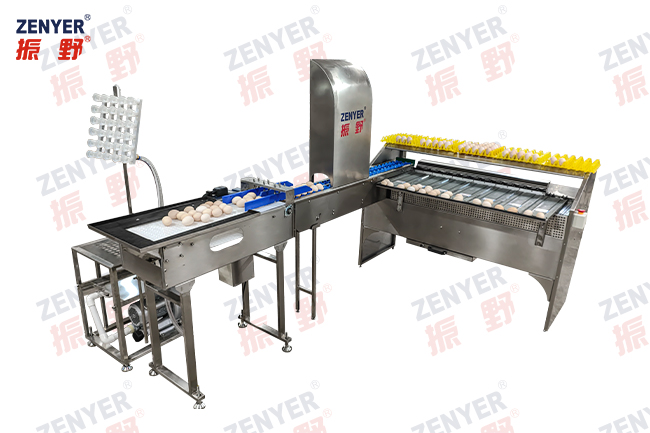

Zenyer 101BS egg grader (consist of the 602 lifter, the 604 accumulator, the 101B grader)

(Loading 30 eggs per time on the 604A accumulator by using the 602 Vacuum egg lifter, through the accumulator,

eggs are divided into 2 lines and transferred into the 2-row feeding roller of the 101B egg grader automatically)

* The default direction of roller conveyor of the egg grader is set for the left-hand side version, please remind us if you require a right-hand side version instead.

ZYF-J2-L Egg Grader (101B) Brochure
