Name：ZYZ-HD6 egg farm packer(713)

Product Code： 713

Capacity： 27,000 eggs/hour

Function： Accumulator,head turning, auto-packer(1)

Details

Features:

 -- Designed to connect the rod conveyor from chicken shed and pack eggs into 5*6 egg tray automatically.

-- Includes accumulator, head turning, UV sterilizing, auto packer, counting, off-pack table and optional egg printer.

-- The eggs from the rod conveyor of chicken house flow into the accumulator directly.

 -- Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer
storage before getting packed.

-- An optional UV sterilizing which will sanitize the egg shell for maximum food security.

-- Pack eggs into 5*6 tray automatically with capacity of 27,000 eggs/hour.

-- Can provide the different farm packer with the accumulator on the left or on the right hand side for option.

-- It has a counting function as well, you can check how many eggs have been packed.

-- It has NOT a grading function.


Model	ZYZ-HD6
Product code	713
Capacity	27,000 eggs/hour
Main material	Stainless steel
Power	3.6KW,50HZ
Voltage	380V, 3-phase
People	2~3
Dimension（L*W*H）	6.95*2.82*1.72 M
Function	Accumulator, automatic head turning (UV sterilizing), auto-packer(1), off-pack table and optional egg printer

Zenyer 713 farm packer(front view)

Zenyer 713 farm packer(side view)

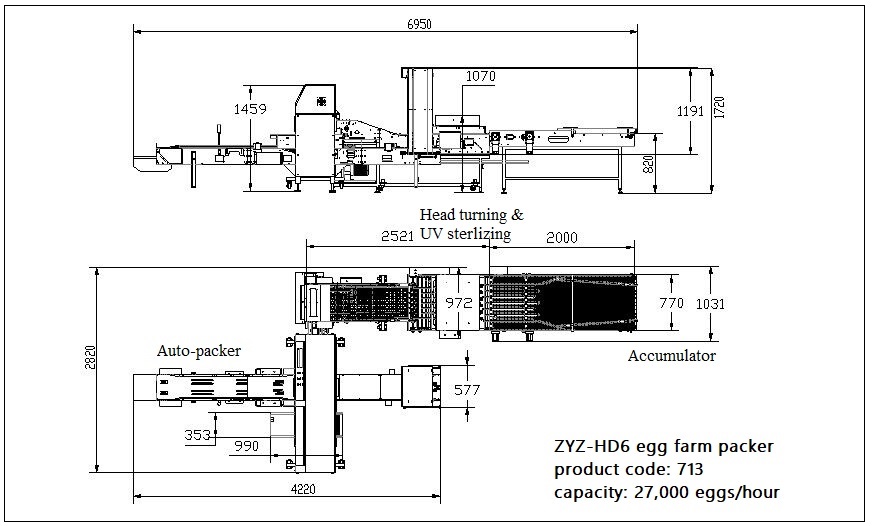

Floor plan

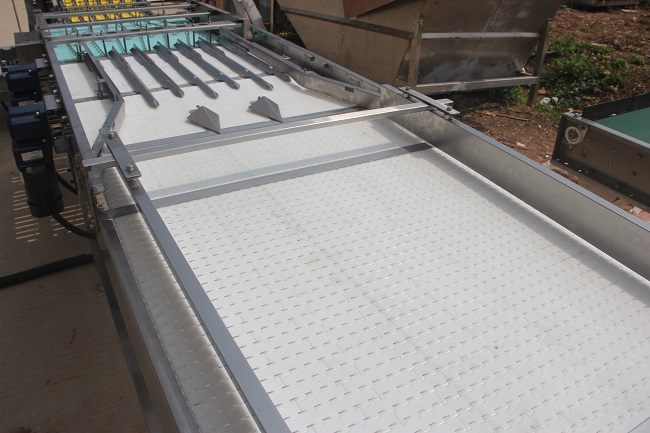

Accumulator

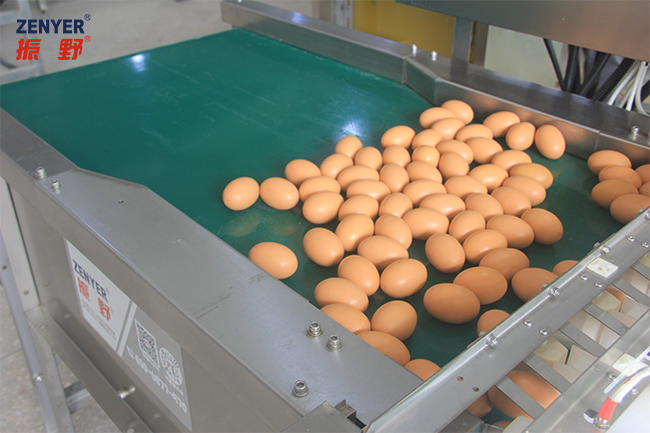

The accumulator connects to the rod conveyor from chicken house
Automatic head turning
UV sterilizing(option)
The orientator directs 6 lines of eggs into 1 line

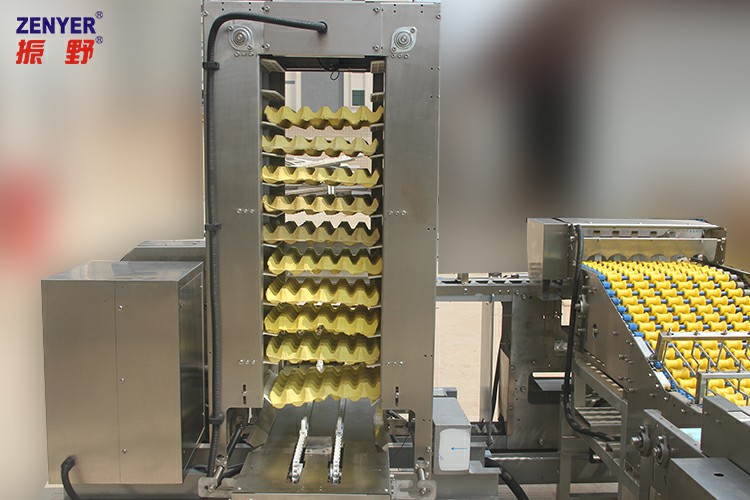

Empty tray stocker
Automatic packing
Loaded tray collection conveyor
Off-pack table

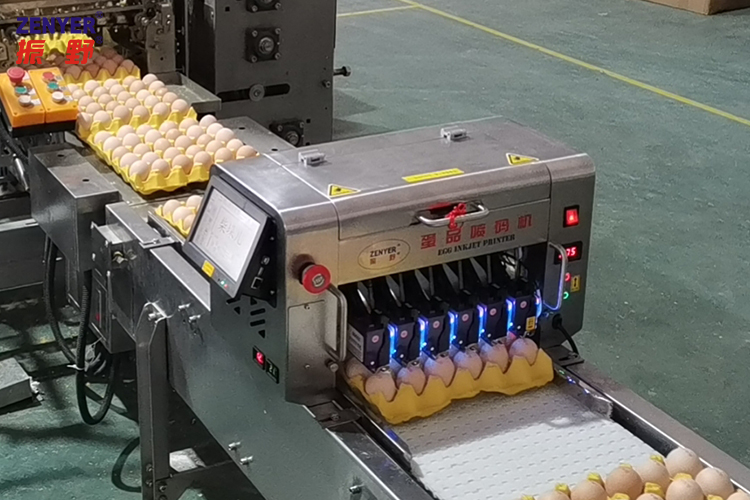

Egg printer(option)





For the ZENYER 713 egg farm packer: only $44,000.00
Price including GST

 (Pre-order)



Option:

-- The 406H Egg printer: Only $8,800.00

Price including GST

ZYZ-HD6 egg farm packer(713) Brochure
