Name：ZYL-JS3-DA6-4Z Egg Washing Grading Line (304A)
Product Code： 304A
Capacity： 30,000 eggs/hour
Function： Accumulating, candling, washing, drying, grading and auto packing
Details
Features:
-- Made of stainless steel for better durability, corrosion resistance and hygiene.
-- ZENYER 304A egg washing grading line consist of the Zenyer 204A egg washer and the Zenyer 109 egg grader,
and has a capacity of 30,000 eggs/hour.
-- Includes the egg accumulating, candling, orientating, sanitizing, brush washing and drying, head turning, egg
grading & counting, auto-packing and manual packing functions, as well as the optional automatic egg loader,
UV sterilization and egg printer.
-- The 204A egg washer is equipped a free standing control panel, and the 109 egg grader has a color touchscreen
control panel, the two are interlock controlled with each other for safety reasons.
-- Can be connected to a rod conveyor leading from the chicken shed or a Zenyer 615 automatic egg loader, both of
which makes egg loading more efficient.
-- This model of egg washer can satisfy any egg cleaning and drying requirements very well.
-- The auto-packer supports 10, 12, 15, 18, and 30 egg cartons/trays.
-- One auto-packer can pack only one size, the manual packing lane can pack a maximum of 2 sizes.
| Egg washing grading line | |
| Model | ZYL-JS3-DA6-4Z |
| Product code | 304A |
| Capacity | 30,000 eggs/hour |
| Accuracy | ±1 g |
| Grade | 4~7 |
| Power* | 39 KW |
| Voltage | 380-415V, 3-phase, 50HZ |
| Dimension (L*W*H) | 16.06*7.6*2 M |
| Net weight* | 3070 kg |
| Gross weight* | 4490 kg |
| Function | Accumulating, candling, orientating, sanitizing, egg washing, drying, head turning, grading, counting, auto packing and manual collection, optional automatic egg loader, UV sterilization and egg printer |
* Power, net weight and gross weight are calculated according to the floor plan below.

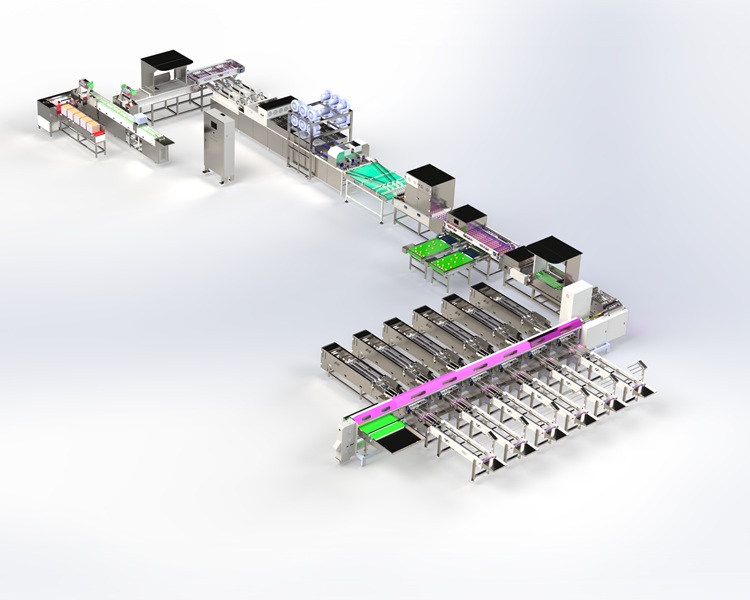

ZENYER 304A (consist of Zenyer 204A egg washer, Zenyer 109 egg grader and optional Zenyer 615 auto loader)

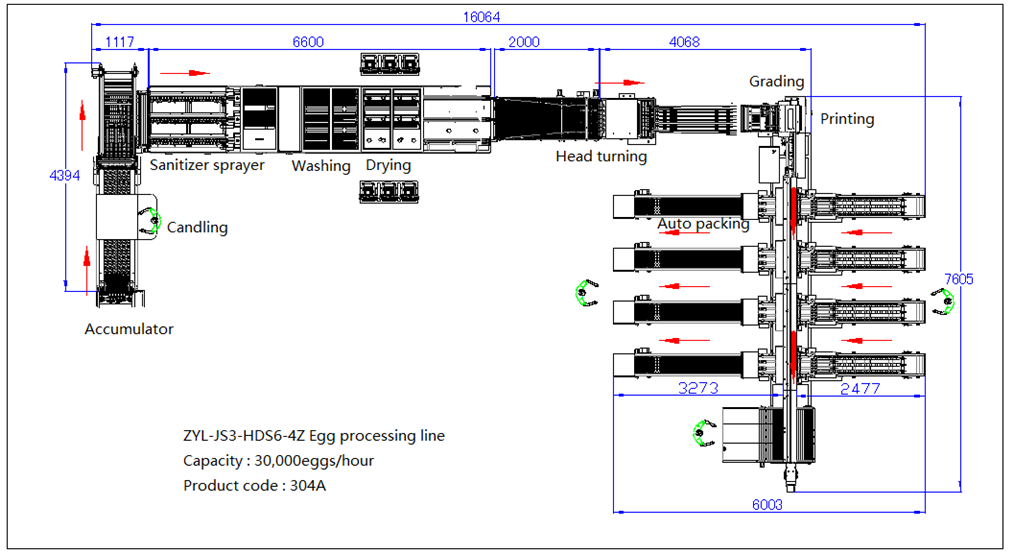

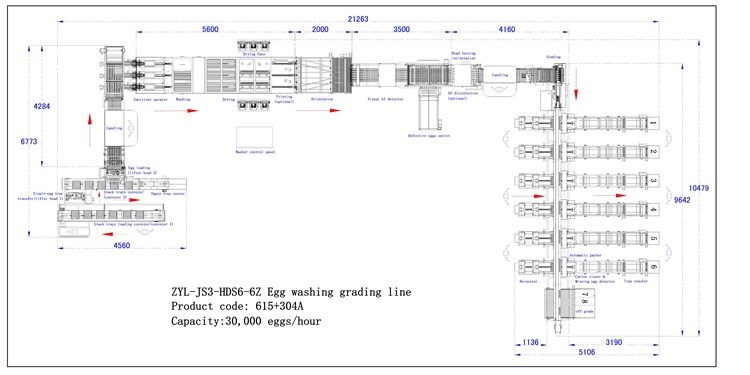

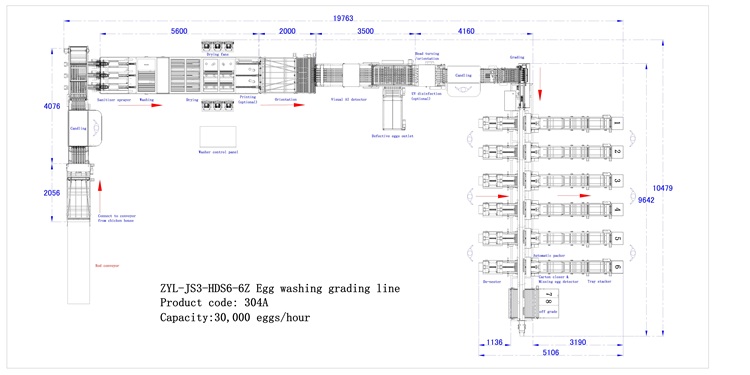

Floor plan
Zenyer 204A washer (module 1) with the Zenyer 615 auto egg loader
The Zenyer 615 auto loader paired with the machine
Automatic egg loader & accumulator (candler) & orienter (turn 6-row of eggs into 3 single row)

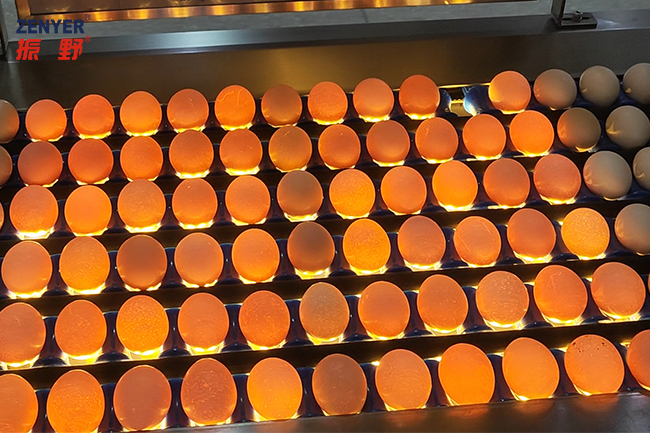

6-row candling booth

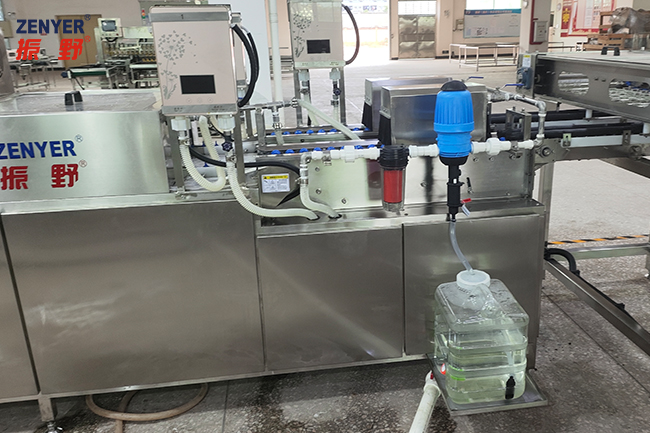

Proportional doser for sanitizing

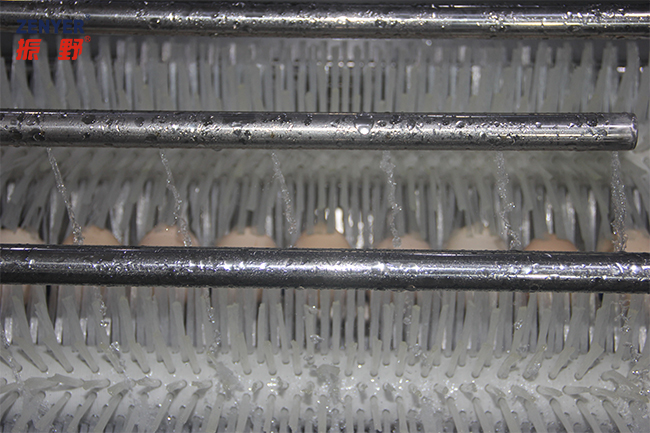

Egg washing with brushes and warm water
Remarkable Drying system
Control panel (Egg washer- module 1)

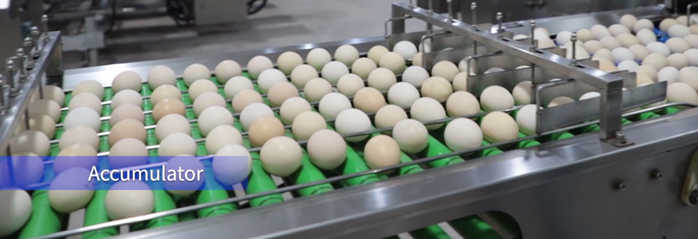

Accumulator

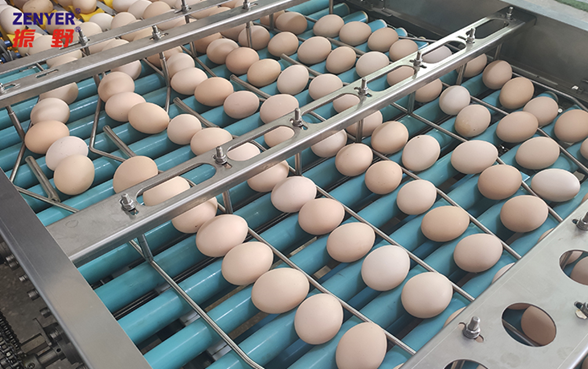

Head turning/orienter

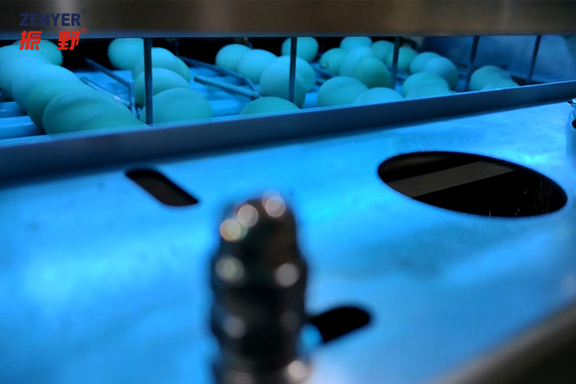

UV sterilization (optional)

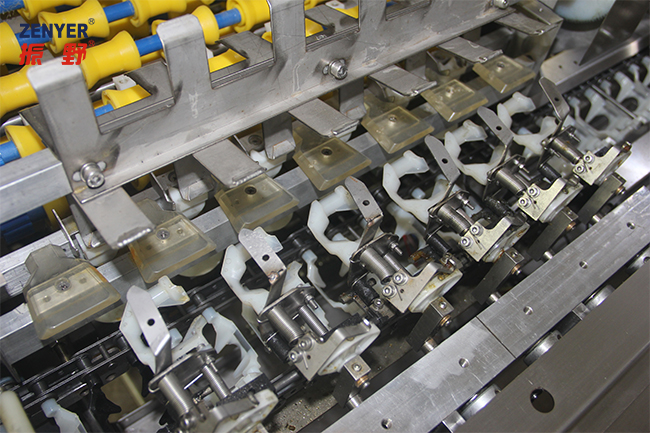

Electronic weighing
Manual empty tray loading
De-nester (optional)

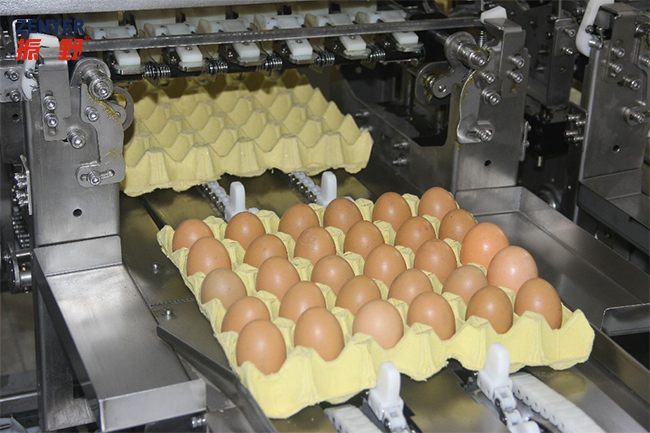

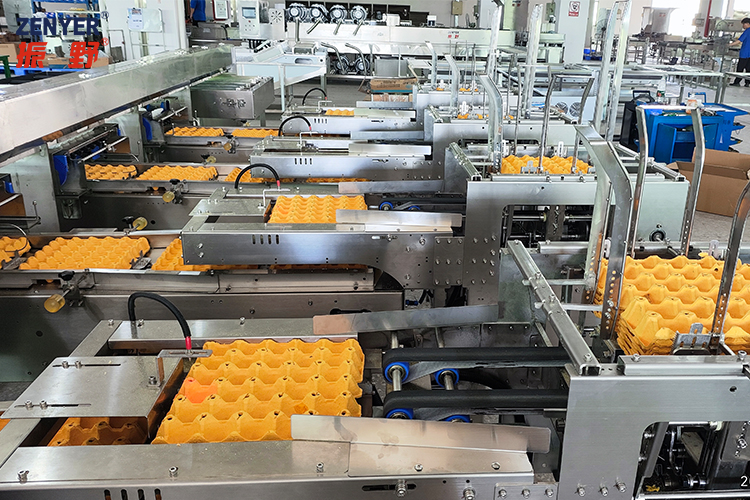

Auto packing

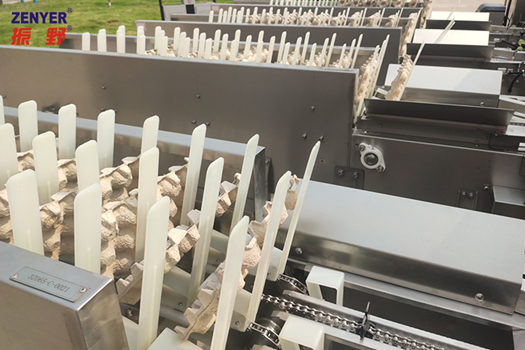

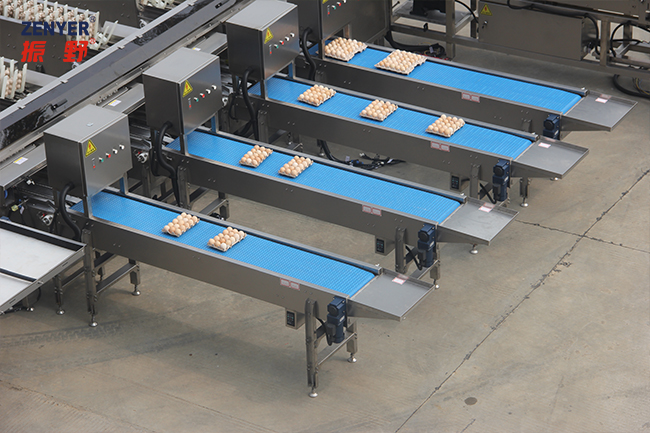

Loaded egg tray collection

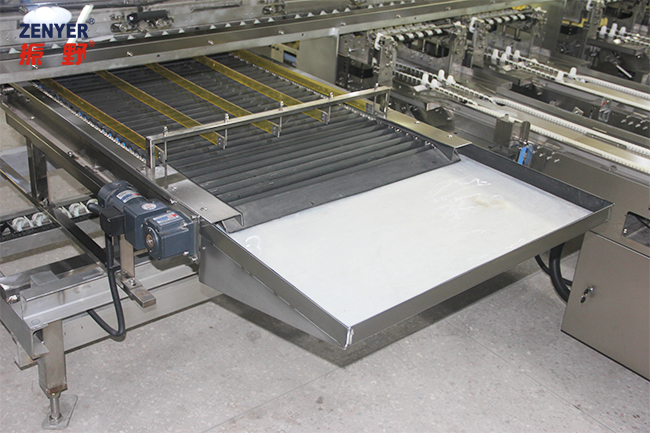

Manual collection table
Control panel (Egg grader-module 2)
Visual AI detector (optional)

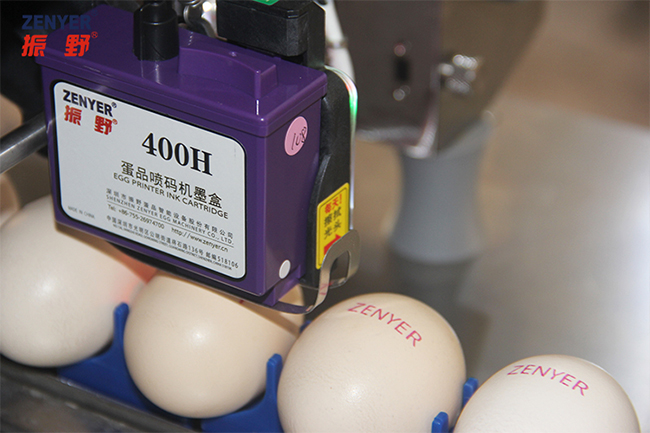

Egg printer (optional)
The Zenyer 615 automatic egg loader (optional) Price of ZENYER 304A egg washing grading line: $361,900.00
Consist of:
-- The 109 egg grader (auto-packer (4) + manual collection table (1))
(Pre-Order)
Optional:
-- The 615 automatic egg loader:
-- The 401H Egg printer: Only $6,050.00
-- UV disinfection: Only $1,100.00
-- The 430X Visual AI Detector: Only $121,000.00
-- De-nester: Only $16,500.00
Price including GST
ZYL-JS3-DA6-4Z Egg Washing Grading Line (304A) Brochure
