Egg Washing Grading

Name: ZYL-JS1-D1-P Egg Washing Grading Line (301AP)

Product Code: 301AP

Capacity: 5,000 eggs/hour

Function: washing, drying, grading and auto packing

Order online

You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more




Details



ZENYER 301AP Egg Washing & Grading Line – Features & Benefits

  • Strong Stainless Steel Construction
    Built from high-quality stainless steel for excellent durability, hygiene, and long service life, making it a reliable solution for commercial egg processing operations.

  • Integrated Washing & Grading Solution
    The ZENYER 301AP combines:

    • ZENYER 201A Egg Washer

    • ZENYER 102BP Egg Grader

    • Optional ZENYER 605AS Accumulator
      Together, they deliver a smooth and efficient washing and grading process with a capacity of 5,000 eggs per hour.

  • Comprehensive Functions
    Provides sanitizing, washing, drying, head turning, grading, counting, auto packing, and manual packing functions in a single system.
    Optional features include:

    • Accumulator (for improved egg flow)

    • Candler (LED inspection booth)

    • Vacuum Egg Lifter (for easier loading)

    • UV Sterilization (for food safety)

    • Egg Printer (for traceability)

    • Visual AI Detector (for automated defect detection)

  • User-Friendly Controls

    • The 201A Egg Washer features a free-standing control panel.

    • The 102BP Egg Grader is equipped with a color touchscreen PLC control system.
      Both are interlock-controlled for safe and synchronized operation.

  • Enhanced Candling Inspection
    The optional 605AS Accumulator features a candling booth with cover and mirror, allowing operators to manually remove cracked, dirty, or otherwise unqualified eggs before washing and grading.

  • Efficient, Low-Labor Operation
    Can be operated by as few as two people – one for loading and candling, and another for loading empty trays and collecting packed trays.

  • Flexible Packing Options

    • Auto-packer supports both 12-egg cartons and 30-egg trays.

    • Each auto-packer handles one egg size, while the manual collection table can pack up to two sizes simultaneously.

                                          Egg Washing Grading Line
 Model ZYL-JS1-D1-P
Product code 301AP
Capacity 5,000 eggs/hour
Power* 11.5 KW
Voltage* 380-415V, 3-phase, 50HZ
Dimension(L*W*H) 12.9*3.3*2 M
Net weight* 1550 kg
Gross weight* 2220 kg
Function Sanitizing, washing, drying, head turning, grading, counting,auto packing and manual collection, and optional accumulator, candler, UV, vacuum egg lifter and egg printer
* Power, net weight and gross weight are calculated according to the floor plan below.

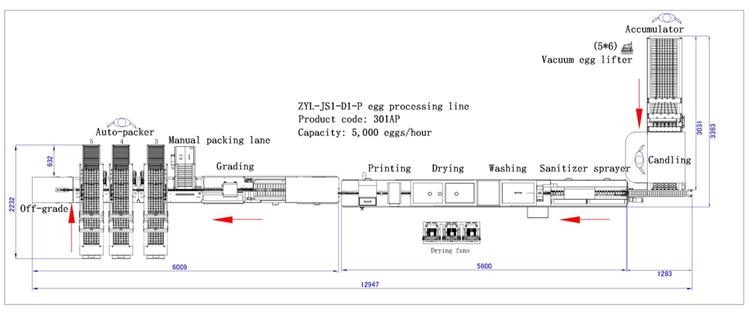

Floor plan

Proportional doser for sanitizing

Egg washing with brushes and warm water

Remarkable drying system


Control panel (Egg washer)

 Head turning/orienter & (optional UV sterilization)
Empty tray loading
Auto packing
Filled egg tray collection

Zenyer 605AS accumulator (optional)

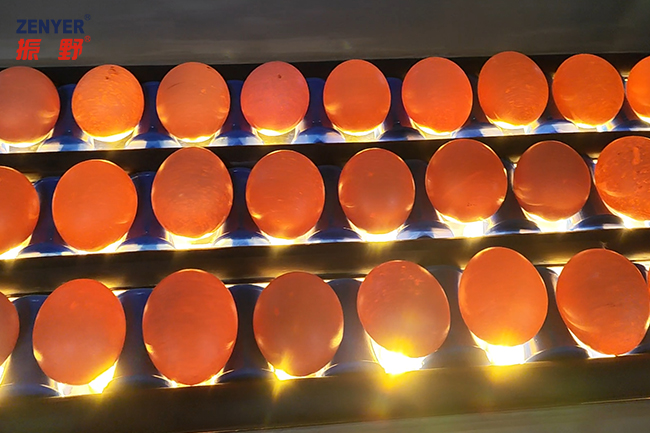

3-row candler with candling cover and mirror

Zenyer 602 vacuum egg lifter (optional)

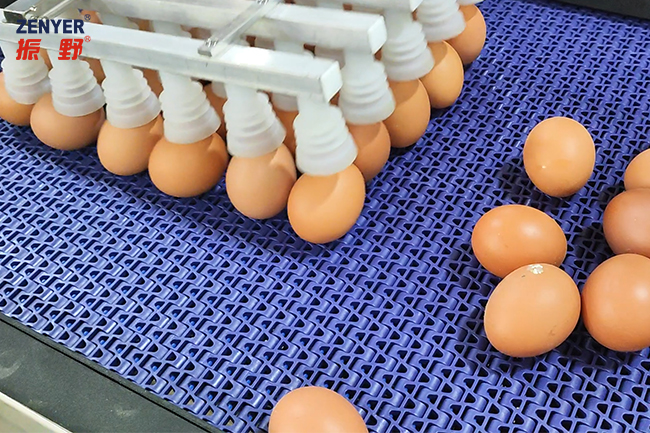

Loading 30 eggs per time on the accumulator via the Zenyer 602 vacuum egg lifter

Zenyer 401H egg printer (optional)

ZENYER Visual AI detector (optional)
Control panel (Egg grader)


Price of the ZENYER 301AP egg washing grading line: $129,800.00
Consist of:
-- The 605AS accumulator(3-row candler included)
-- The 201A egg washer
-- The 102BP egg grader main machine (Auto packer (3)+Manual collection table (1))




Optional:
--The 401H egg printer: Only $6,600.00
--The 602 Vacuum egg lifter: Only $2,750.00
-- UV disinfection: Only $1,100.00
-- The 400X Visual AI Detector: Only $41,800.00
-- Air compressor(3KW):: Only $2,750.00
(supply the air needed to run the Automatic Packer)

Price including GST
(Pre-order)





ZYL-JS1-D1-P Egg Washing Grading Line (301AP) Brochure
