Name：Robot palletizer
Product Code： 616
Capacity： 30,000 eggs/hour
Function： Robotic palletizing
Details
Manually place stacks of egg trays on the pallet can be time consuming and expensive. A robot palletizer is a machine which provides automatic means for stacking egg trays on a pallet.

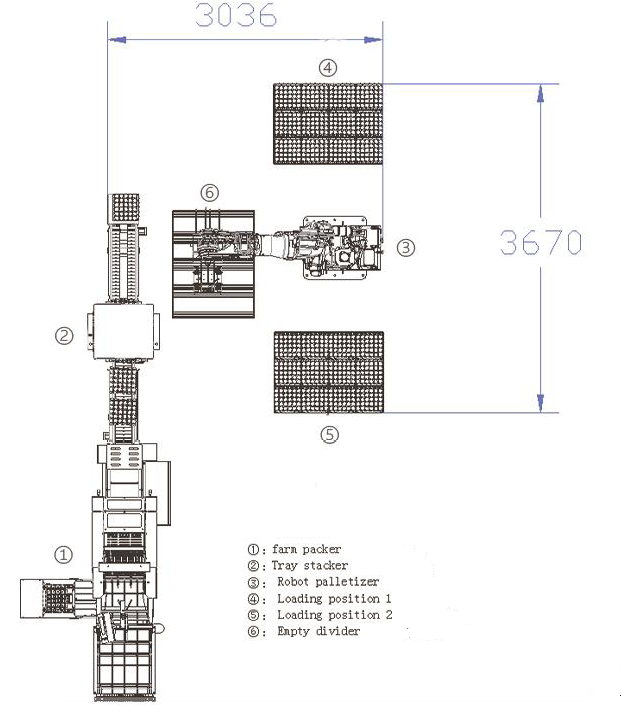

The ZENYER robot palletizer can be integrated into your Farm packer with Tray stacker.
Robotic arm picks up one stack of 6 trays per time from the conveyor of Farm packer and loads them onto a pallet, until a full layer of egg trays is configured to be placed on the pallet, then the robot arm picks up a divider and put it on the first layer, and repeats the process to configure the second layer until the layers is up to 5.
It can process both plastic and pulp trays, can stack on plastic pallets as well as timber pallets.
| Commodity | Robot palletizer |
| Product code | 616 |
| Capacity | 30,000 eggs/hour |
| Power | 7.5KW |
| Voltage | 380V, 50HZ, 3-phase |
| Layers on pallet | 5 layers |
| Loading position | 2 |
| Net weight | 1110KG |
| Working radius | 2600 mm |
| Working height | 0-3500 mm |
| Empty pallet placement | Manual |
| Empty divider placement | Automatic |
| Pick-up capacity | One stack of 6 trays |
