Name: ZYS-ZK-J30 Automatic Egg Loader (615)
Product Code: 615
Capacity: 30,000 eggs/hour
Function: Automatic egg loading, 30 eggs/time
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
Complete Automatic Egg Loading Solution
Includes a stack tray loading conveyor (Conveyor 1), two lifter heads, single tray conveyor (Conveyor 2), and an empty tray nester — providing a fully automated and seamless egg loading process.
Efficient Tray & Egg Handling
Operators manually place stacks of egg trays (up to 6 trays per stack) on Conveyor 1.
Lifter Head 1 lifts the entire tray of eggs (with tray) and places it onto Conveyor 2.
Lifter Head 2 lifts 30 eggs from the tray and loads them onto the roller conveyor of the egg grader.
Automatic Empty Tray Nesting
After eggs are removed, the empty tray is automatically transported to the tray nester for stacking, saving significant time and labor.
Stuck Egg Detection System
Equipped with a stuck egg detector on Conveyor 2 to check for eggs that were not successfully lifted.
If eggs remain on a tray, the system automatically diverts the tray to a separate collection point for manual inspection rather than stacking it — preventing damage or contamination.
User-Friendly Control System
Operated via a color touchscreen and physical buttons, allowing easy control and quick access to settings and diagnostics.
Features a self-diagnosis system to quickly identify and resolve potential malfunctions, minimizing downtime.
Gentle & Versatile Handling
Designed to handle both pulp and plastic trays without causing cracks or damage.
Can be flexibly integrated into new or existing egg grading systems to improve workflow efficiency.
Boosts Efficiency & Reduces Labor
Fully automates the tray unloading, egg loading, and empty tray stacking processes, reducing the need for manual handling and increasing overall productivity.
Remote Monitoring & Diagnostics (Wi-Fi Ready PLC Control System)
Supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet. In the event of software-related issues, our service team can access the system remotely (with customer permission) to quickly troubleshoot and resolve problems, helping minimize downtime and maintain continuous, efficient operation.
| Model | ZYS-ZK-J30 |
| Product code | 615 |
| Capacity | 30,000 eggs/hour |
| Main material | Stainless steel |
| Power | 8.44 KW |
| Voltage |
380~415V, 3 phase, 50HZ |
| People | 1 |
| Dimension（L*W*H） | 4.47*2.33*2 M |
| Function | Automatic egg loading and empty tray nesting |
Zenyer 615 automatic egg loader

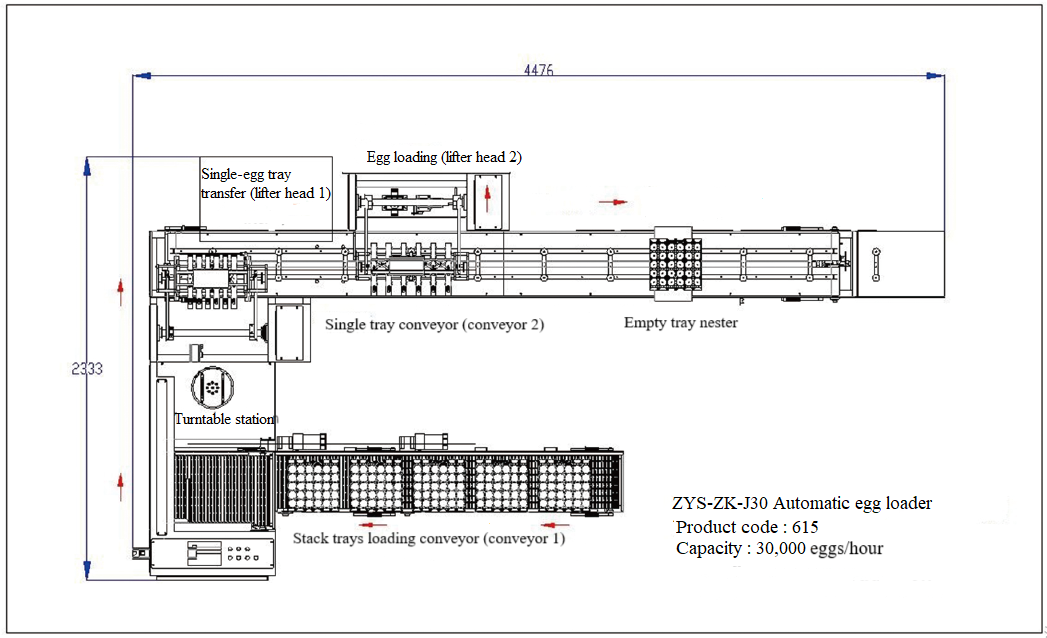

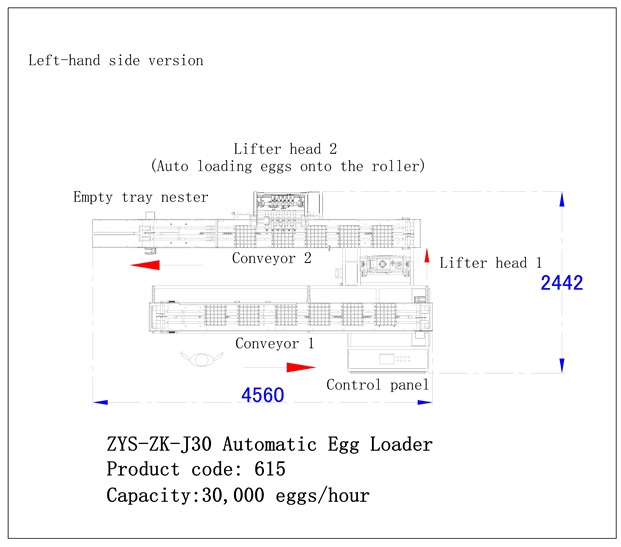

Floor plan (left-hand side version)
Price of ZENYER 615 automatic egg loader: Only $66,000.00
Optional:
-- Air compressor (3KW): Only $2,750.00
(supply the air needed to run the Automatic Loader)
Price including GST
(Pre-order)
ZYS-ZK-J30 Automatic Egg Loader (615) Brochure
