Function： Accumulating, candling, grading, auto packing and manual collection
Details
The ZENYER FBD170 egg grader (product code:111) has a capacity of 60,000 eggs/hour, it includes the egg accumulating, orientation, candling, grading & counting and automatic packing functions, you can also add the optional automatic egg loader, UV sterilization, egg printer or visual AI detector function. The Zenyer 111 egg grader has a control panel with color touchscreen and physical buttons to allow for easy control of the machine and access to the system.
Features:
-- Made of strong stainless steel for great durability and hygiene.
-- Includes the egg accumulating, candling, orientation, grading & counting and auto packing functions all in one machine with a capacity of 60,000 eggs/hour.
-- This model of egg grader is features a color touchscreen and PLC control system with a self-diagnosis function.
-- Ideally, connect to the Zenyer 615 automatic egg loader, which makes egg loading easier and efficient. Eggs will be loaded onto the roller of the egg grader automatically.
-- Eggs are transported to the candling section. You can check for any leaking, dirty, cracked eggs through LED lights by sight, and remove them manually. There is also a candling cover and mirror for better candling results. -- The optional UV disinfection sanitizes the egg shell for maximum food security. -- Orientation makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-- Eggs are weighed electronically and graded into 4~7 grades with an accuracy of within ±1g.
-- It has a counting function as well, you can check how many eggs of each grade and total output have been processed. -- Empty cartons/trays need to be loaded onto the empty tray conveyor manually, the conveyor will transport the cartons/trays to where the eggs will drop from. -- Or you can choose auto tray de-nester to denesting the empty trays and send them to where the eggs will drop from. -- There are 8 auto-packers shown on the floor plan, you can add more auto packers according to your situation.
-- The auto packer supports 10, 12, 15, 18, and 30 egg cartons/trays. -- Aside from the sizes of eggs which are managed by the auto packer, other grades of eggs will drop off onto the off-grade table, the table can be split into 2~3 sections to accommodate 2~3 egg sizes if needed.
Model
FBD170-8
Product code
111
Capacity
60,000 eggs/hour
Accuracy
±1g
Grade
4~ 7
Power
13.36 KW
Voltage*
220~240V, single phase, 50HZ
Or
380~415V, 3-phase, 50HZ
People
7~8
Dimensions（L*W*H）
12.05*9.47*2 M
Function
Egg accumulating, orientation, candling, grading & counting and automatic packing, and optional automatic egg loader, UV sterilization, egg printer and visual AI egg detector

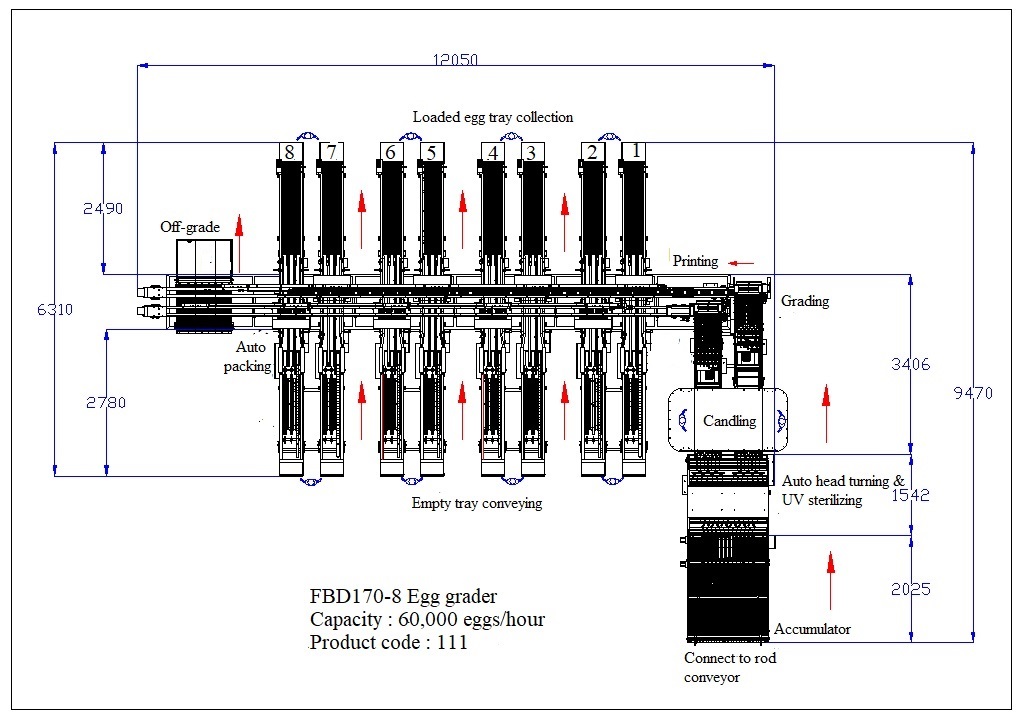

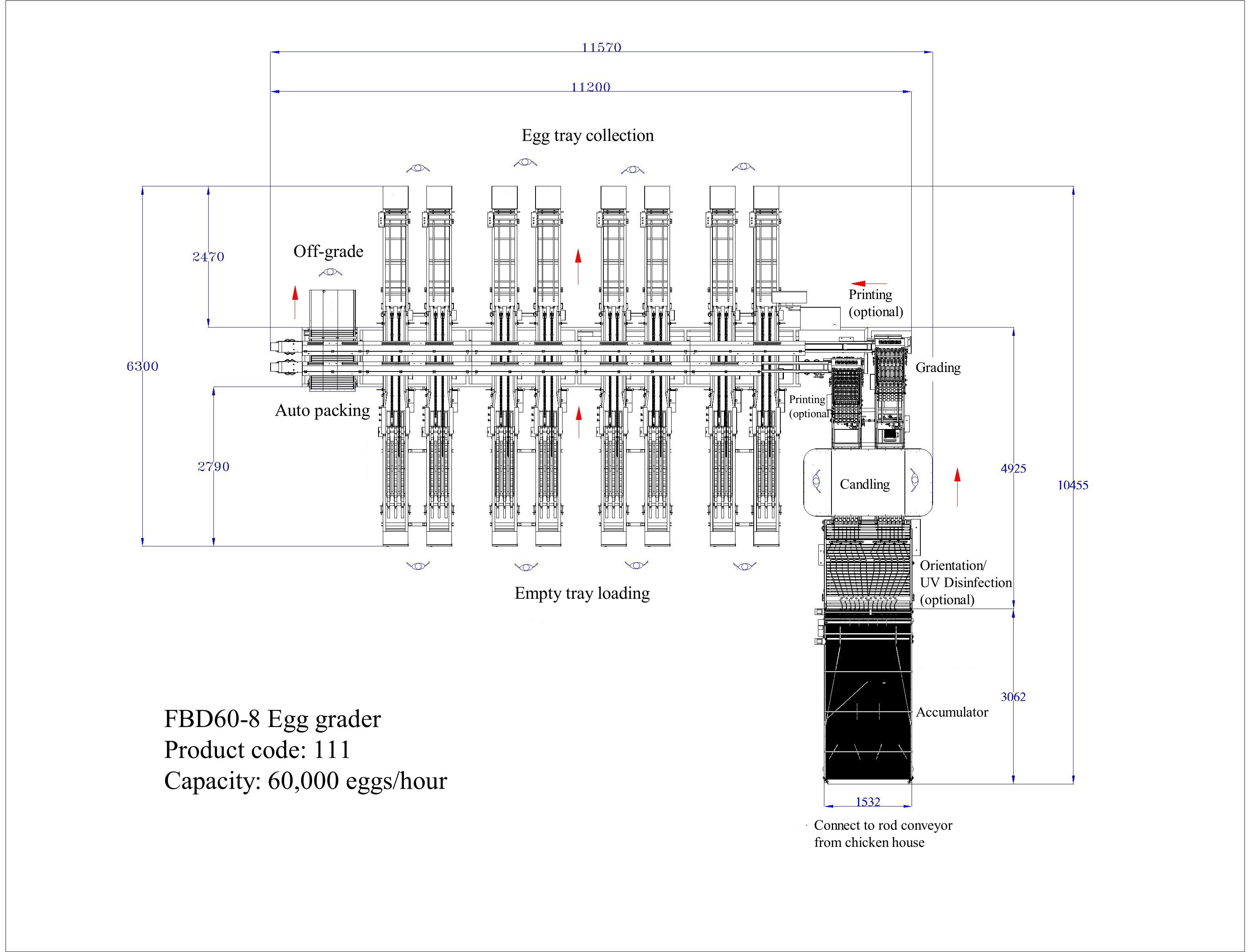

Floor plan
Accumulator
Orienter
UV sterilization (optional)
6-row candling booth
Electronic weighing
Manual empty tray loading
De-nester (optional)
Auto packing
Loaded egg tray collection
Manual packing & Off-grade table
Visual AI detector (optional)
Egg printer (optional)
Zenyer 615A double head automatic egg loader (optional)
