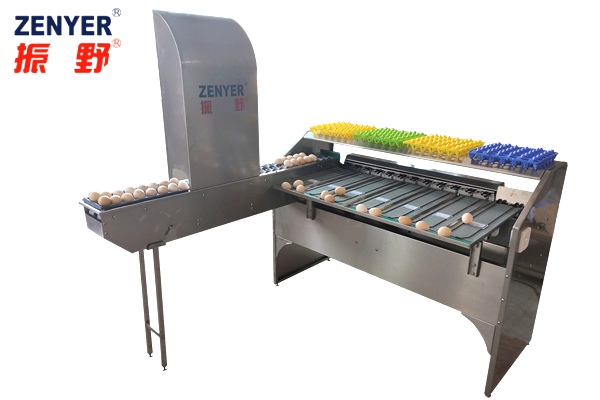

Name:ZYF-J2-L Egg grader (101B)
Product Code: 101B
Capacity: 4,000 eggs/hour
Function: Egg grading, candling
Details
Features:
-- Made of stainless steel for greater durability.
-- Can sort eggs into 7 grades with an accuracy of within ±1 gram and a capacity of 4,000 eggs/hour.
-- Includes egg grading & candling, optional egg printer and vacuum egg lifter.
-- Allows the user to check for any cracked, dirty or otherwise unqualified eggs through LED lights and pick
them out manually. The candling booth includes a candling cover and mirror to enforce the candling results.
-- The candling cover can be faced inwards or outwards (see pictures below).
-- Can be attached with the ZENYER 200A egg washer, the 604A accumulator and an optional egg printer to
assemble a ZENYER 300A egg processing line with a capacity of 3,000 eggs/hour.
Egg grader |
|
Model |
ZYF-J2-L |
Product code |
101B |
Capacity |
4,000 eggs/hour |
Grading accuracy |
±1 gram |
Grades |
7 |
Power |
218W, 3.6A |
Voltage |
220-240V, single phase, |

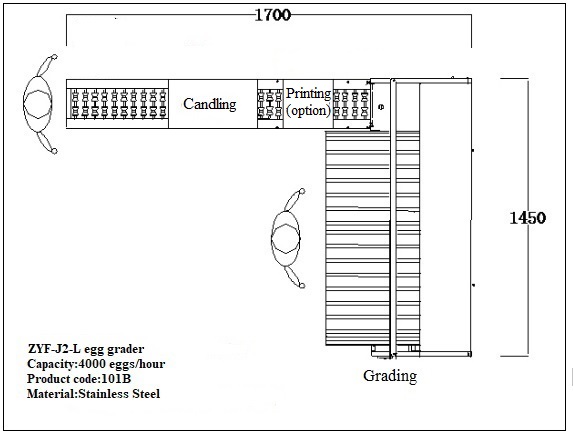

Dimension (L* W* H) |
1.7*1.45*1.8 M |
Net weight |
180 kg |
Gross weight |
260 kg |
Function |
Egg grading & candling |
The candling cover can face both inside or outside.
The feeding roller on the LEFT hand side (see above)

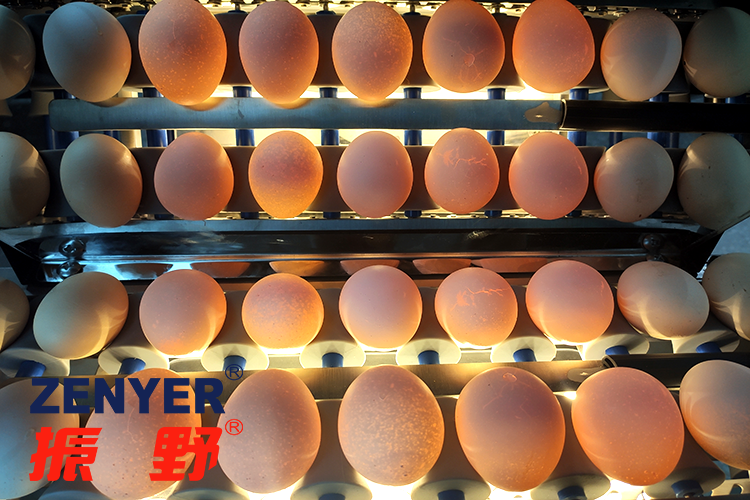

The 2-row LED candler with a candling cover and mirror

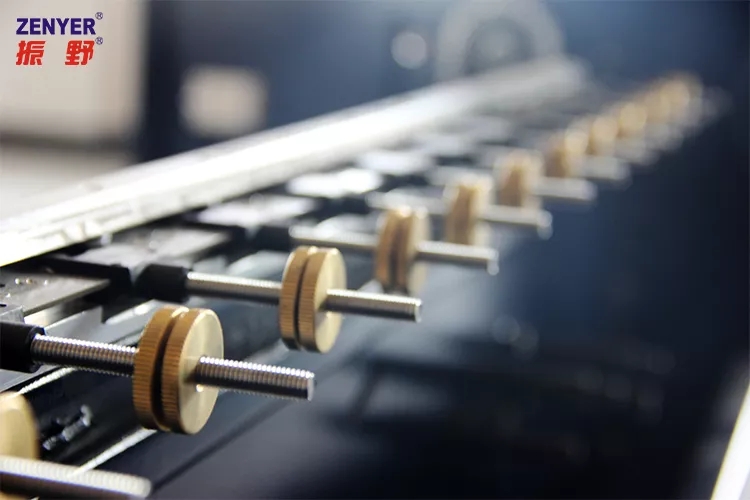

Egg weighing system

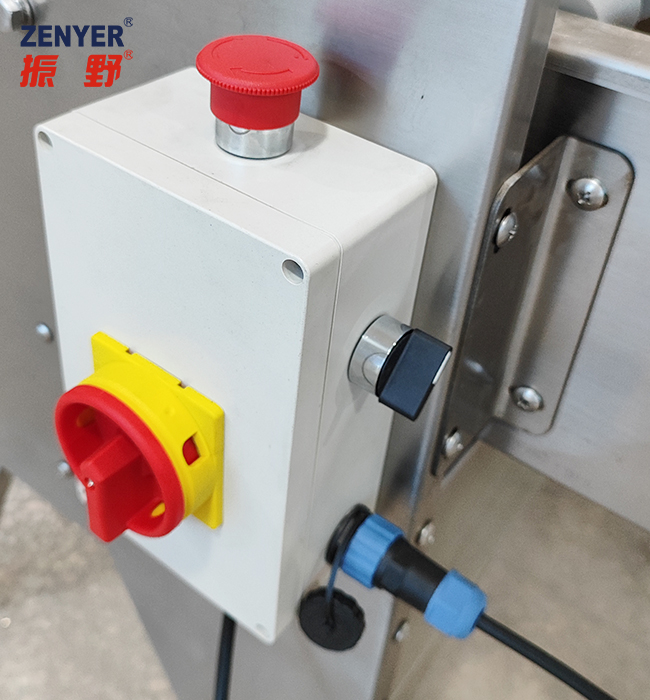

Power switches
The ZENYER 402H egg printer (optional)
ZENYER 604A accumulator used with the 101B egg grader
(Through the 604A accumulator, eggs are divided into 2 lines and transferred into the 2-row feeding roller of the 101B egg grader automatically)
Price of ZENYER 101B egg grader (LED candler included): Only $8,030.00
Optional:
-- The 602 Vacuum egg lifter: Only $2,200.00
-- The 604A accumulator: Only $2,750.00
-- The 402H Egg printer: Only $6,050.00
Price includes GST
(In stock)
ZYF-J2-L Egg grader (101B) Brochure
